To select another date:
1. Use ← → to highlight month, day or year, then press
2. Use ↑ ↓ to select the desired month, day or year and press
To clear the information screen, press
Tide Information
NauticPath
represented at large zoom ranges by a box icon with
the letter "T." These icons will appear when you are
zoomed in to a 6-mile range. The icon stands for a
Tidal Station location. An example is displayed at right.
When you zoom in to a sufficiently small zoom range (0.8 nautical
mile), the icon becomes an animated gauge showing a rising or falling
tidal height for the selected station at the present time. At larger zoom
ranges, you can select the boxed "T" icon and it becomes an animated
gauge with a pop-up name box. The name box disappears seconds.
Cursor
lines

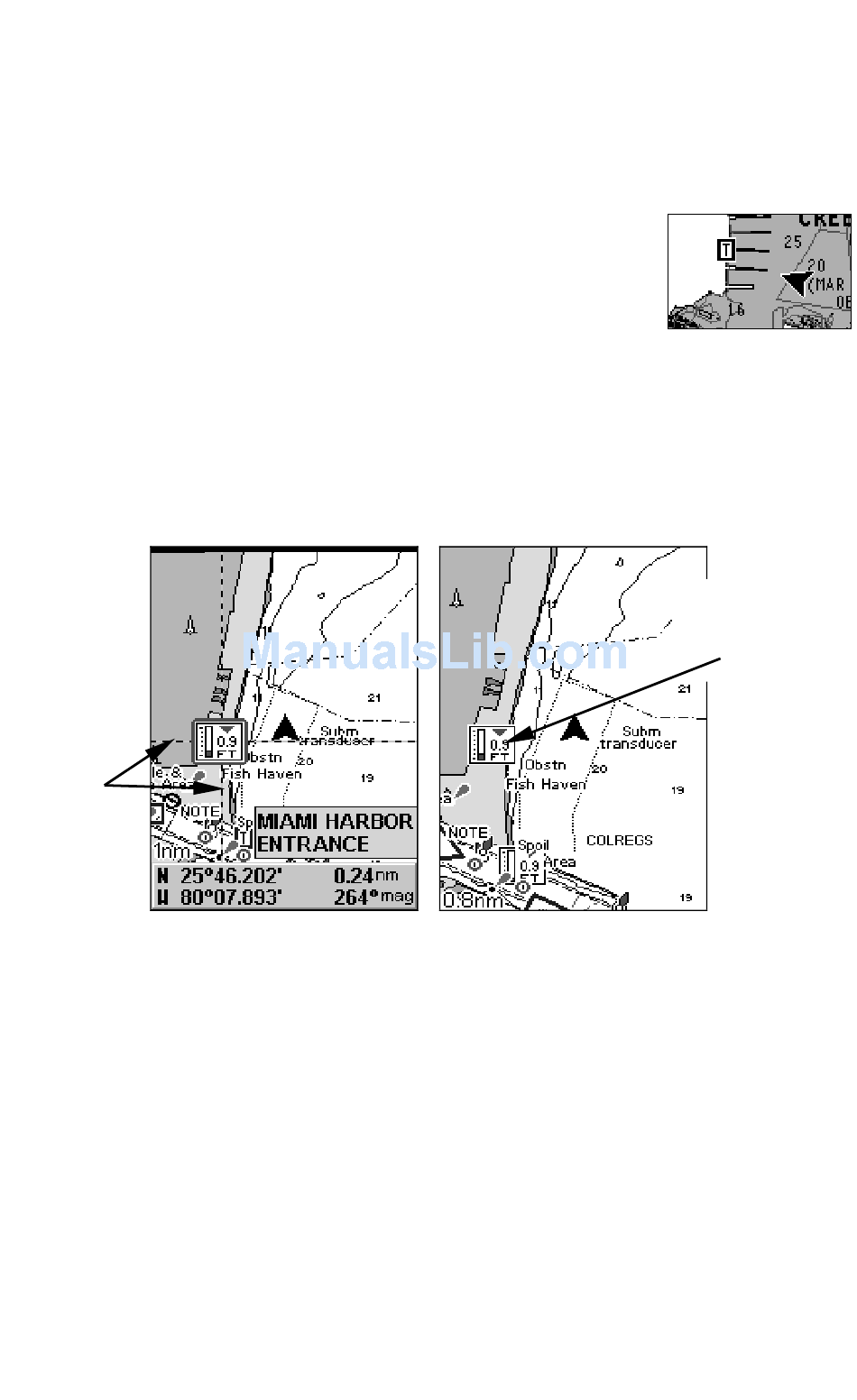

NauticPath chart showing Tide Station icon selected by cursor (left).
Icon animates automatically without selection at the 0.8-mile zoom
range (right). In the example above, the tide is at 0.9 feet and falling,
as shown by the down arrow at the top of the icon.
To view tide information:
1. Use the arrow keys to move the cursor over a tide station icon. When
it is selected, a pop-up name box appears.
2. Press to display the Tide Information screen.
WPT
charts contain
.
EXIT
Tidal Information,
86
.
ENT
.
ENT
Tide Station
icon in ani-
mated mode
