Figure 1.
Figure 2.
Figure 4.
Figure 3.

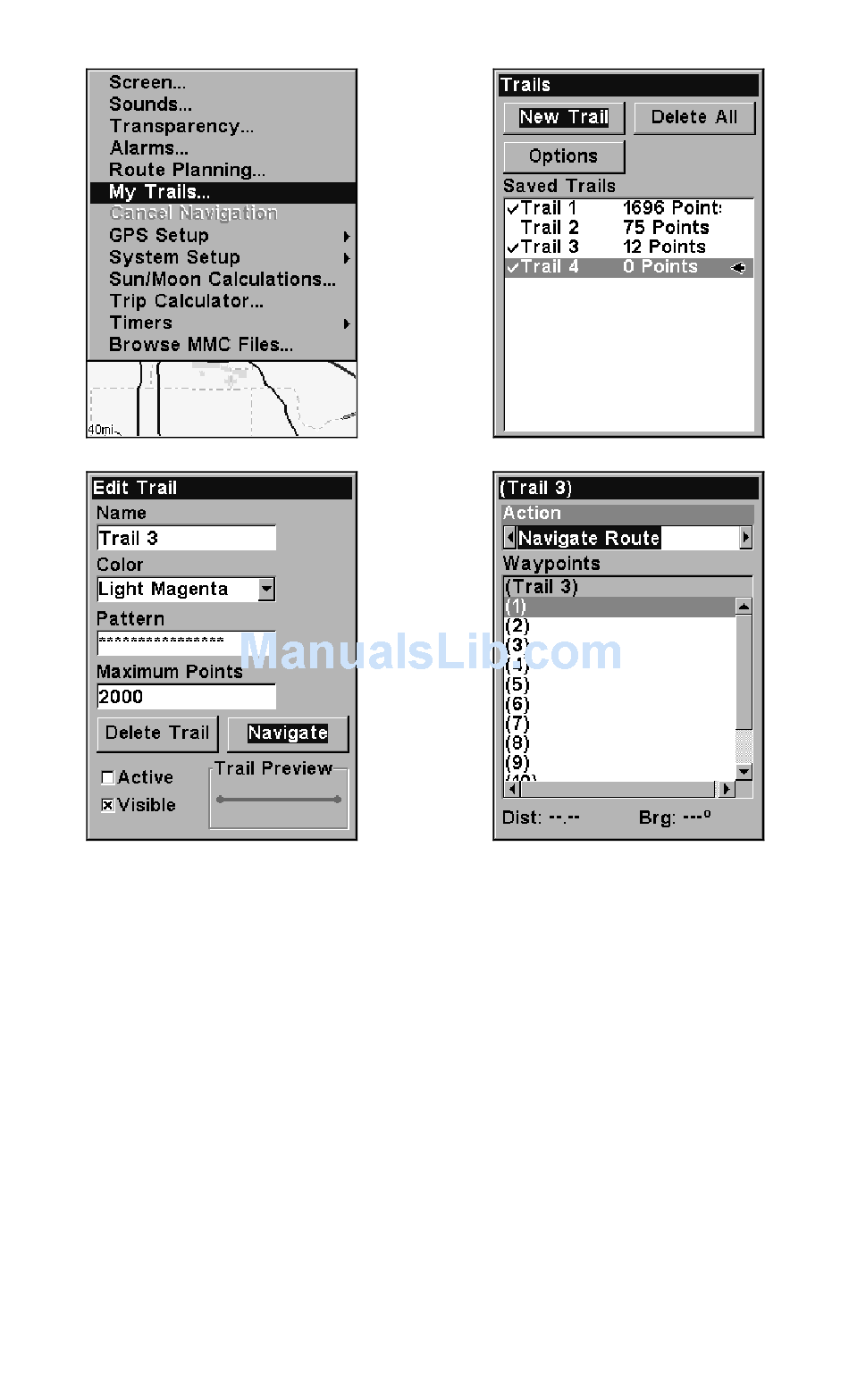

Navigate a trail menu sequence: Fig. 1, My Trails command. Fig. 2,
Trails Menu. Fig. 3, Edit Trail Menu. Fig. 4, Edit Route Menu with
Navigate Route command highlighted for Trail 1. A trail is always con-
verted to a "route" when you navigate the trail.
On the Map Page, the trail you are navigating is represented by a ma-
genta line − if the visible trail option is on. The course you are following
(the trail converted to a route) is represented by a red line. The magenta
trail line overlays the red course line. To see the red course line, you
much turn off the visible trail option. The Navigation Page will show
only the red course line, unless you are recording a new trail. The bear-
ing arrow on the compass rose points to the next waypoint on the trail.
As you travel, the arrival alarm will go off when you near a trail way-
point, and the bearing arrow on the compass rose will swing around
and point to the next trail waypoint. Press to clear the alarm.
EXIT
49
