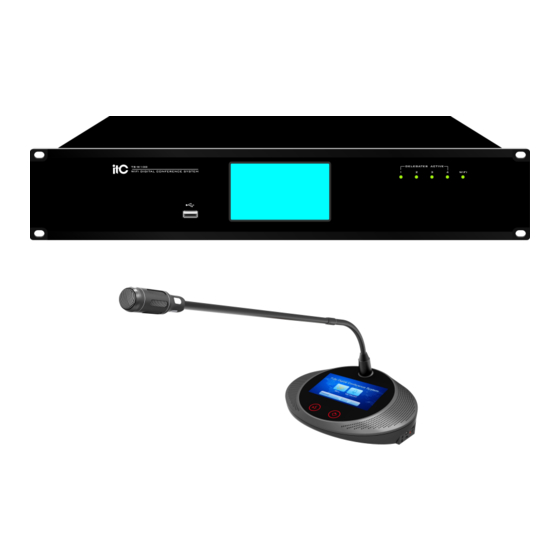

Digital Wi-Fi Conference System
User Manual
TS-W100
TS-W101/W101A
Before using this system, please read this manual carefully

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-W100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITC TS-W100

Summary of Contents for ITC TS-W100

  • Page 1 Digital Wi-Fi Conference System User Manual TS-W100 TS-W101/W101A Before using this system, please read this manual carefully...
  • Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
  • Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes above 2000 meters. Precautions 1.
  • Page 4 5. Agreement Please strictly follow the instructions in this manual. The software, hardware and appearance of this product will be upgraded and updated continually. The above changes will be made without notice. Non-professional maintenance personnel, do not remove the product, to avoid damage and electric shock.

  • Page 5: Table Of Contents

    CONTENTS 1. System profile............................8 2. Product description..........................8 2.1 TS-W100 F WIFI ...........8 ULL DIGITAL CONFERENCE SYSTEM CONTROLLER 2.2 TS-W101/TS-W101A W ......12 IRELESS CONFERENCE HAIRMAN UNIT ELEGATE UNIT 3. System connection diagram........................15 4. Instructions............................. 16 4.1 TS-W100 F ................16...
  • Page 6 4.2.16 Controller offline detection...................... 36 4.2.17 WIFI SSID and password modification..................36 4.2.18 Repeat ID detection........................36 4.2.19 Edit ID............................37 4.2.20 Timing speech and speech timekeeping for delegate unit............37 4.2.21 Indicator for headphone input / battery charge input / battery state / WIFI Signal Strength... 38 4.2.22 Short message...........................
  • Page 7 Full digital WIFI conference system...

  • Page 8: System Profile

    1. System profile The TS-W10 series full digital WIFI conference system adopts ITC original independent intellectual property rights of network communication and digital transmission processing technology. This system applies digital technology and network technology, and perfect combination of WIFI and wired full digital technology to make a breakthrough on conference filed.
  • Page 9 With original digital processing and transmission technology, 48K sampling rate and uncompressed audio transmission with 20 Hz~20 kHz. Adopts CAT5 shielding line to ensure the reliable transmission of long-distance information conference to ensure the perfect sound quality. With WiFi network interface, connected to the POE network switch to expand wireless AP quantity, and to provide much wider WIFI coverage With manual / automatic ID setting function, convenience for quick layout of conference.
  • Page 10 Products Features: 1. The power switch and the power input socket, support AC 110V~240V input 2. DELEGATES 1~4— use to connect conference units 3. Connect with the expansion controller, can realize controller connect“hand in hand”in series 4. Short circuit trigger fire alarm interface 5.
  • Page 11 Specification: Model TS-W100 Microphone Capacity ≤4096 Channel Quantity 64CH Frequency Response 20Hz~ 20KHz >85 dB(A) Dynamic Range >80 dB <0.05% Power supply 90~132VAC/180~264VAC by switch Audio Input LINE IN 1: 350mV balanced LINE IN 2: 350mV unbalanced Audio Output LINE OUT 1: 1V balanced...

  • Page 12: Ts-W101/Ts-W101A Wireless Conference Chairman Unit/Delegate Unit

    2.2 TS-W101/TS-W101A Wireless conference Chairman unit/Delegate unit Features: 1. The microphone adopt 48KHZ sampling rate, higher than the CD sound quality, the voice is clear and bright. Internal DSP audio processing, there is no low frequency sound. 2. Support timekeeping of speech and timing of speech function. Delegate unit has applied for speech function, the chairman unit can approve the applicant.
  • Page 13 Product Features: ② ③ ① ④ ⑤ ⑥ ⑦ ⑧ 4.3 inch capacitive touch screen The Chairman unit microphone button (touch type) The Chairman unit microphone priority button (touch type) The delegate unit microphone button (touch type) Headphone jack USB interface Charging indicator light Power switch Button...
  • Page 14 Specification： Mode TS-W101/TS-W101A Mic Type Heart-oriented directional electret Frequency Response 80Hz~16KHz Microphone input impedance 1KΩ Sensitivity -46dBV/Pa Maximum SPL 100dB(THD>3%) >80dB(A) Crosstalk >70dB Dynamic Range >80dB <0.1% Maximum power consumption Headphone load >16Ω Headphone volume Max 40mW Headphone interface 3.5mm Mono jacks Standards IEC60914 Power supply...

  • Page 15: System Connection Diagram

    3. System connection diagram...

  • Page 16: Instructions

    4. Instructions 4.1 TS-W100 Function Operating Instructions 4.1.1 Wired conference management Enter from the conference mode of main interface, then select the wired mode, can enter into the wired mic management mode. Total 4 Mic modes, can switch to choose one according to the requirements.
  • Page 17 4.1.1.2 NORMAL Model ①NORMAL delegate units working management Waiting mechanism: when number of working mic unit is N, turn on more delegate units will enter into waiting status, the max number of waiting will be N. delegate units which is waiting can be dropped out the waiting status if press “ON”...

  • Page 18: Wifi Conference Management

    Automatic revocation mechanism: when the delegate enter into the applying status, if the chairman unit didn’t agree after 15S, then applying will be autorollback and exit applying status. ②APPLY chairman units working management Preemption Mechanism: when number of opened mic is not exceed N, open the Chairman unit can squeeze out the delegate unit.(close the first delegate unit, then open the current mic unit).
  • Page 19 squeeze out the first opened delegate and close its microphone.). Opened microphone quantity cannot be added hint: chairman units have no FIFO mode, when the total quantity reaches N and all of them are chairman units, it would show “Opened microphones cannot be added”, if users open a new chairman unit.

  • Page 20: Id Setting

    4.1.2.4 Apply Mode ①APPLY Delegate microphone open management Apply mode: Press delegate microphone key to apply opening its microphone, then the button 3 of chairman unit would flash and screen would show “delegate apply opening its microphone”. Press button 3 to “Agree” opening the delegate’s microphone. The max delegate number of applying quantity is N, If over N, it would show “the applying microphones cannot be added”.

  • Page 21: System Status

    4.1.4 System Status Click “System Status” in the main menu to enter into system status interface. The operator can check the quantity of online discussion units and their categories. If the current system has chairman units, delegate units and interpreter units, the operator can check the changing status by pulling out and plugging in the chairman and delegate units (the time of the controller to detect the plug-in and plug-out is 1 minute max in system idle status.
  • Page 22 4.1.5.2 Display Setting Click +/- to increase or decrease the brightness. And the operator can also adjust the brightness by sliding the slider by hand. The brightness value can be adjusted from 1 to 64. 4.1.5.3 Volume Adjustment The connection way of hardware: connect the external audio source device into LINE IN 1/2 interface, and the audio is output to power amplifier and speakers via LINE OUT 1/2 interface.
  • Page 23 4.1.5.5 Local IP Address Click “Local IP Address” to check the local IP address, gateway, subnet mask and port number. 4.1.5.6 ID Setting Mode Click “ID Setting Mode” to choose the automatic and manual mode of wired units. 4.1.5.7 Turn Off the WIFI Units Click “Turn Off the WIFI Units”...

  • Page 24: Recording

    4.1.6 Recording Click “Recording” in the main menu. Then the operator can play the BGM or record the mixing sound in LINE IN and MIC, if the USB was plugged in. If no USB plugged in, the system will prompt “Please plug in the USB”. If USB was plugged in, the interface will display the USB icon, You can play background music and recording.

  • Page 25: Fire Alarm

    232 mode --- the user can connect the conference host CONTROL SYSTEM interface by Camera factory configuration 232 cable,then it can operate the camera same as the 422 mode. The CONTROL SYSTEM interface connect to the camera tracking host TS-0690 the CONTROL interface through the 232 cable, and then track the host CAMERA NET T / R +, T / R- two interface connected to the camera's 3.4 interface, then it can control VISCA / PELCD-D protocol camera like above.
  • Page 26 4.1.9.2 Extension host The EXTENSION port behind the host to connect the extension host, it can use its normal function when external connect TS-0205, cascading TS-0206. 4.1.9.3 COM port usage COM port of Host rear panel connect to the TS-0698 camera tracking host. 4.1.9.4 485 interface usage 485 interface of host rear panel connect to a camera.

  • Page 27: Ts-W101/W101A Operation Instruction

    4.2 TS-W101/W101A Operation instruction 4.2.1 Boot and start Turn on the host power to start the conference system, unit screen display "System Loading ...", start page as follows: Turn on the system, the touch screen display LOGO interface, Turn on microphone,priority,service function are temporarily expire, and click the relevant button prompting"wait for network connection, please wait";because it still has not connected to the network,the upper right corner signal strength shows Gray, the connection time is 45S,you can operate before it connects successfully.Channel: It...

  • Page 28: Delegate Unit Type

    4.2.2 Delegate unit type The chairman unit is with the microphone and the priority buttons, the touch screen built in many operations, such as turn on the microphone, turn off all delegate units, Chinese and English language switch, volume adjustment, brightness adjustment and so on. The delegate unit is with the microphone button only, but without the priority button, the touch screen built in many operations, such as turn on the microphone, Chinese and English language switch, volume adjustment, brightness adjustment and so on.

  • Page 29: Sign In

    When the number of applicants is full, it hints the delegate units are full. In NOMAL mode, if the number of into the waiting state, delegate units is full, it will enter if the number of waiting delegates is full, it shows "microphone full". Press the priority button for chairman unit to close all delegate units, and the chairman unit opens delegate unit as follows: 4.2.4 Sign in...

  • Page 30: Voting

    Press the sign in button on the screen or press the microphone button, to start sign in, after sign in the indicator is always on, and it display as follows: Voting 4.2.5 Wired chairman unit can initiate a fixed option of 3-button voting; PC software can initiate a fixed option of 3-button voting, 5- button election, 5- button rating, and user-defined options 2/3/4/5 button election.
  • Page 31 Fixed option 5- button election, press the corresponding button for election. The Bellowed is fixed option 5- button rating process. Fixed option 5- button rating, press the corresponding button for rating. The bellowed is user-defined options 2/3/4/5 buttons election process.

  • Page 32: Fire Alarm

    The user-defined options 2/3/4/5 buttons election, press the corresponding button for election. 4.2.6 Fire Alarm When the controller sends a fire alarm message, the unit screen will prompt "fire caution”, the microphone red light will flash until the controller cancel the fire alarm, and the unit will recover to normal state before alarm.

  • Page 33: System Settings

    4.2.8 System settings Enter the system settings page, as shown below, there are language setting and system status query. 4.2.9 Language setting Click the language setting button to enter the Chinese and English switch page, auto save up in case of power down, as follows: 4.2.10 System status interface Click the system status button to enter and query the system status, as follows;...

  • Page 34: Volume Adjustment

    4.2.11 Volume adjustment Click the volume button to enter the volume adjustment page; volume adjustment from level 0 to 16. 0 is muted, 16 is the maximum volume, auto saves up in case of power down. 4.2.12 Screen brightness adjustment Click the brightness adjustment button and enter the menu to adjust the brightness of the machine, brightness adjustable range from 1 to 64, 64 is the maximum brightness, auto saves up in case of power down.

  • Page 35: Speaker Headphone

    After the application is selected, the software will prompt whether to send out, yes is to send, otherwise return. After sending the application, there will be corresponding prompt on the PC side and the unit. 4.2.14 Speaker headphone Insert and speak with the headset microphone, when the headphone is inserted, the microphone fail to work and the speaker will be muted, the sound output from the headphone instead.

  • Page 36: Controller Offline Detection

    4.2.16 Controller offline detection When network is disconnected or the controller power off for about 60 seconds, W101 / W101A will pop up the following dialog box. If the controller recovers to normal work, then it will return to the main page. 4.2.17 WIFI SSID and password modification In the boot state, connect the wireless unit’s USB port to PC, and then modify the software by SSID , after modification, the wireless unit will prompt the following page, then auto shut after 2...

  • Page 37: Edit Id

    4.2.19 Edit ID After pressing buttons and it enter into ID editing mode, and when you press the setting button or press the microphone button, to start ID editing. 4.2.20 Timing speech and speech timekeeping for delegate unit Timing speech and speech timekeeping for delegate unit is controlled or switched by the conference PC software, referring to the PC manual.

  • Page 38: Indicator For Headphone Input / Battery Charge Input / Battery State / Wifi Signal Strength

    unit will display the speech time. 4.2.21 Indicator for headphone input / battery charge input / battery state / WIFI Signal Strength WIFI signal strength, totally 4 cells white, gray is for no signal: Battery state, 4 cells: Battery charging input: Headphone input:.

  • Page 39: Automatic Power-Off When Out Of Power

    4.2.23 Automatic power-off when out of power When the power is too low, the wifi unit would prompt to charge as the following. 4.2.24 Switch button In the shutdown state, short press the button, the system boot; In the boot state, keep press button for 3s, the system shut down. 4.2.25 indicator for too low signal strength When the signal strength is too low, and is still connected with the AP, then the bellow interface appears, meanwhile, the delegate unit fails to operate, and it need move close to the AP to ensure the...
  • Page 40 Digital Wi-Fi Conference System VersionV0.2...
