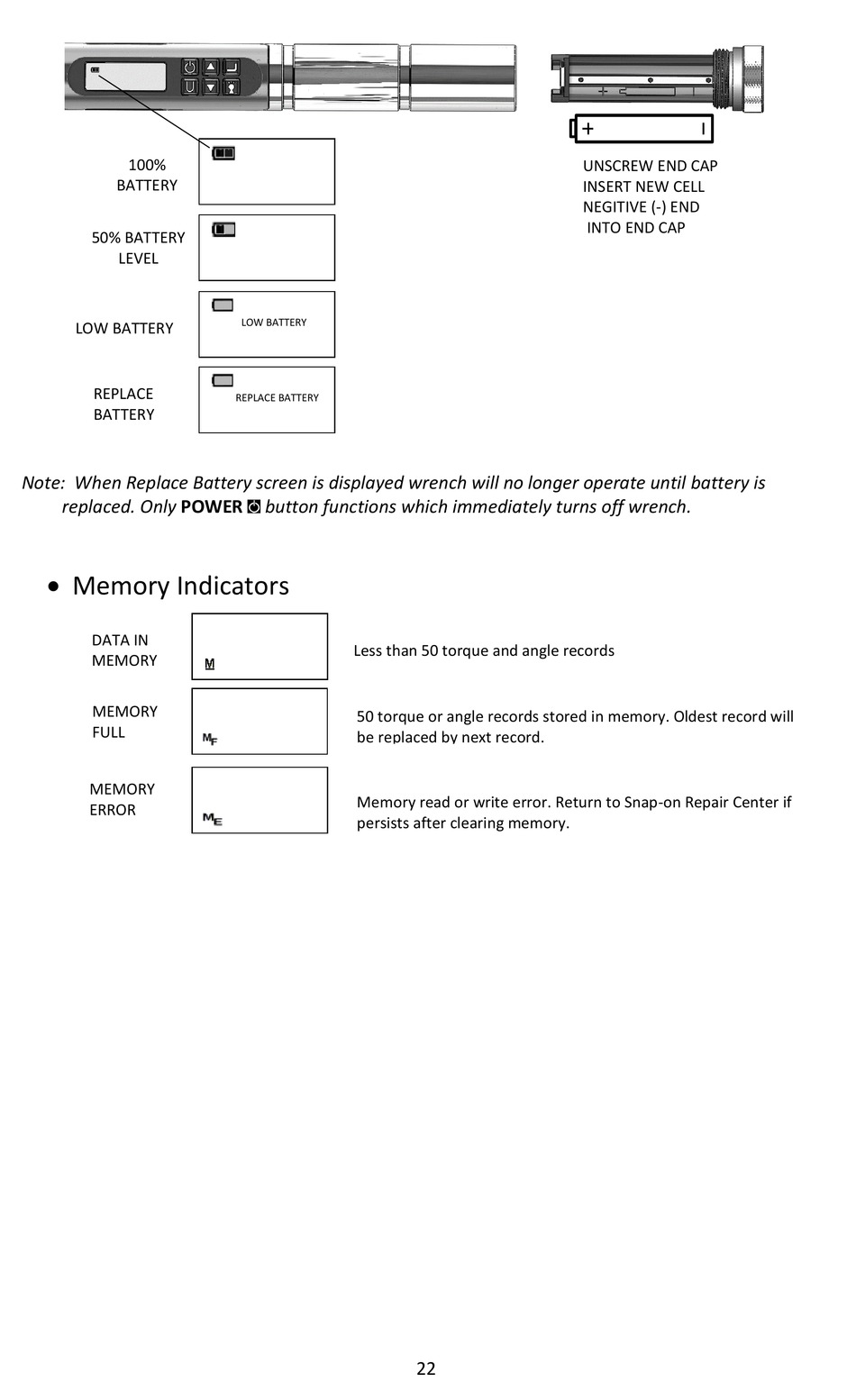

100%
BATTERY
LEVEL
50% BATTERY
LEVEL
LOW BATTERY
REPLACE
BATTERY
Note: When Replace Battery screen is displayed wrench will no longer operate until battery is
replaced. Only POWER
 Memory Indicators
DATA IN
MEMORY
MEMORY
FULL
MEMORY
ERROR
LOW BATTERY
REPLACE BATTERY
button functions which immediately turns off wrench.
Less than 50 torque and angle records
stored in memory.
50 torque or angle records stored in memory. Oldest record will
be replaced by next record.
Memory read or write error. Return to Snap-on Repair Center if
persists after clearing memory.
22
UNSCREW END CAP
INSERT NEW CELL
NEGITIVE (-) END
INTO END CAP
