» AM4210 Quick Reference Sheet «
Connectors
J2
AMC Gold Fingers
SFP+ Connector
J3
Serial Port Connector
J4
USB Flash Connector
JP2
Jumper Settings
JP1
Reserved
Temperature Sensors
Outlet Sensor
TS1
Ethernet Internal Sensor
TS2
Cavium Internal Sensor
TS3
Symbols Chart
Hot Swap
Out of Service
Healthy
Serial Port (RJ45)
LEDs Signification available on back.

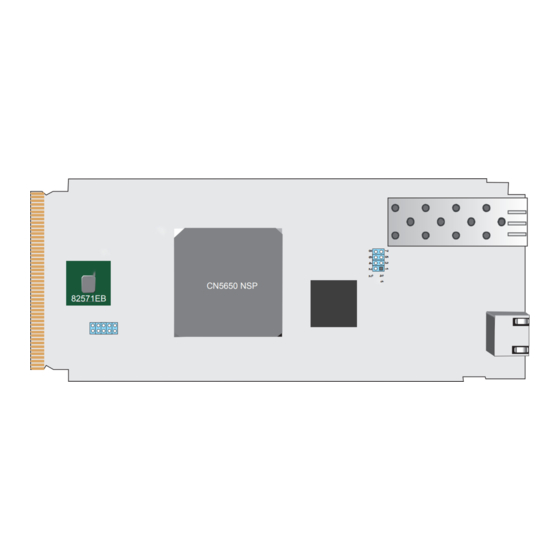

20
TS3
TS2
J2
82571EB
JP2
1
TS1
JP1
CN5650 NSP
J3
J4
Cavium Advanced Mezzanine Card
Advertisement
Related Manuals for Kontron AM4210
Summary of Contents for Kontron AM4210
- Page 1 » AM4210 Quick Reference Sheet « Connectors AMC Gold Fingers SFP+ Connector Serial Port Connector USB Flash Connector Jumper Settings Reserved Temperature Sensors Outlet Sensor Ethernet Internal Sensor CN5650 NSP Cavium Internal Sensor 82571EB Symbols Chart Hot Swap Out of Service...
- Page 2 » AM4210 Quick Reference Sheet « J3 - SFP+ Connector JP2 - USB Flash Drive J2 - AMC Connector Front Port Assignment AMC Port Assignment VeeT VeeR N.C. B129 RxD15- SFP+ Connection Port Region Connection N.C. TX_Fault TxD4+ RxD8- B130...
