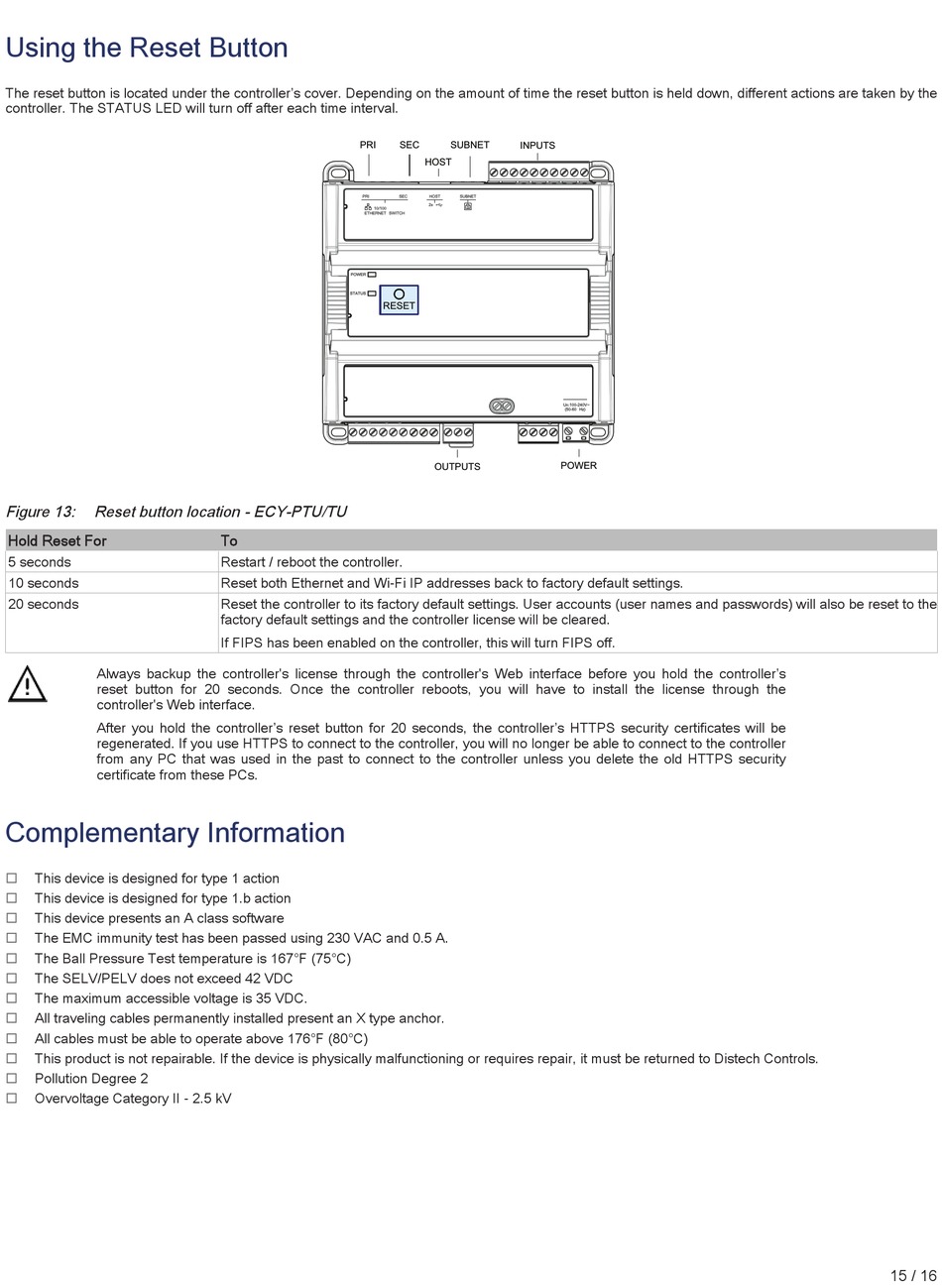

Using the Reset Button

The reset button is located under the controller's cover. Depending on the amount of time the reset button is held down, different actions are taken by the
controller. The STATUS LED will turn off after each time interval.
Figure 13: Reset button location - ECY-PTU/TU
Hold Reset For
5 seconds
10 seconds
20 seconds
Always backup the controller's license through the controller's Web interface before you hold the controller's
reset button for 20 seconds. Once the controller reboots, you will have to install the license through the
controller's Web interface.
After you hold the controller's reset button for 20 seconds, the controller's HTTPS security certificates will be
regenerated. If you use HTTPS to connect to the controller, you will no longer be able to connect to the controller
from any PC that was used in the past to connect to the controller unless you delete the old HTTPS security
certificate from these PCs.

Complementary Information

£
This device is designed for type 1 action
£
This device is designed for type 1.b action
£ This device presents an A class software
£
The EMC immunity test has been passed using 230 VAC and 0.5 A.
£
The Ball Pressure Test temperature is 167°F (75°C)
£
The SELV/PELV does not exceed 42 VDC
£ The maximum accessible voltage is 35 VDC.
£ All traveling cables permanently installed present an X type anchor.
£
All cables must be able to operate above 176°F (80°C)
£
This product is not repairable. If the device is physically malfunctioning or requires repair, it must be returned to Distech Controls.
£
Pollution Degree 2
£ Overvoltage Category II - 2.5 kV
PRI
RESET
To
Restart / reboot the controller.
Reset both Ethernet and Wi-Fi IP addresses back to factory default settings.
Reset the controller to its factory default settings. User accounts (user names and passwords) will also be reset to the
factory default settings and the controller license will be cleared.
If FIPS has been enabled on the controller, this will turn FIPS off.
SEC SUBNET
INPUTS
HOST
OUTPUTS POWER
