Savant SSR-2000 Quick Reference Manual

The Savant Select Remote (SSR-2000) Quick Reference Guide provides the information
necessary to setup and operate the Savant Select Remote.

Box Contents

(1) Savant Select Remote (SSR-2000-xx)
(1) Lithium-Ion Battery Pack (070-0016-xx)
(1) USB Type A to Mini Custom B for remote (24") (064-0235-xx)
(1) 5V DC 2.5 AMP Universal Wall Unit (025-0098-xx)
(1) SSR Remote Base (068-0179-xx)
(1) Quick Reference Guide (this document)

Specifications

Savant Select (SSR-2000)
Environmental
Operating Temperature 32º to 95º F (0º to 35º C)
Non-operating Temperature 32º to 113º F (0º to 45º C)
Operating Humidity 5% to 95% Non-condensing
Physical
Dimensions (L x. W x D) 9 x 2.6 x 0.65 inches (228.6 x 66 x 16.5 mm)
Weight 6 oz (170 g) with Battery Pack
Enclosure High-impact molded ABS plastic
Power
Power 3.7V/1150mAh, 4.25 Watt-hours
Integrated Motion Detector for power management
Battery Lithium-Ion battery pack
Battery Charge Time 3-4 hours (nominal)
Communication
Wireless -WiFi 802.11 b/g/n (802.11 n 2.4 GHz only) or
-RF Transceiver, Frequency (Spectrum) - ISM Band
(2.4 GHz to 2.483 GHz)*
Display and Backlights
Touch Screen Display Multi-Touch® high resolution Retina display: 960 x 640
pixels
3.5-inch (diagonal) multi-touch display
Backlights White LED for all navigation buttons
Battery Charging Status Orange/Green/Red LED
USB Connector and Cable
Connector Mini-USB
Cable Mini-USB Sync Cable
Regulatory
CSA NRTL/C and FCC Part 15 Class B/C-Tick**
Safety and Emissions
RoHS Compliant
Charging Base (SSB-2000)
Power
Input Power 5V DC, 2.5 A Adaptor with one meter cord
Physical
Dimensions (L x. W x D) 9 x 2.6 x 0.55 inches (228.6 x 66 x 14 mm)
Weight 3 oz (85 g)
*RF communications requires an RFG-2000, sold separately
Copyright © 2011 Savant Systems LLC, SAVANT® and RacePoint Blueprint™ are trademarks of Savant Systems LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems LLC reserves the right to change product specifications without notice.
75 Perseverance Way, Hyannis, MA 02601 Phone 508.683.2500 Fax 508.683.2600

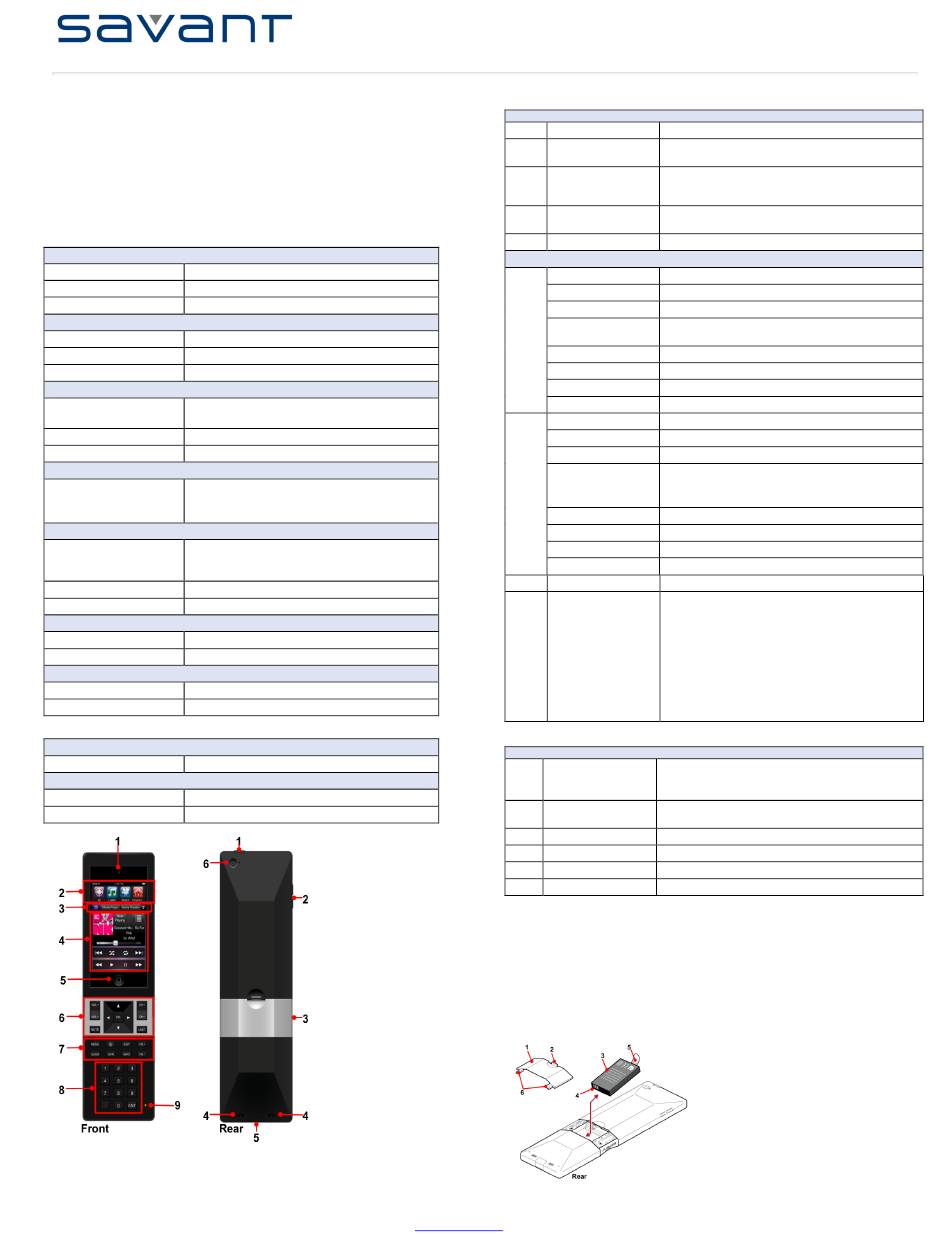

Savant Select Remote (SSR-2000)
Quick Reference Guide

iPod touch Area

Front
1
2
3
4
5

Remote Area

6
7
8
9
Rear
1
2
3
4
5
6

Setup

Battery Installation
To install the battery, refer to the figure below.
1.
2.
3.
4.
SavantSystems.com
Front facing camera
Camera
Category Dock
Provides quick access to subsets of system functions,
such as watch, listen, environment and settings.
Navigation Bar
Allows quick navigation between rooms, services and
subsystems. Also provides simple navigation back to the
active service.
Touch Screen Display
Indicates the controls and content for the active service,
or the service being currently controlled
Home button Press to return to home screen
VOL +
Press for volume up
VOL -
Press for volume down
MUTE Press to mute sound
Up, Down, Left, Right Press up, down, left, and right to navigate selected
Navigation service screen
OK button Press to select
CH + Press to channel up
CH - Press to channel down
Press to return to last channel
LAST
Press to view menu
MENU
Press to view guide
GUIDE
Backlights White LED for all navigation buttons
TrueCommand launch Press to launch True Command II App on display.
Power Off
Press and hold to power off remote
DVR Press to enable the DVR
EXIT Press to exit page
INFO Press to view information
PG +/PG- Press to page up/page down
Numerical Keypad Use to directly tune channels
Status LED Status LED indicates the following:
Green indicates the remote is fully charged and docked.
Orange indicates remote is charging.
Red indicates the remote is not docked and battery is
low and needs charging.
Off indicates the remote is not docked and charged.
Flashing Red indicates that one of the remote buttons
was pressed, but ignored because the iPod touch® was
in the sleep mode or not in the TrueControl II app mode.
(See ** below for details.)
Press and release to power on iPod touch when powered
Power On/Off button
off
Press and hold to power off iPod touch
Volume Up/Down Press buttons for volume up/down for the iPod touch®
buttons
Battery Rechargeable Battery
Charging ports Plug into Charging Base (SSB-1000)
Connector Mini-USB
Camera/mic Rear Facing camera and microphone
Locate the battery cover (1) on the rear of the remote.
Push the latch (2) down and pull the cover out to remove.
Install the battery (3). Ensure the battery contacts (4) are positioned as shown. Ensure
the battery pull-tab (5) is accessible in the event you must remove the battery.
Position the two tabs (6) on the cover into the lower section and press cover in until
latch clicks to secure the cover.
009-xxxx-00
SSR-2000-00
Savant Confidential and Proprietary
