Savant SHC-S2-00 Quick Reference Manual

Savant® Smart Host with Control 2
Quick Reference Guide

Box Contents

(1) Savant® Smart Host with Control 2 - (SHC-S2-00)
(1) 5V DC 3A Power Supply
with Quick Change AC Adapters (025-0153-xx)
(2) M3 x 6 mm Flathead Phillips Screw Black (039-0001-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-0664-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-0665-xx)
(1) Wall Mount Frame (074-0585-xx)
(1) Host Mount (074-0584-xx)
(1) Product and Regulatory Insert (009-1715-xx)

Specifications

Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 51.5 BTU/hr

Dimensions and Weights

Height 1.58 in (4.0 cm)
Width 7.86 in (19.9 cm)
Depth 7.65 in (19.4 cm)
Net: 1.3 lb (.58 kg)
Weight
Shipping 2.1 lb (0.95 kg)
Rack Space 1U

Power

Input Power 5V DC 3A
Maximum Power 15 watts

Standards

Wi-Fi (802.11 b/g/n 2.4 GHz)

Wireless

IMPORTANT! 802.11r (fast roaming) is not
supported
Security WPA™, WPA2™, WPA/wPA2™

Regulatory

FCC Part 15
Safety and
Emissions
FCC ID ASU-SHC2000
IC 10052A-SHC2000
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.6
SHC-S2-00 | 009-1775-00 | 181204
Copyright 2018 Savant Systems, LLC
CE C-Tick ICES-003
1

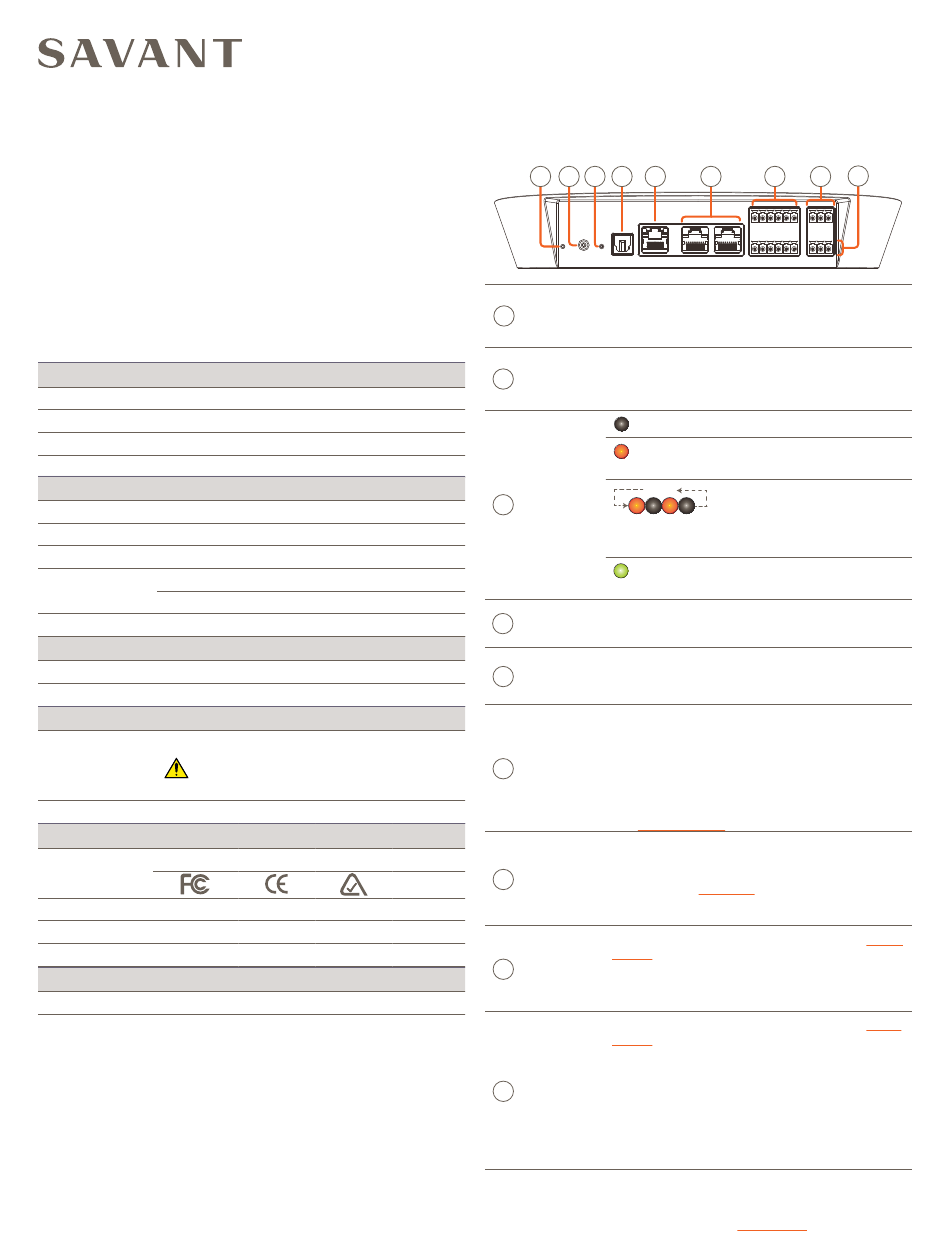

Rear Panel

A B C D
Audio Ethernet
Reset 5VDC Status
To clear all Ethernet settings and revert them
back to their factory defaults, press and hold the
A
Reset (hole)
reset button for five seconds until the LED blinks
red rapidly; then release.
5V DC 3A - Connect included wall wart power
B
Power Input
Off - Disconnected from power supply.
Amber - Host is booting/rebooting and is
disconnected from the network.
Repeat
C
Status LED
1s
provisioning mode and ready to be added to a
network. Host is not assigned an IP Address.
Green - Connected to the local network and
is assigned an IP Address.
TOSLink (Optical) digital audio output. Connect
Digital Au-
D
to digital optical audio input on switcher for
dio Output
using the Audio Interrupt Service (AIS).
8-pin RJ-45 female.
E
Ethernet
10/100/1000 Base-T auto negotiating port. Con-
necting to this port will disable Wi-Fi settings.
8-pin RJ-45 female.
Used to transmit and receive serial binary data
to and from serial controllable devices.
F
RS-232
Ports 1-2 RS-232 - CTS/RTS handshaking. CTS
RTS handshaking availability is based on the
component profile.
See Rs-232 Wiring
6-pin Screw Down Plug-in Connector. Used to
send IR signals to control devices with an IR
input or IR receiver via an IR flasher (5V toler-
G
IR
ant only). See
precautions regarding IR functionality before
making connections.
3-pin Screw Down Plug-in Connector. See
Wiring
H
Relay
Normally Open (NO) / Normally Closed (NC) to
control devices requiring basic on/off operation.
DC Voltage Max: 30V DC 1A
3-pin Screw Down Plug-in Connector. See
Wiring
GPIO Input - When configured as an input, the
processor will look for a low (<0.8V DC) or a
high (>2.4V DC) state.
I
GPIO
Minimum 0V DC / Maximum 12V DC.
GPIO Output - When configured as an output,
the port provides a binary output of 0-12V DC
150mA max.
of 2
E F G H
- 1 + - 2 + - 3 + NC C / / NO
RS232-1 RS232-2
4 + 5 6 G 1 PD
- - + - +
supply between the 5V DC connection
and a 115-240V AC surge protected
outlet.
1s 1s 1s Amber Flashing - Host is in
section for pin-outs.
IR Wiring section for important
section for pin-outs.
section for pin-outs.
