DEMO MANUAL DC2990A

QUICK START PROCEDURE

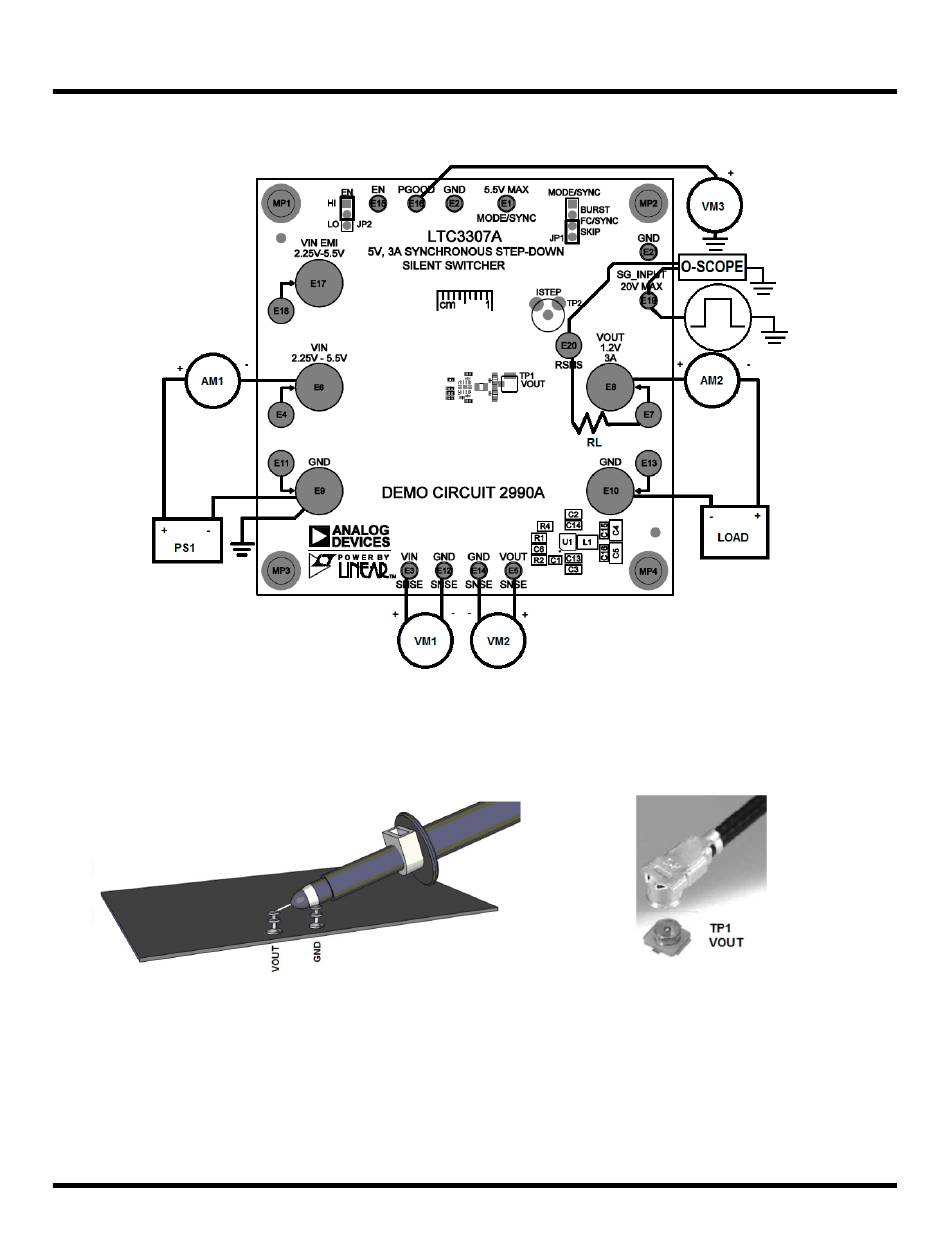

Figure 1. Test Setup for the DC2990A Demo Board
Figure 2. Technique for Measuring Output Ripple
Figure 3. Technique for Measuring Output Ripple and Step
and Step Response with a Scope Probe
Response with a Low Inductance Connector (Not Supplied)
