Component
R19, R20, R21
D1
D2, D3, D4
C3–C11, C16–C18
C2
C13, C14
Q3, Q4
C1
C15
R15, R18
R3
R5
R2
R1, R16, R17
R6
R31–R33
R11, R13, R14
R25, R26*, R28
K1–K4
J3–J7
U1
U2*
L1, L2
*Components that are not populated.
REV. 0

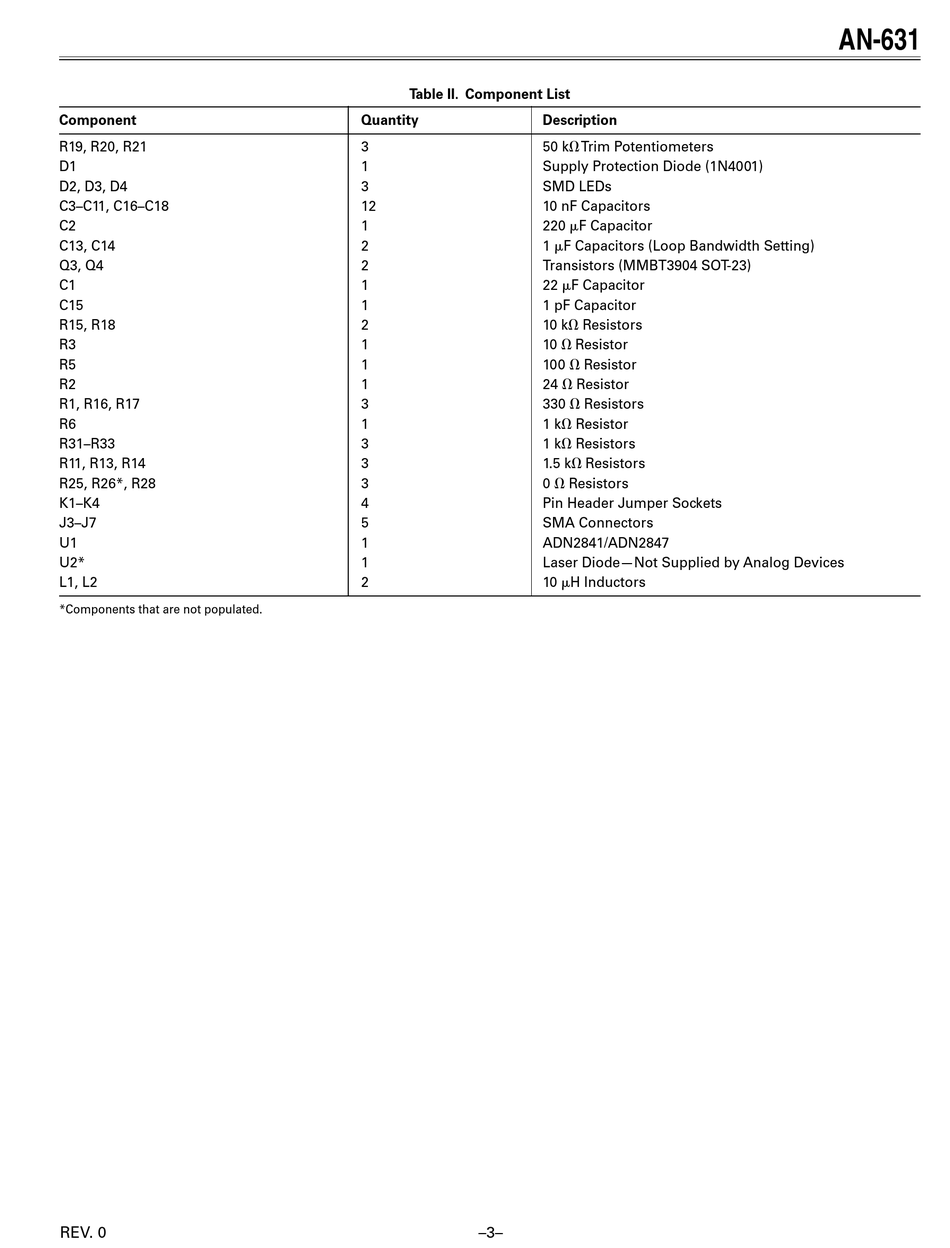

Table II. Component List
Quantity
3
1
3
12
1
2
2
1
1
2
1
1
1
3
1
3
3
3
4
5
1
1
2
–3–
Description
50 kTrim Potentiometers
Supply Protection Diode (1N4001)
SMD LEDs
10 nF Capacitors
220 F Capacitor
1 F Capacitors (Loop Bandwidth Setting)
Transistors (MMBT3904 SOT-23)
22 F Capacitor
1 pF Capacitor
10 k Resistors
10  Resistor
100  Resistor
24  Resistor
330  Resistors
1 k Resistor
1 k Resistors
1.5 k Resistors
0  Resistors
Pin Header Jumper Sockets
SMA Connectors
ADN2841/ADN2847
Laser Diode—Not Supplied by Analog Devices
10 H Inductors
AN-631
