Altronix Pace1STR Installation Manual

Pace1STR is a long range Ethernet adapter kit that transmits data at 100Mbps full duplex and power via CAT5e
or higher cable in a PoE(+) compliant format. Pace1PRM receiver is powered via a PoE midspan, such as the
Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the
Pace1ST mini transceiver which, in turn, passes this power to an enabled IP camera/device. These plug and play
units facilitate cost-effective solutions for IP devices that need to be installed at distances greater than 100m.
Agency Listings:
• UL/cUL Listed for
Information Technology Equipment (UL 60950-1).
• CE European Conformity.
Input (Pace1PRM):
• Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W).
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e or higher.
• Distance: up to 500m.
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af (15W)
and PoE+ compliant to IEEE 802.3at (30W)
delivered to camera by Pace1ST.
Power provided by Pace1PRM to Pace1ST
by PoE protocol.*
• Throughput is rated to pass 100Mbps of data at
distances up to 500m.
With proper headend equipment this supports
Megapixel, HD720, HD1080.
CAT5e or Higher:
• Distance: up to 500m @ 100Mbps
(see Maximum Length of CAT5e Type vs.
Camera Power/PoE Class, pg. 3).
LED Indicators:
• Pace1PRM and Pace1ST:
Green - PoE ON (by respective RJ45 jack).
• Pace1PRM and Pace1ST (RJ45 jack):
Yellow and Green LED IP Link status,
10/100Base-T/active.
*See note on Page 2.
Pace1STR
IP and PoE+ Over
Extended Distance CAT5e

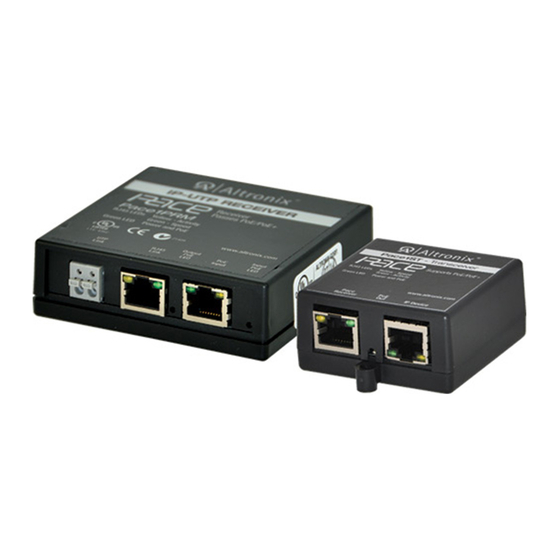

Kit includes
Pace1PRM Receiver and Pace1ST Mini Transceiver
Installation Guide
Overview:
Features:
Environmental:
• Operating Temperature:
• Storage Temperature:
• Relative humidity:
Functions:
• Auto detection and protection of legacy
Applications:
• Retrofit digital IP cameras in an analog CCTV
• Extend Network link distance in an industrial
• Works with Megapixel, HD720, HD1080 and VGA
Mechanical:
• Dimensions (W x L x H approx.):
Pace1PRM:
– 20ºC to 49ºC (– 4ºF to 120.2ºF).
Pace1ST:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 30W: – 40ºC to 49ºC (– 40ºF to 120ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
20 to 85%, non-condensing.
non-PoE cameras/devices.
CAT5e installations.
environment over 610m.
(SD) cameras with proper headend equipment.
Pace1PRM:
3.5" x 3.5" x 1"
(88.9mm x 88.9mm x 25.4mm).
Pace1ST:
2.27" x 2.645" x 1.12"
(57.7mm x 67.2mm x 28.4mm).
I.T.E. 43KC
