Comeup HV-15 Quick Start Manual

Introduction

Feature
st
Line pull (1 layer):
st
Line speed (1
Operation pressure:
Brake:
Clutch (freespooling):
Recommended
wire rope:
Hydraulic system:
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Part description
．Quantity for each part

Installation

Before using the winch, make sure all components have no corrosion or
damaged; the environment should be clear and dry.

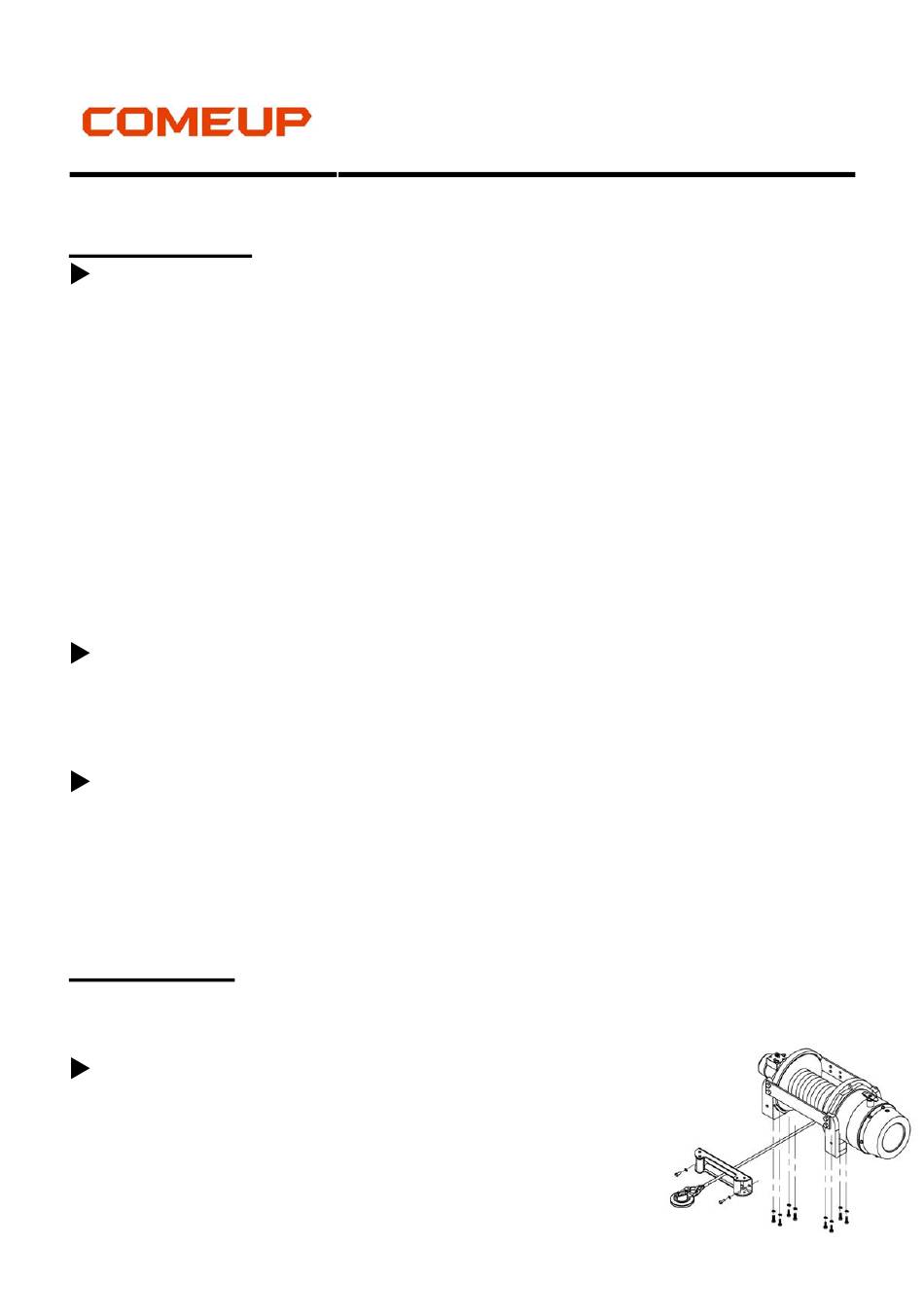

Mounting
． Winch shall be mounted on a flat and hard surface.
． Winch should be mounted as closed to center and
as perpendicular as possible to the direction of the
line pull.
． Wire rope shall be wound in an under-wound
orientation only.

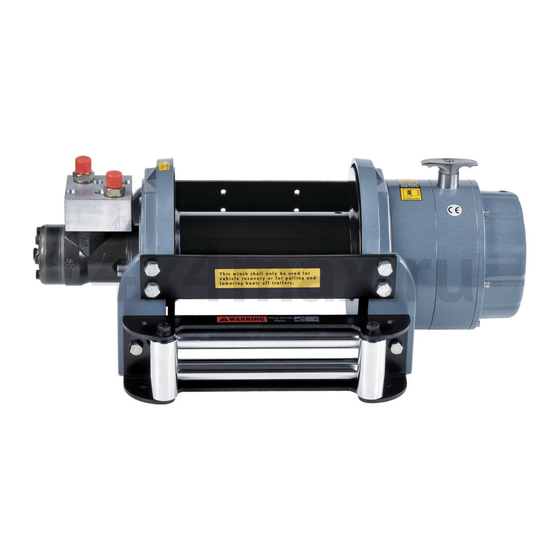

Hydraulic Recovery Winch
6,800 kg / 15,000 lb ( SAE J706 rating )
6,800 kg ( EN 14492-1 rating ) first layer of rope
layer): 9 mpm / 30 fpm at 60 l / min (15.9 g / min)
150 bar / 2,175 psi
Drag brake and over-center valve provided for full
100% braking
Pull and turn extended T-handle for rapid wire
rope payout
14 mm x 27 m, 1960 N/mm2 grade,
A minimum breaking strength of 137 KN required
PTO/power take off unit driven pump
Model:
．Serial number
．Part number
HV-15
PN: 686732
