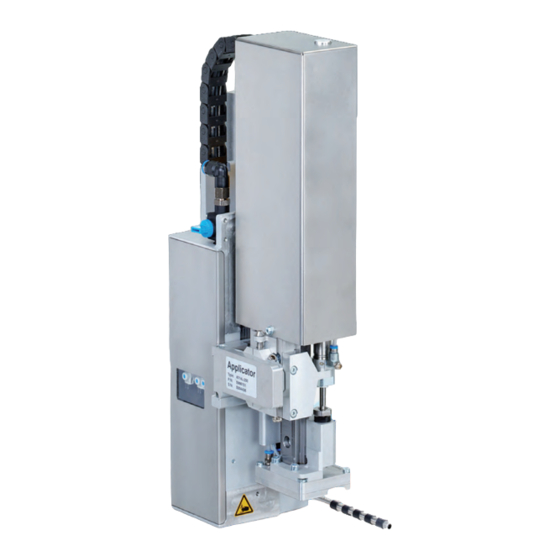

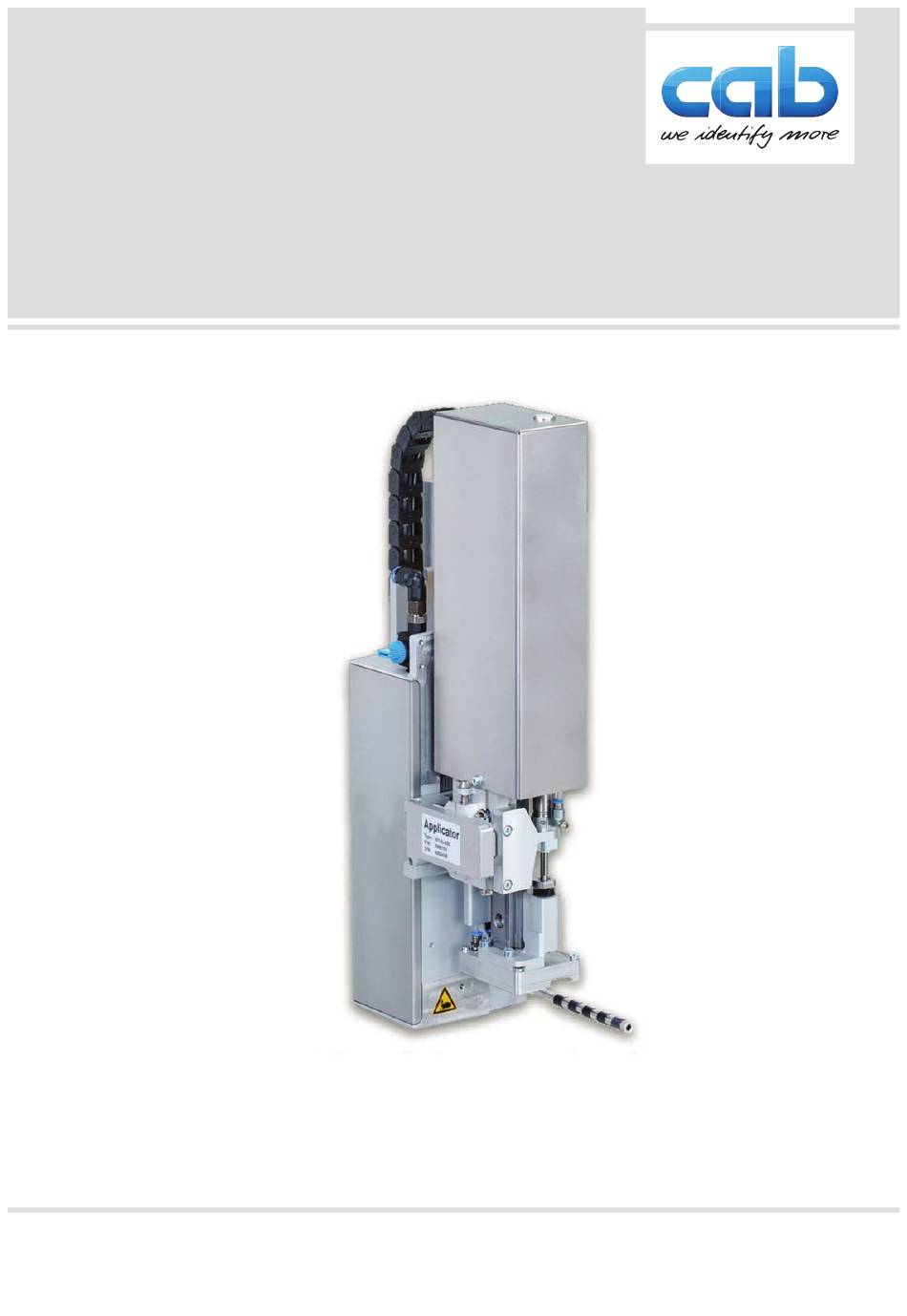

- Page 1 Service Manual Stroke Applicator 4014 / 4016 MADE IN GERMANY...
- Page 2 Edition: 10/2022 - Part No. 9003495 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Drawings ............................... 36 Block Diagram Type 4014/4016 ......................36 Pneumatic Drawing Type 4014/4016 ..................... 37 Pneumatic Drawing Type 4014/4016 Pressure reduced 4.5 bar ............38 Label Position Type 4014 L/4016 L ......................39 Label Position Type 4014 R/4016 R ....................... 40... -
Page 4: Introduction
• The device is designed to use on a cab printer of the HERMES Q series. Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use;... -
Page 5: Safety Markings
Introduction Before mounting the delivered components disconnect the printer from the power supply and close the shutoff • valve of the applicator. • Only connect the device to other devices which have a protective low voltage. Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting. •... -
Page 6: Product Description
Technical Data Label transfer method Tamp pad Universal pad Spring loaded Spring loaded tamp pad universal pad 4014/16 L/R 11F 4014/16 L/R 1100 4014/16 L/R 31F 4014/16 L/R 3100 20 -114 75 - 90 80 - 114 116 /116 HERMES Q4... -
Page 7: Overview Without Cover
Product Description Overview without Cover Front View Throttle valves vacuum/support air Fig. 2 Overview - Front View Fig. 3 Throttle Valve Vaccum and Support Air 1 Throttle valve cylinder - move in Z-direction 8 Throttle valve cylinder - move out Z-direction 9 Screw to fix the vertical pad position 2 Stopper for the operation mode "Blow on", transport lock 3 Knurled screw for attaching the applicator on the printer... - Page 8 Product Description Rear View Rückansicht Fig. 4 Overview - Rear View Fig. 5 Overview - Control System 1 Throttle valve cylinder - move in Z-direction 19 Valve Cylinder Z Throttle valve cylinder - move out Z-direction 20 Cover plate 14 Sensor "Start Position" 21 Valve Blow air 15 Locking for hinges 22 Valve Vacuum and Support air...
-
Page 9: Contents Of Delivery
Product Description Contents of Delivery • Applicator (1) • Screws as part of the pad (2) • Blow tube - as ordered (3) • Pad - as ordered (4) • Pen to make holes (5) (only for universal pads) • Documentation Fig. -
Page 10: Pads
Product Description Pads 2.5.1 Universal Pads Universal Pad 4014L/R-1100 Spring-mounted Universal Pad 4014L/R-3100 Standard size : 70x60, 90x90 Standard size : 116x102, 116x152 Fig. 7 Universal pad 70x60 Fig. 8 Spring-mounted universal pad 116x152 Universal pads are available in different standard sizes. According to the size of the label the holes may be pierced into the tamp by the customer. -
Page 11: Operation
Operation Standard Operation Check all external connections. Load the material. Ensure that the locking system is locked "Operator's Manual" of the printer. Open the shutoff valve. Attention! Ensure that the pad is not covered by a label when switching on the printer-applicator system. Otherwise the vacuum sensor may be calibrated incorrectly. - Page 12 Operation Fig. 13 Mounting the applicator to the printer Attention! Initiation, adjustments and changing of parts is to be performed by qualified service personnel only. Service Manual of the Applicator Attention! Disconnect the printer from the power supply before mounting the applicator! Ensure the printer is in a stable position! Connect the compressed air only after mounting the applicator to the printer! To clean the applicator and printer it is sometimes necessary to turn away or even dismount the applicator from the printer.
-
Page 13: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Check the operator's manual of the printer. Error treatment: Clearing the error results. Press the to synchronize the label feed, remove the left over labels manually. To quit the error state press Repeat . -
Page 14: Installation
In this case the standard values in the setup protocol are as follows. The factory default settings are: • Connected to a cab HERMES Q printer, vertical • Used Pad: cab part No.: 5963881 54x36 for L cab part No.: 5963878 54x36 for R •... -
Page 15: Mounting And Dismounting The Cover
Installation Mounting and Dismounting the Cover To initiate the applicator or for adjustments it is necessary to dismount the cover (2). After these adjustments have been completed remount the cover. Warning! Do not operate the applicator without cover (2). ... -
Page 16: Mounting The Applicator To The Printer
Installation Mounting the Applicator to the Printer Fig. 16 Mounting applicator on printer Attention! Initiation, adjustments and changing of parts is only for qualified service personal only. Service Manual Mount the applicator 1. Hang the applicator with the female part of hinges (1) at the printer mounted hinges parts (2). 2. Connect SUB-D 15 male connector (6) to the female connector (7) of the printer. 3. -
Page 17: Mounting The Pad
Installation Mounting the Pad 1. Insert the pins (6) of the pad (8) into the holes on the bottom of the pad holder (7). 2. Fix the pad (8) to the pad holder (7) with the screws (1). 3. Insert the vacuum tube (2) and the air blowing tube (3) into their appropriate push-in-fittings (4 &... -
Page 18: Preparing The Applicator For The Spring Mounted Pad 401X-4X00
When delivered, the pad assembly is mounted in the lowest position as this is suited for most pads. In case of using a larger pad (e.g. 116x102/116x152) with the applicator 4014/4016 it is necessary to change the position of the pads z-direction. -
Page 19: Compressed Air Connection
4. Switch on the printer via the power switch. It is possible to use an air pressure regulation unit. cab offers two versions of air pressure regulators. • Air pressure regulation unit with included magnetic valve (3) Controlling via printer ... -
Page 20: Adjustments
Adjustments Adjusting the Pad For the perfect application of labels it is necessary that the pad is placed precisely above the dispensed label. Aligning the pad parallel to the dispensing plate The edge of the pad should be positioned parallel to the dispensing plate of the printer in order to position the label exactly on the pad. -
Page 21: Moving The Pad In Y-Direction
Adjustments 6.1.1 Moving the Pad in Y-Direction 1 mm Fig. 23 Displacement in the Y direction Displacement in the Y direction (printing direction) 1. Loosen screws (1) on the cross beam (2). 2. Move cylinder assembly (4) with the pad (5) and crossbeam (2) along the guiding rail (3) that the distance from the edge of the pad (7) to the edge of the dispensing plate (8) of the printer is approximately 1 mm. -
Page 22: Moving The Pad In Z-Direction
Adjustments 6.1.2 Moving the Pad in Z-Direction 1 mm Fig. 24 Displacement in the Z direction 1. Loosen screw (3) on the binder (2). 2. Turn the setting screw (1) so that the bottom side of the pad (4) is 1 mm over the top of the dispensing plate (6) of the printer. -
Page 23: Moving The Pad In X-Direction
Adjustments 6.1.3 Moving the Pad in X-Direction Fig. 25 Displacement in the Y direction Displacement in the X direction (Side) 1. Loosen screw (3) on the binder (5). 2. Move cylinder assembly with the pad along the crossbeam (4) so that the dispensed label is aligned centrally to the pad. -
Page 24: Vacuum Adjustments
Adjustments Vacuum Adjustments The label will be held on the pad by a vacuum. The vacuum needs to be set up in such a way that the label covers all the suction holes and is not hindered before it reaches its intended position on the pad. The default Value of the Vacuum is -0.6 bar. -
Page 25: Adjusting The Blow Tube (Supporting Air)
Adjustments Adjusting the Blow Tube (Supporting Air) The blow tube must be adjusted in such a way that the label takeover is unhindered by turbulence and the supporting air blows the label evenly against the pad. The default factory value is 2 bar. Note! When changing the label size (2", 4"... - Page 26 Adjustments Fig. 29 Throttle valve "support air" The strength of the supporting air can be varied via the provided throttle valve (1). To increase the strength of the supporting air turn the throttle valve (1) counterclockwise. Measuring Point of the Supporting Air (MP S) Use a manometer with a measuring range of -7 to 7 bar to measure the pressure.
-
Page 27: Adjustment Of The Stopper For Blow On Mode
Adjustments Adjustment of the Stopper for Blow on Mode Note! For operation mode "blow on" only! The operation mode "Blow on" allows labelling without contact. The pad does not press on the product. The label will be blown from the pad onto the product over a distance of up to 10 mm. -
Page 28: Lifting Speed Of Cylinder Z
Adjustments Lifting Speed of Cylinder Z Fig. 32 Throttle valves of the cylinder Z The stroke speed is adjusted by setting two exhaust air throttle valves (1, 3). To set the values, turn the adjusting screws (2 or 4) clockwise as far as they will go. ... -
Page 29: Sensors On Cylinder Z
Adjustments Sensors on Cylinder Z Fig. 33 Sensors on cylinder Z Sensor Start Position Cylinder Z 1. Loosen screw (1) of sensor "Start Position" (3) and move the sensor so that the top edge of the sensor sits comfortably in the sensor holder. 2. -
Page 30: End Position Cushioning
Adjustments End Position Cushioning Note! The end position cushioning of the cylinder is set up to client specifications and does usually not need to be adjusted. The end position cushioning of the main cylinder reduces the impact energy when the applicator is operating at high speeds and/or masses. Adjust the end position cushioning so that the piston arrives the end position definitively but does not strike it to hard. A higher level of end position cushioning will reduce the lift speed. -
Page 31: Labeling From Below - Changing The Spring Of The Impact Sensor
Adjustments Labeling from below - Changing the Spring of the Impact Sensor For fault free labeling in a sideways- or upward-motion it is necessary to change the spring of the impact sensor. The stronger spring prevents the unwanted triggering of the impact sensor due to the inertia of the cylinder and stamp assembly group. -
Page 32: Configuration
Configuration The applicator can be operated in different ways. While the original process stays the same, the operation mode can be chosen from the printer setup. The most important setting is the selection between the operation modes "Stamp on", "Roll on" and "Blow on". Additionally the applicator has different application modes concerning the order of printing and applying within one labelling cycle. -
Page 33: Configuration Parameters Of The Applicator
Configuration Configuration Parameters of the Applicator Start menu. Setup > Labelling. Select Parameter Meaning Default Transfer mode Setting the operation mode Stamp on, Roll on, Blow on Stamp on Cycle sequence Setting the application mode Print-Apply / Apply-Print Print-Apply Print-Apply: An external start signal releases the print of a label and following the application of the label. -
Page 34: Setting The Peel Position
Configuration Setting the Peel Position To optimize the transfer of the labels from the printer to the pad there are two different parameters available for adjusting the peel position. Attention! First adjust the parameter "Peel Position" in the printer configuration. Then adjust the additional peel-off offset in the software. It is very important to follow that procedure for a certain start after label loading and for the re-start after error treatment. -
Page 35: Test Operation
Test Operation Test Mode without a Print Job Fig. 42 Display By alternating between buttons on the display it is possible to simulate the labeling process without an active printing job. Push button This causes the feed of an empty label. Simultaneously the vacuum of the pad as well as the supporting air are activated. -
Page 36: Drawings
Drawings Block Diagram Type 4014/4016 Controller Applicator Control CON 1 CON 1 SUB-D 9 Interface To Printer Applicator Interfaces Sensor Start Position Cylinder Z Sensor Labeling Position Cylinder Z CON 2 CON 1 Valve Block Fig. 43 Block diagram 4014/4016... -
Page 37: Pneumatic Drawing Type 4014/4016
Drawings Pneumatic Drawing Type 4014/4016 Fig. 44 Pneumatics type 4014/4016... -
Page 38: Pneumatic Drawing Type 4014/4016 Pressure Reduced 4.5 Bar
Drawings Pneumatic Drawing Type 4014/4016 Pressure reduced 4.5 bar Fig. 45 Pneumatics type 4014/4016 pressure reduced 4.5 bar... -
Page 39: Label Position Type 4014 L/4016 L
Drawings Label Position Type 4014 L/4016 L Fig. 46 Label position type 4014/4016 L... -
Page 40: Label Position Type 4014 R/4016 R
Drawings Label Position Type 4014 R/4016 R Fig. 47 Label position type 4014/4016 R... -
Page 41: Index
Index Pad ..........17, 20 Abbau des Applikators ......16 Pad in X-Direction......23 Applicator Control ......36 Pad in Y-Direction ......21 Applicator Interfaces ......36 Pad in Z-Direction ......22 Apply/Print ........33 Parameters ........33 Arbeitsdruck........6 Peel-off Mode ........34 Peel Position........34 Block Diagram ........36 Piercing..........17 Blowing air ........33 Pneumatic drawing ......37 Blow Mode ........27 Pressure reduction ......30...
