Summary of Contents for CAB 4114

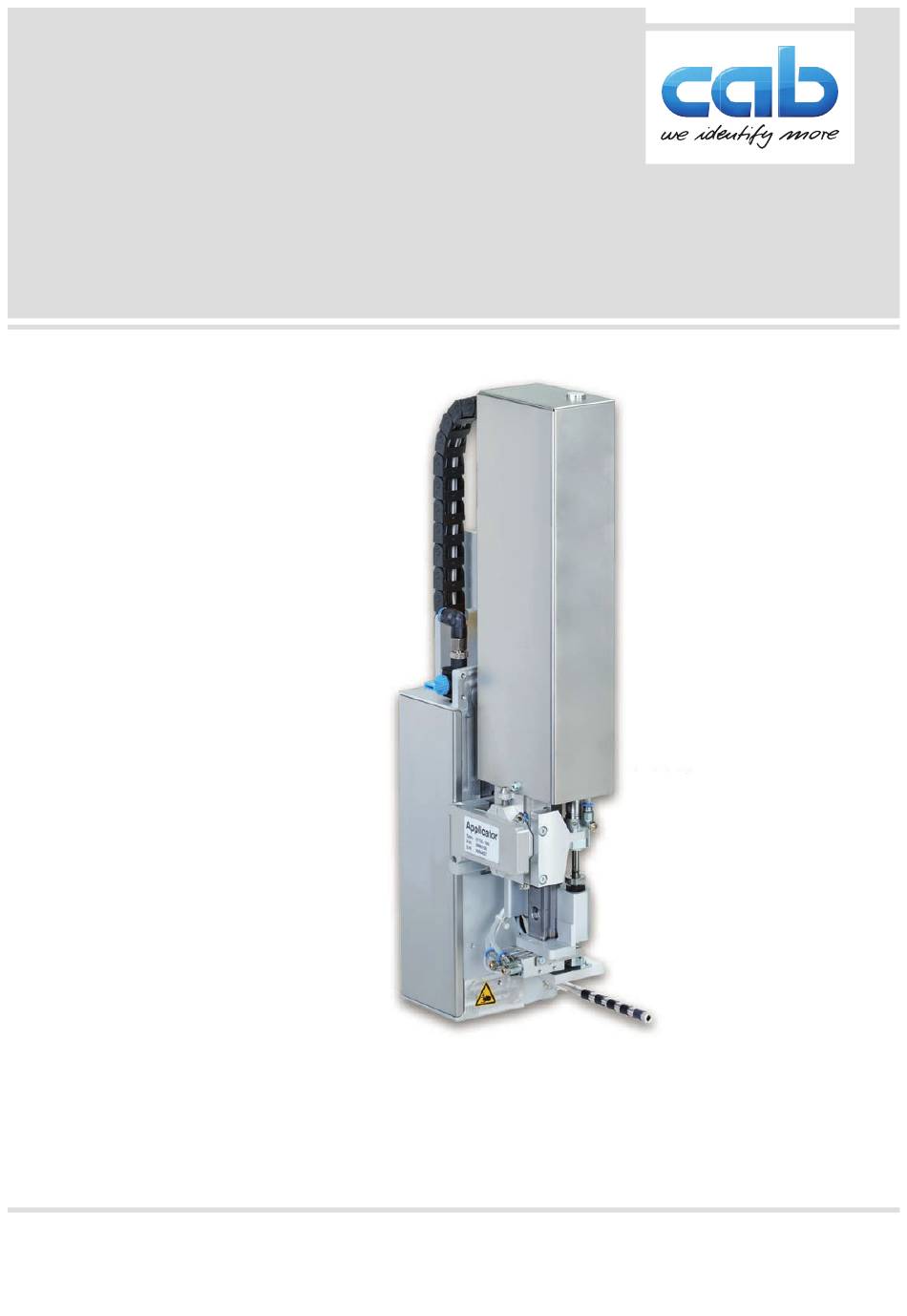

- Page 1 Service Manual Stroke Applicator 4114 / 4116 MADE IN GERMANY...
- Page 2 Edition: 05/2021- Part No. 9003498 Copyright This documentation as well as translation hereof are property of cab Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab.
-
Page 3: Table Of Contents
Test Mode without a Print Job ........................ 31 Test Mode with a Print Job ........................31 Drawings ............................... 32 Block Diagram ............................32 Pneumatic Drawing Type 4114....................... 33 Pneumatic Drawing Type 4116....................... 34 Label Position Type 4114L/4116L ......................35 Label Position Type 4114R/4116R ......................36... -
Page 4: Introduction
• The device is designed to use on a cab printer of the HERMES Q series. Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use;... -
Page 5: Safety Marking
Introduction Before mounting the delivered components disconnect the printer from the power supply and close the shutoff • valve of the applicator. • Only connect the device to other devices which have a protective low voltage. Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting. •... -
Page 6: Product Description
Label transfer method Tamp pad Tamp pad Tamp pad Blow pad with foam with label stop 4114/16 L/R 11 F 4114/16 L/R 12 F 4114/16 L/R 61 F 4014 L/R 2100 4 - 58 10 - 58 10 - 58... -
Page 7: Overview Without Cover
Product Description Overview without Cover Front view Throttle valves vacuum/support air Fig. 2 Overview - front view 1 Throttle valve cylinder - move in Z-direction 8 Throttle valve cylinder - move out Z-direction 2 Stopper for the operation mode "Blow on", 9 Pad - customized transport lock 10 Cylinder Y... - Page 8 Product Description Rear View Fig. 4 Device overview - control system Fig. 3 Device overview - Rear view 1 Throttle valve cylinder - move in Z-direction 21 Valve Cylinder Z Throttle valve cylinder - move out Z-direction 22 Valve Cylinder Y Pad - customized 23 Valve Blow air 11 Blow tube for supporting air...
-
Page 9: Contents Of Delivery
Product Description Contents of Delivery • Applicator (1) • Screws as part of the pad (2) • Pad - as ordered (3) • Blow tube - as ordered (4) • Documentation Fig. 5 Contents of delivery Note! Please keep the original packaging in case the applicator must be returned. Attention! The device and printing materials will be damaged by moisture and wetness. -
Page 10: Operation
Operation Standard Operation Check all external connections. Load the material. Ensure that the locking system is locked "Operator's Manual" of the printer. Open the shutoff valve. Attention! Ensure that the pad is not covered by a label when switching on the printer-applicator system. Otherwise the vacuum sensor may be calibrated incorrectly. - Page 11 Operation Fig. 7 Mounting applicator to printer Attention! Disconnect the printer from the power supply before mounting the applicator! Ensure the printer is in a stable secure position! Connect the compressed air only after mounting the applicator to the printer! For cleaning the applicator and printer it is sometime necessary to turn away or/and dismount the applicator.
-
Page 12: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Check the operator's manual of the printer. Error treatment: Clearing the error results. Press the to synchronize the label feed, remove the left over labels manually. To quit the error state press Repeat. -
Page 13: Installation
The standard values in the setup protocol are as follows. The factory default settings are: • Connected to a cab HERMES Q printer, vertical • Used Pad for factory settings: cab part No.: 5963881 54x36 for L cab part No.: 5963878 54x36 for R •... -
Page 14: Mounting And Dismounting The Cover
Installation Mounting and Dismounting the Cover To initiate the applicator or for adjustments it is necessary to dismount the cover (2). After these works are finished remount the cover. Warning! Do not operate the applicator without cover (2). Only dismount the cover when servicing the applicator. Dismount 1. -
Page 15: Mounting The Applicator To The Printer
Installation Mounting the Applicator to the Printer Fig. 10 Mounting applicator on printer Attention! Initiation, adjustments and changing of parts is only for qualified service personal only. Service Manual Mount the applicator 1. Hang the applicator with the female part of hinges (1) at the printer mounted hinges parts (2). 2. Connect SUB-D 15 male connector (6) to the female connector (7) of the printer. 3. -
Page 16: Mounting The Pad
Installation Mounting the Pad 1. Slide the pins (3) into the holes of pad (4) by lifting the pad to pad holder (1). 2. Fix the pad with the screws (2) to the pad holder (1). 3. Insert the vacuum tube (5) and the blowing air tube (6) into the appropriate push-in-fittings (7,8) of the pad. -
Page 17: Connecting The Compressed Air
4 Switch on the printer by the power switch. It is possible to use an air pressure regulation unit. cab offers two versions of air pressure regulators. • Air pressure regulation unit with included magnetic valve (3) Controlling via printer ... - Page 18 Adjustments Adjusting the Pad For the perfect application of labels it is necessary that the pad is placed precisely above the dispensed label. Aligning the pad parallel to the dispensing plate The edge of the pad should be positioned parallel to the dispensing plate of the printer in order to position the label exactly on the pad.
-
Page 19: Adjustments
Adjustments 6.1.1 Moving the Pad in Y-Direction 1 mm Fig. 15 Displacement in the Y direction Displacement in the Y direction (printing direction) 1. Switch off the compressed air and pull the tube out of the throttle valve (5). The cylinder extends by spring force and is in the label transfer position. - Page 20 Adjustments 6.1.2 Moving the Pad in Z-Direction Fig. 16 Displacement in the Z direction 1. Switch off the compressed air and pull the tube out of the throttle valve (4). The cylinder extends by spring force and is in the label transfer position. 1.
- Page 21 Adjustments 6.1.3 Moving the Pad in X-Direction Fig. 17 Displacement in the Y direction Displacement in the X direction (Side) 1. Loosen screw (3) on the binder (5). 2. Move cylinder assembly with the pad along the crossbeam (4) so that the dispensed label is aligned centrally to the pad.
- Page 22 Adjustments Set Throttle Valves on the Cylinders Exhaust throttle valves are installed on the cylinders of the applicator. The valves control the movement of the cylinders in the direction of the valves. move in direction move out direction of the piston of the piston Fig.
-
Page 23: Vacuum Adjustments
Adjustments Vacuum Adjustments The label will be held on the pad by a vacuum. The vacuum needs to be set up in such a way that the label covers all the suction holes and is not hindered before it reaches its intended position on the pad. The default Value of the Vacuum is -0.6 bar. -
Page 24: Adjusting The Blow Tube (Supporting Air)
Adjustments Adjusting the Blow Tube (Supporting Air) The blow tube must be adjusted in such a way that the label takeover is unhindered by turbulence and the supporting air blows the label evenly against the pad. The default factory value is 2 bar. Note! Use an appropriate blow tube for the printer in use. - Page 25 Adjustments Fig. 23 Throttle valve "support air" The air pressure can be adjusted with the "support air" valve (1) to fine tune the procedure. To increase the supporting air turn counterclockwise the screw at the valve (1) Measuring Point Support Air (MP S) Use a manometer with a measurement range of -7 to 7 bar to control the pressure.
-
Page 26: Adjustment Of The Stopper For Blow On Mode
Adjustments Adjustment of the Stopper for Blow on Mode Note! For operation mode "Blow on" only! The operation mode "Blow on" allows labelling without contact. The pad does not press on the product. The label will be blown from the pad to the product over a distance up to 10 mm. -
Page 27: Lift Speed Of Cylinder Z
Adjustments Lift Speed of Cylinder Z Fig. 26 Throttle valves on the cylinder Z The speed of the pad movement can be regulated by two throttle valves (1, 3). Adjust the pad movement speed as necessary. To increase the downward speed turn counterclockwise the screw (4) at the lower valve (3). ... -
Page 28: Sensors On Cylinder Z
Adjustments Sensors on Cylinder Z Fig. 27 Sensors on cylinder Z Sensor Start Position (3) Cylinder Z 1. Loosen screw (1) of sensor "Start Position" (3) and move the sensor so that the top edge of the sensor sits comfortably in the sensor holder. 2. -
Page 29: End Position Cushioning
Adjustments Stopper Tamp Assembly The stopper avoids the triggering of the labelling sensor by the weight of the pad assembly at the inward motion in case of an installation of 90° or 180°. The adjustment must be done in the start position of the applicator. -
Page 30: Lift Speed Of Cylinder Y
Adjustments 6.12 Lift Speed of Cylinder Y The speed of the pad movement can be regulated by two throttle valves (1, 3). To set the values, turn the adjusting screws (2 or 4) clockwise as far as they will go. ... -
Page 31: Labeling From Below - Changing The Spring At The Impact Sensor
Adjustments 6.14 Labeling from below - Changing the Spring at the Impact Sensor For fault free labeling in a sideways- or upward-motion it is necessary to change the spring of the impact sensor. The stronger spring prevents the unwanted triggering of the impact sensor due to the inertia of the cylinder and stamp assembly group. -
Page 32: Configuration
Configuration The applicator can be operated in different ways. While the original process stays the same, the operation mode can be chosen from within the printer setup. The most important setting is the selection between the operation modes "Stamp on" and "Blow on". Additionally the applicator has different application modes concerning the order of printing and applying within one labelling cycle Stamp on... -
Page 33: Configuration Parameters Of The Applicator
Configuration Configuration Parameters of the Applicator Start menu. Setup > Labelling. Select Parameter Meaning Default Transfer mode Setting the operation mode Stamp on, Roll on, Blow on Stamp on Cycle sequence Setting the application mode Print-Apply / Apply-Print Print-Apply Print-Apply: An external start signal releases the print of a label and following the application of the label. -
Page 34: Setting The Peel Position
Configuration Setting the Peel Position To optimize the transfer of the labels from the printer to the pad there are two different parameters available for adjusting the peel position. Attention! First adjust the parameter "Peel Position" in the printer configuration. Then adjust the additional peel-off offset in the software. It is very important to follow that procedure for a certain start after label loading and for the re-start after error treatment. -
Page 35: Test Operation
Test Operation Test Mode without a Print Job Fig. 38 Display By alternating between buttons on the display it is possible to simulate the labeling process without an active printing job. Push button This causes the feed of an empty label. Simultaneously the vacuum of the pad as well as the supporting air are activated. -
Page 36: Drawings
Drawings Block Diagram Controller Applicator Control CON 1 CON 1 SUB-D 9 Interface to the printer Applicator Interfaces Sensor Start Position- Sensor Start Position Cylinder Cylinder Z Sensor End Position Sensor End Position Cylinder Y Cylinder Z CON 2 CON 1 Valve Terminal Fig. -
Page 37: Pneumatic Drawing Type 4114
Drawings Pneumatic Drawing Type 4114 Fig. 40 Pneumatic drawing type 4114... -
Page 38: Pneumatic Drawing Type 4116
Drawings Pneumatic Drawing Type 4116 Fig. 41 Pneumatic drawing type 4116... -
Page 39: Label Position Type 4114L/4116L
Drawings Label Position Type 4114L/4116L Fig. 42 Label position 4414L/4116L... -
Page 40: Label Position Type 4114R/4116R
Drawings Label Position Type 4114R/4116R Fig. 43 Label position 4114R/4116R... -
Page 41: Index
Index Abbau des Applikators ......15 Roll on ..........29 Apply/Print ........29 Arbeitsdruck........6 Sensor ..........32 Sensor Start Position ......24 Blowing air ........29 Sensors Y .........26 Blow Mode ........22 Speed Y..........26 Blow on ........28, 29 Z ..........23 Blow time ..........29 Stamp on ........28, 29 Blow Tube .........16 Starting position ........29 Supporting air ........29...
