Muse M-690 BTC, M-690 DWTC Manual

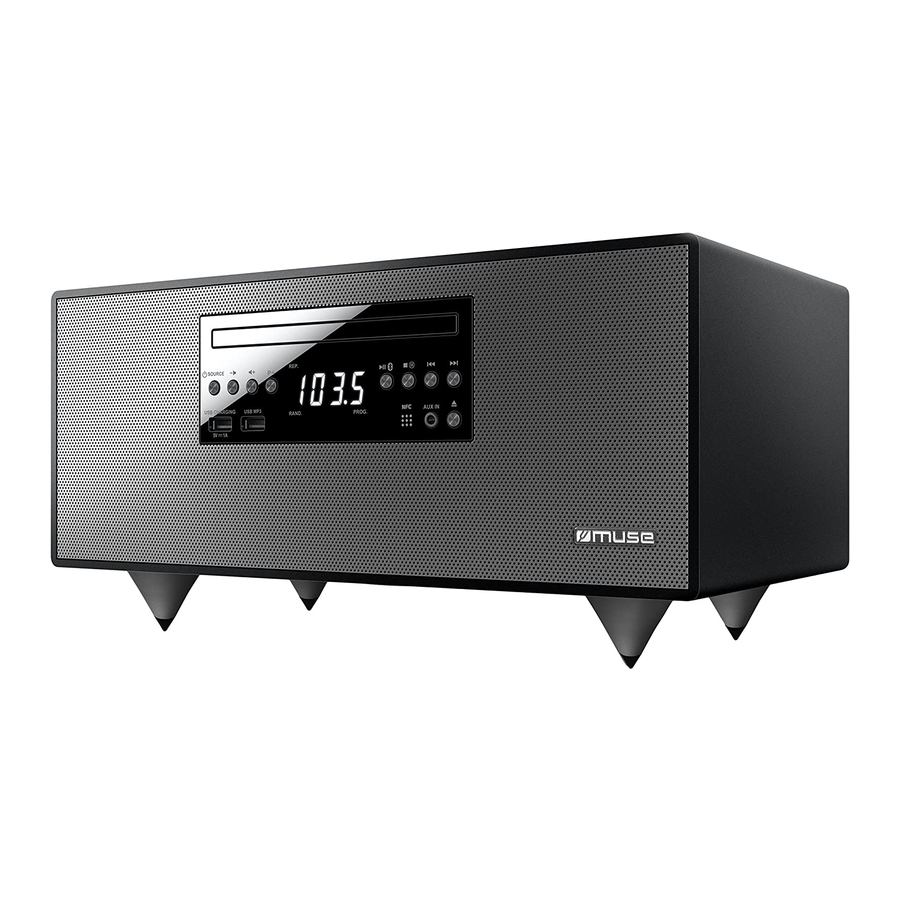

LOCATION OF CONTROLS

Please read the instruction carefully before operating the unit.

1. : To turn unit on/off;
   SOURCE: To select BLUETOOTH, CD, FM, USB, AUX IN mode.
2. / : To adjust volume
3. P+: Preset up
4. Disc compartment
5. Bluetooth indicator
6. Remote sensor
7. PLAY/PAUSE
   Bluetooth pairing
8. Memory
   Stop playback
9. , : Skip/search /Tuning
10. To open / close the disc tray
11. AUX IN jack (3.5mm)
12. NFC Tag
13. Program indicator
14. LED display
15. Random indicator
16. Repeat indicator
17. USB port for MP3 playback
18. USB port for charging
19. SPEAKER
20. FM wire antenna
21. DC in jack
22. Passive Subwoofer

REMOTE CONTROL

1. To turn unit on/off
2. SOURCE button: To select function mode: Bluetooth, CD, FM, USB, AUX
3. / : To adjust volume
4. : Memorization; Stop playback
5. ATS /DIM.: Auto scan and preset radio stations; To adjust display brightness
6. REP. button: To repeat playback
7. : To mute or restore sound
8. / : Skip/ search / Tuning
9. /PAIRING: play/pause; Bluetooth pairing function
10. P+: Radio preset up;
11. RAND. button: To turn on/off random play function

The remote control operates on 1pc "CR2025" lithium battery (included). To power up the remote control, remove the insulation tab from the back of unit.

REPLACING BATTERY FOR THE REMOTE CONTROL

1. Put a coin into the groove of battery cover.
2. Twist the coin anti-clockwise to open the battery door until the marking dot "CLOSE" move to the "OPEN".
3. Take out the battery door
4. Insert one "CR2025" size battery with the positive side (+) facing up.
5. Replace the cover. Twist the coin clockwise to close the battery door until the marking dot "OPEN" move to the "CLOSE".

NOTES:

• Before throwing any batteries away, consult your distributor who may be able to take them back for specific recycling.
• If the remote control is not going to be used for a long time, remove the battery to avoid damage caused by battery leakage corrosion.
• Attention should be drawn to the environmental aspects of battery disposal.
• Do not throw batteries in fire!
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Do not ingest the battery, Chemical Burn Hazard
(The remote control supplied with)
This product contains a coin/ button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

POWER SUPPLY

AC ADAPTOR

The supplied AC adaptor is suitable for use on AC main supplies of 100-240V 50/60Hz and should only be connected to a mains supply within these parameters.

In a concern of saving energy, when playback has reached to the end or listening volume is set at a very low level and no control is operated on the device for a period of 2 hours, the unit will automatically switch to Standby mode.

• The AC adaptor included with this unit is for its use only. Do not use it with other equipment.
• Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the unit being damaged.
• When the unit is not going to be used for long time, disconnect the AC adaptor from the AC outlet.
• Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs, disconnect the plug from the wall outlet at once.
• AC adaptor is used as the disconnect device. It shall remain readily operable and should not be obstructed during intended use. To be completely disconnected the apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected from the mains socket outlet completely.
• Never use an AC adaptor that is damaged, route power lead in a safe manner and make sure it is not subjected to trapping or pinching. If the power lead is damaged refer to a qualified service agent.

TURNING UNIT ON/OFF

1. Press button to turn on the unit.
2. Press and hold button on unit or short press button on remote control to turn off the unit.

SELECTING FUNCTION

The function (BLUETOOTH/ CD/ FM / USB/ AUX) is selected by pressing SOURCE button repeatedly.

SETTING TIME

1. In standby mode, press once to enter time setting mode and the hour digits flash.
2. Press / on unit or remote control to set the hour value. Press to confirm and minute digits flash.
3. Press / on unit or remote control to set the minute value and press again to confirm.

BLUETOOTH FUNCTION

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by New One S.A.S is under license. Other trademarks and trade names are those of their respective owners.

Pairing a Bluetooth Device

1. When the unit is ON, press SOURCE button repeatedly select Bluetooth mode. The display will show " " for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly.
2. On the Bluetooth device, enable Bluetooth and select "M-690 BTC" from the Device List. (Refer to the user manual of the device to be connected for detailed operations.) If the Bluetooth device prompts for a pass code, use"0000". Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep twice. If it failed, the Bluetooth indicator will blink slowly.

Tip: If you want to connect your Bluetooth speaker to another Bluetooth audio device, you need to disconnect current device first and follow the steps above to make a new connection.

If the pairing fails, perform the following:
Press and hold the button until the Bluetooth indicator blinks quickly to enter the Pairing mode. On the Bluetooth device, enable Bluetooth and select "M-690 BTC" from the Device List (see step 2 above).

• On some devices such as computers, once paired you must select the unit from the Bluetooth menu and choose "Use as Audio Device (stereo)" or similar.
• Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range. An active connection will be re-established when your Bluetooth device returns within range.
• When the unit is turned on again, it will automatically try to reconnect with the most recently paired Bluetooth device.

Using a Bluetooth Device

1. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the M-690 BTC's speakers.
2. Press the button to pause playback. Press again to resume playback.
3. Select desired track with /. .
4. Adjust the volume using the / volume buttons. You can also adjust the volume on the device to which you are paired.

Using a NFC Device

NFC (Near Field Communication) is a technology that enables short-range wireless communication between NFC-enabled devices, such as mobile phones.

1. When the unit is ON, press SOURCE button repeatedly to select Bluetooth mode. The display will show "" for a few seconds and change to clock time. The Bluetooth indicator will start to blink rapidly. You will hear an indication voice indicating that the unit is in pairing mode.
2. Enable NFC and Bluetooth on your Bluetooth device (see the user manual of your device for details), tap the NFC device on the NFC tag on unit until you hear an indication voice. The NFC device is connected to this unit via Bluetooth.
3. Select and play audio files or music on your NFC device.
4. To break the connection, tap the NFC device with the NFC tag on this unit again.

Note: The operational range between the main unit and a NFC device is approximately 10 meters.

Hereby, NEW ONE S.A.S, declares that this MUSE M-690 BTC/M-690 DWTC is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at www.muse-europe.com

LISTENING TO DISC

1. When the unit is ON, press SOURCE button repeatedly to select CD mode. The display will show " " for a few seconds. Press to open the disc tray. Insert a disc with label side facing up. Press again to close the disc. ( Note: If there is no disc inserted, the display will show "").
2. After a few seconds, the total number of track will appear on display for a few seconds and playback starts automatically.

RADIO

Listening to the radio

When the unit is on, press SOURCE button repeatedly to select FM mode. The display will show "" for a few seconds and change to clock time.

Manual search

1. Choose your radio station with or .
2. Adjust the volume by or to the desired level.

Automatic search

Press and hold or for few seconds. The automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing or

Note: For a better reception in FM, extend the antenna.

Preset stations

The unit can store 20 FM stations.

Manual storage

1. Select a radio station manually or in automatic search.
2. Press . "" appears on the screen.
3. Press P+ on unit or P+ on remote control to select a preset channel.
4. Press to save it.
5. Repeat steps 1-4 to store other stations.

Automatic storage

Press ATS on remote control and the unit will automatically save the first 20 FM stations. When you store on a channel already been preset, the previous station will automatically be cleared and replaced by the new station.

Listen to the station presets

1. Press P+ on unit or P+ on remote control to select your preset station.
2. Adjust the volume by or to the desired level.

USB PLAYBACK

1. Connect an USB device to the USB MP3 port on unit.
2. Press SOURCE button repeatedly to select USB mode. The display will show " " for a few seconds and change to clock time. Playback will start automatically. The USB indicator keeps blinking during playback.
3. Select desired track with /.

Notes:

• The total number of MP3 files on the USB device should not exceed 999.
• The device may not contain more than 99 directories.
• The reading time takes about a few seconds or more depending on the amount of MP3 files and folders on USB device.
• Do not put anything other than a USB device to the port of this unit. Other objects may damage the USB mechanism.
• The USB socket must not be connected to the computer directly, for that may damage the unit.
• There are many USB devices in the market. We cannot guarantee to support all different models. Please try another USB device if your device is not supported.

PLAY MODES (CD/MP3)

Repeat playback

Press REP. button on remote control repeatedly to select a play mode, Repeat indicator will lights up

• Repeat One: display shows ""
• Repeat folder: display shows " ". (MP3 only)
• Repeat All: display shows " "

To cancel repeat playback, press REP. button repeatedly until display shows " " and repeat indicator disappears.

Random playback

Press RAND. button on remote control. Random indicator lights up. It will play all tracks in random order. Press RAND. button again to cancel this function. Random indicator lights off.

Program playback

1. In stop mode, press P+ button, the display will show " " for a few seconds and change to " ". Program indicator lights up.
2. Select the desired track with /., then press P+ button to confirm.
3. Repeat above steps to program up to 32 tracks for CD and 99 tracks for MP3.
4. Press to start program playback.
5. Press button once to stop the program playback. Press twice to cancel this function.

CONNECTING AUXILIARY SOURCE

1. Connect your auxiliary source (e.g. mp3 player) to the AUX IN jack on the top of unit (cable included).
2. Press SOURCE repeatedly to select AUX mode. The display will show " " for a few seconds and change to clock time.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX IN jack.

DIMMER

Press DIM. button on remote control to select the brightness of the screen: high, low or off.

MUTING THE SOUND

When the unit is on, press button to mute the sound. Press again to restore.

USB CHARGING

This unit is equipped with a built-in USB charging port (Output: 5V 1A) for recharging your mobile device (e.g. smartphone, tablet, etc.)
Simply plug the USB charging cable (not included) into the USB charging port and connect it to your mobile device.

MAINTENANCE

Cleaning

Disconnect the unit from the mains supply before cleaning.

• Use a soft, dry, clean cloth. Regularly dust the vents at the back or sides.
• Using solvents, abrasive or alcohol-based products risks damaging the appliance.
• If an object or liquid enters inside the appliance, unplug it immediately and have it checked by an authorized engineer.

Notes on disc

• Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.
• Do not place more than one disc in the disc compartment.
• Do not try to open the disc compartment during playing.
• Do not touch the lens. Doing so may cause malfunction.
• If there is a scratch, dirt or fingerprints on the disc, it may cause tracking error. Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out. Don't store discs in places with high temperatures or high humidity, they can become warped. After playing, store the disc in its case.
• CD-Rs or CD-RWs playback capability at this player may vary depending on quality of media, CD-Burner, speed of burning and application software.

Important Note

• Before transporting the unit, remove the disc from the disc compartment.

TECHNICAL SPECIFICATION

GENERAL

POWER SUPPLY: AC 100-240V 50/60Hz, 18W consumption

RADIO

FM 87.5-108MHz

BLUETOOTH

Bluetooth: 2.402-2.48GHz
RF output power: -2.656 dBm
Bluetooth Version: V4.1
Working Distance: Up to 10 meters measured in open space (wall and structures may affect range of device)

Specifications are subject to change without notice.

TROUBLESHOOTING GUIDE

Should this unit exhibit a problem, check the following before seeking service:

No Power

• Make sure unit is connected to AC power.

No Sound – General

• External device's volume is set to minimum; raise volume.
• The M-690 BTC's volume is set to minimum; raise volume.

The Bluetooth device cannot pair or connect with the unit.

• You have not activated the Bluetooth function of your device. Refer to the user manual of your device to activate Bluetooth function.
• The unit is not in pairing mode. Press and hold the button until the Bluetooth indicator blinks fast.
• The unit is already connected with another Bluetooth device; disconnect that device and then try again.
