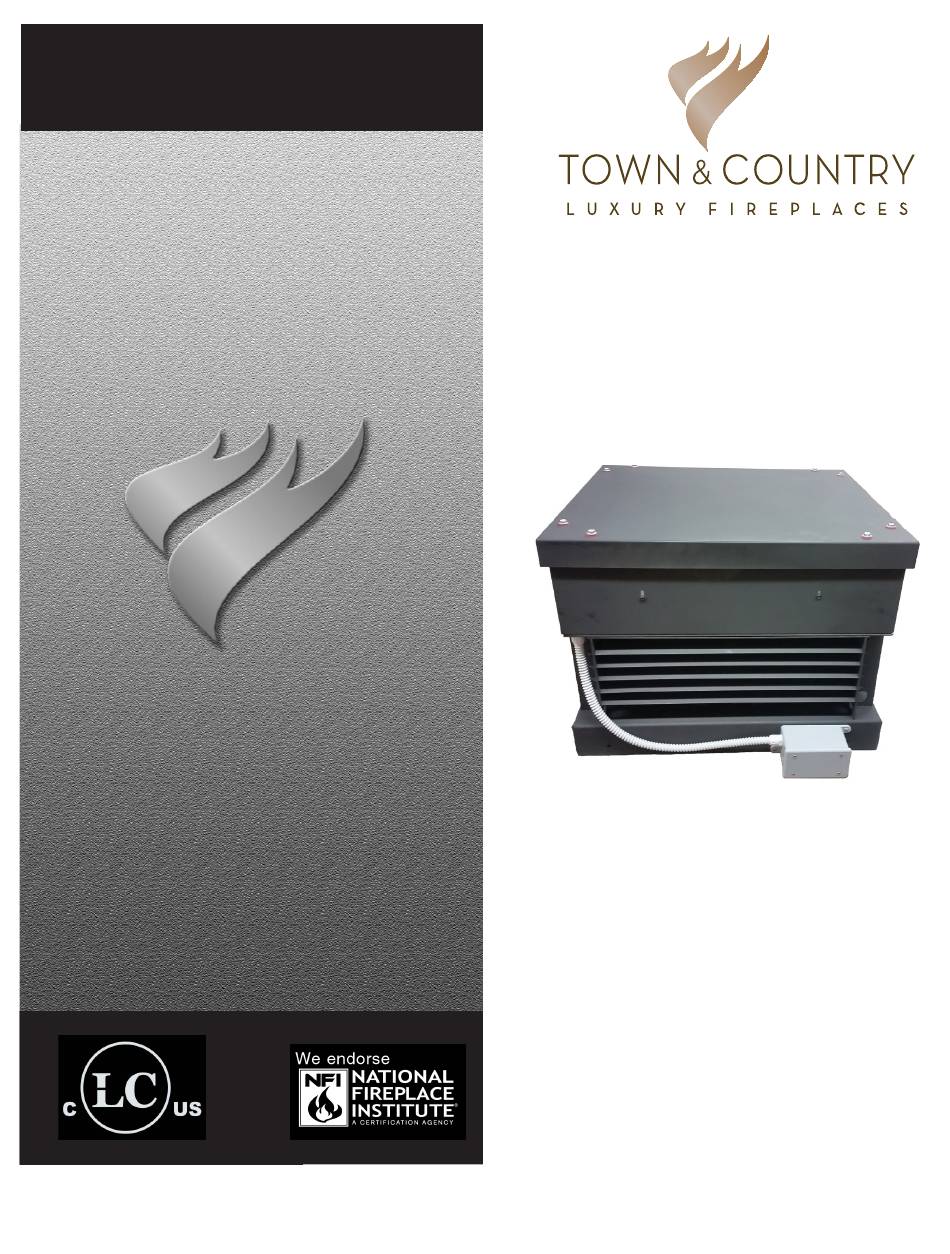

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fireplace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
231120-08
ARCHITECTURAL
SERIES
POWER VENT KIT
FOR USE WITH ARCHITECTURAL UNITS
EQUIPPED WITH GLASS TEMPERATURE
SENSING CONTROL.
*FOR VERTICAL AND HORIZONTAL
INSTALLATIONS
SKU: 22080040
Architectural Series
INSTALLATION
INSTRUCTIONS
1000047700
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces 22080040
Summary of Contents for Town & Country Fireplaces 22080040
- Page 1 Operating Instructions for proper gas supply, safety ARCHITECTURAL requirements and operating instructions. SERIES POWER VENT KIT FOR USE WITH ARCHITECTURAL UNITS EQUIPPED WITH GLASS TEMPERATURE SENSING CONTROL. *FOR VERTICAL AND HORIZONTAL INSTALLATIONS SKU: 22080040 INSTALLATION INSTRUCTIONS 231120-08 1000047700 Architectural Series...
- Page 2 Locate the fireplace as per the main instructions supplied. This kit can only be used in conjunction with the Architectural Series Fireplaces. This installation must conform with local codes or, in the absence of local codes, with the Natural Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.
- Page 3 Vent Terminal Minimum Clearances FIXED CLOSED OPEN- FIXED ABLE CLOSED OPEN- ABLE AREA WHERE TERMINAL GAS METER VENT TERMINAL AIR SUPPLY INLET IS NOT PERMITTED Canada¹ US² Clearances above grade, veranda, porch, deck, or balcony. 12 inches (30 cm) min. 12 inches min.
- Page 4 Power Vent Dimensions Figure 5: Side view. Figure 6: Top view. Figure 7: Bottom view. 115 VAC Single phase, 60/50 Hz 1/2 HP, 6.8 Amps Weight: Aprox. 30 lbs. Anti Vibration Collar Attach the anti vibration collar as close to the power vent as possible. This will reduce any vibrations from the power vent blower from being transmitted through the vent.
- Page 5 Vertical Installation Build riser to a height that meets local building codes based on proximity to other objects and snow / water pro- tection. Seal riser to as per building codes. 23” 23” ” Min. ” Min. Site Fabricated Riser Max 22 ”...
- Page 6 Horizontal Installation Figure 11: Power vent installation horizontal. When installing the power vent horizontally, ensure the side of the power vent with the attached electrical junction box is facing downwards. Use exterior silicone/caulk around the base of the power vent to seal it to the building envelope. Any horizontal run leading to the power vent shall be sloped down to the outside at a minimum of 1/4 inch per foot of vent length.
- Page 7 Wiring NOTE: The installer must supply; • approved 14ga. household wire from the fireplace to the Power Vent, for the 120VAC power. and, • minimum 18ga, 2 conductor (bell/alarm) wire from the fireplace to the power vent for the 24VAC blower control. See the fireplace manual for connections at the fireplace.
- Page 8 © 2020 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.com 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
