INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fireplace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
Visit www.townandcountryfireplaces.net for the most up-to-date version of this manual
180416-12

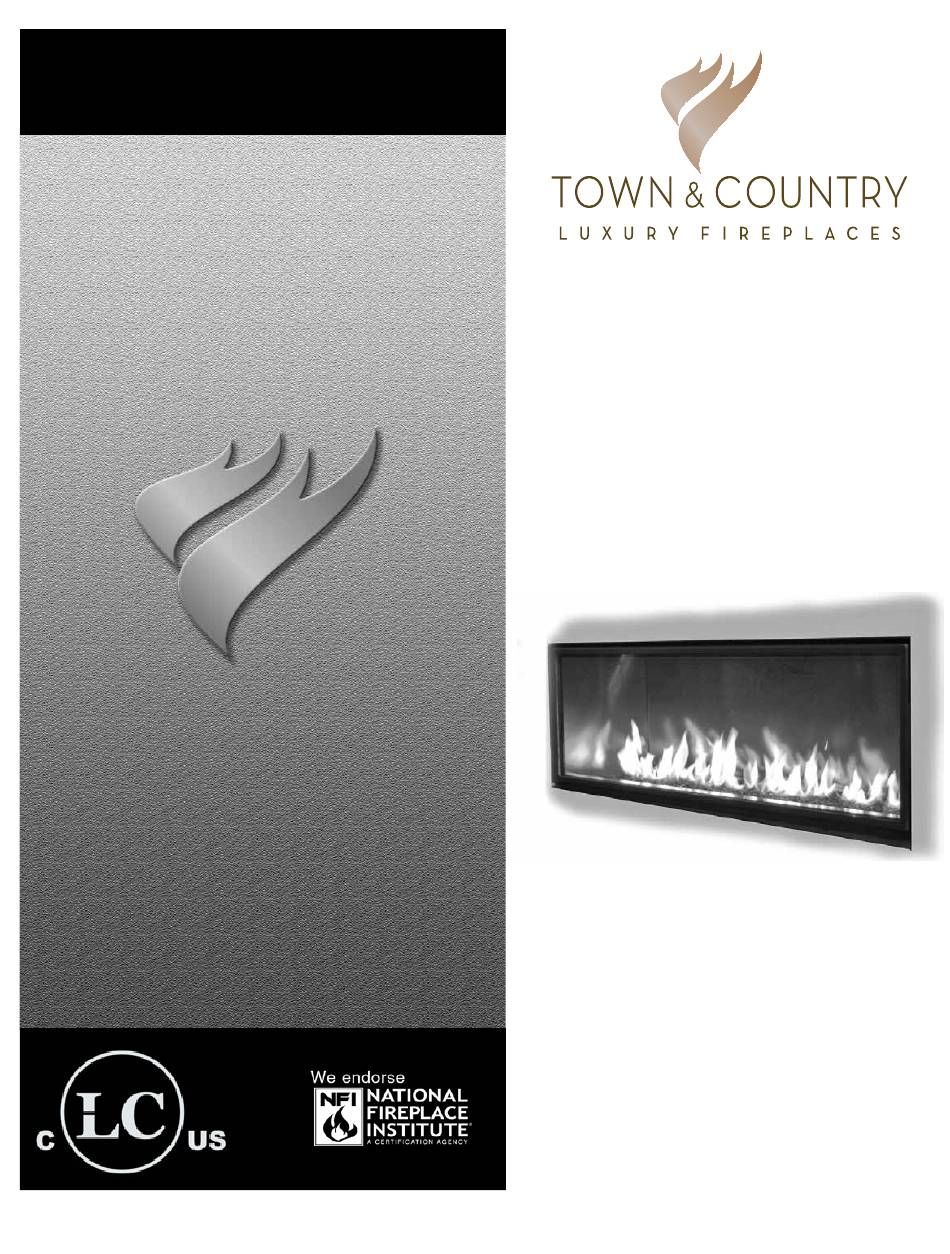

TCWS54
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
SKU# 22150050
For TCWS Series D
Fireplaces
SKU# 22150050
100005922
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces 22150050
Summary of Contents for Town & Country Fireplaces 22150050
- Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS54 BLACK DIAMOND BURNER KIT INSTRUCTIONS SKU# 22150050 For TCWS Series D Fireplaces Visit www.townandcountryfireplaces.net for the most up-to-date version of this manual 180416-12 SKU# 22150050 100005922...
-
Page 2: Contents Of Package
Contents of Package 2 BURNER ASSEMBLIES 1 BURNER TRAY Figure 1: TCWS54 Black Diamond Burner parts. Figure 3: Glass media. Figure 2: Instruction book. SKU# 22150050_270223-12... - Page 3 Black Diamond Burner Installation If converting to propane see conversion instructions on page #5 before proceeding. Install panels according to the TCWS.54D Installation and Operating manual prior to burner installa- tion. (Page 28) 1. Install one of the two burners into the right side of the firebox by laying into location trough and sliding to the right to engage the venturi tube over the orifice.
- Page 4 Figure 9: Placing rear trim. Figure 8: Applying glass media. NOTE: Too much glass media will cause sooting and improper flame pattern. WIDE EDGE TO FRONT OF FIREPLACE WITH FRONT TRIM, TO THE REAR OF THE FIREBOX FOR REAR TRIM. Figure 11: Front trim.
-
Page 5: Propane Conversion
Propane Conversion If the unit is to be used with propane, convert as follows using the components supplied with the TCWS 54 Propane Conversion Kit, SKU# 22180010 which includes Propane orifice and Conversion Label. CAUTION The gas supply and electrical power shall be shut off before proceeding with the conversion. Note: Factory supplied components must be used to ensure correct input. - Page 6 Figure 14: Air shutter gap. Figure 15: Loosening the pilot. ADJUSTMENT BAND ADJUSTMENT BAND Figure 17: Liquid propane position. Figure 16: Natural gas position. 5. Loosen the primary air shutter screw, open shutter to give a gap of 13/64” (0.2”) and re-tighten. Repeat on other burner (Figure 14).
-
Page 7: Main Burner Orifice
This appliance was converted to propane gas Kit Number 5052.52001-B Company Address The above accepts the responsibility that this conversion has been MAIN BURNER ORIFICE properly performed. marked “LC” Figure 18: Main burner orifice. Figure 19: Conversion label Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. -
Page 8: Burner Flame Adjustment
Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. For LP see Pg.6. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. -
Page 9: Parts Diagram
Parts Diagram (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ............PART NO. #1..BLACK DIAMOND BURNER ......22150050 #2..GLASS MEDIA (2 required) ....TCRP.501201 NOT SHOWN SKU# 22150050_270223-12... - Page 10 SKU# 22150050_270223-12...
- Page 11 SKU# 22150050_270223-12...
- Page 12 © 2019 Copyright Pacific Energy Fireplace Products Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
