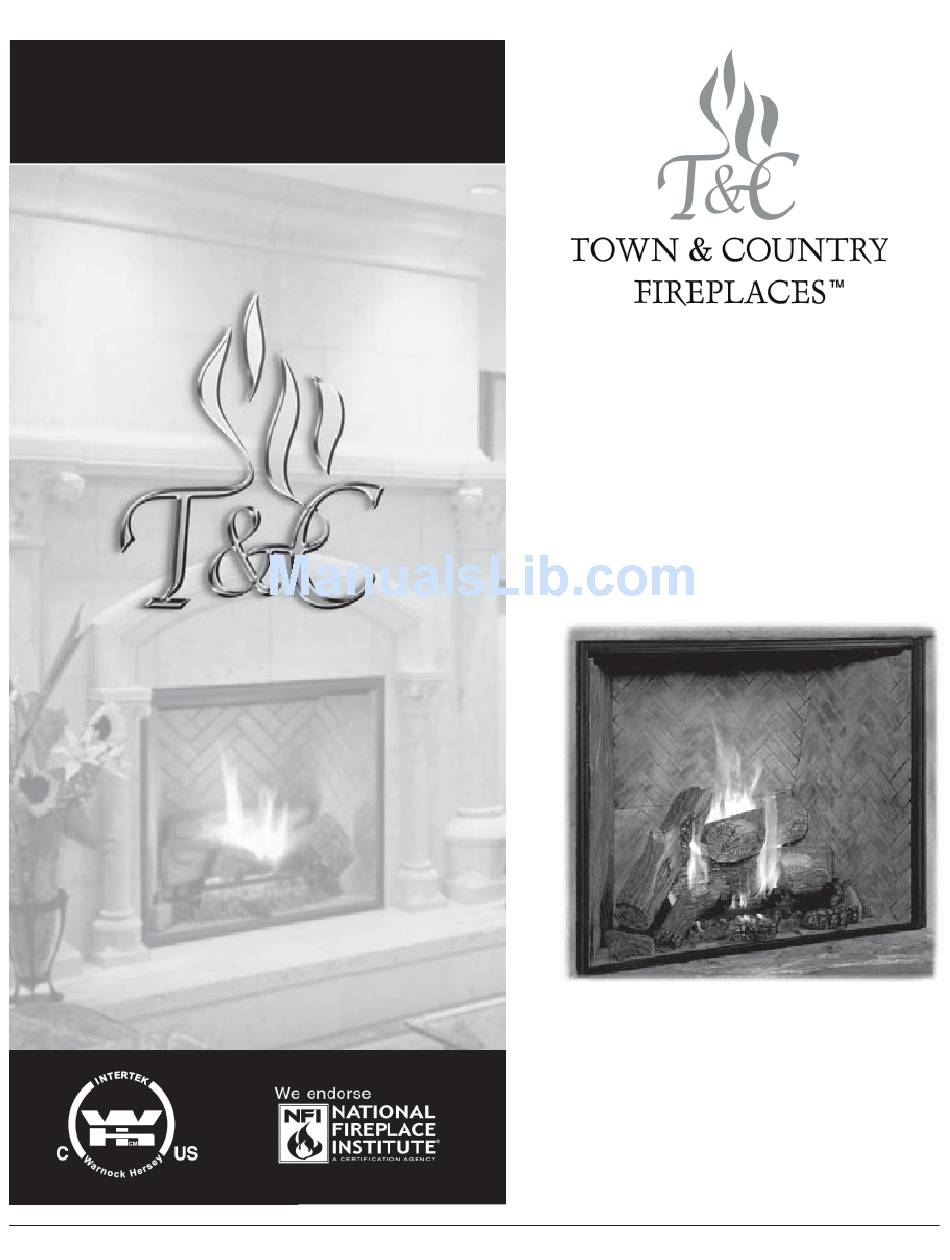

IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
060906-16
TC54
COUNTRY HOME
BURNER KIT
TC54.NG02.C
PART#
TC54.NG02.C
FOR TC54
TC54.NG02 C
5056.4256

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC54 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC54

Summary of Contents for Town & Country Fireplaces TC54

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TC54 COUNTRY HOME BURNER KIT TC54.NG02.C PART# TC54.NG02.C FOR TC54 060906-16 TC54.NG02 C 5056.4256...

  • Page 2: Burner Assembly

    Attach the lower burner assembly to the fl oor of the fi rebox with Fig. #1 two screws. (Fig. # 1) 2. Attach the manifold supply tube from the lower burner to the front Fig. #2 bulk head fi tting and tighten. (Fig. # 2) Ensure that there are no leaks. 060906-16 TC54.NG02.C...
  • Page 3 Fig. #5 behind the front legs. (Fig. # 5) 6. Attach the manifold supply tube from the upper burner to the Fig. #6 rear bulk head fi tting and tighten. (Fig. # 6) Ensure that there are no leaks. 060906-16 TC54.NG02.C...
  • Page 4 (Fig. # 9) Ensure there are no leaks. 9. Attach spark electrode (ORANGE) and sensor leads from upper Fig. #10 ORANGE WIRE burner pilot to the rear electrical bulk head. (Fig. # 10) (The spark electrode connection has a red dot above it) 060906-16 TC54.NG02.C...

  • Page 5: Propane Conversion

    Fig. #11 appliance has cooled. 2. Remove the two screws securing the manifold assembly to the lower burner, (Fig. #11) 3. Using a 1/2” wrench, undo the natural gas burner orifi ce, (marked Fig. #12 #28). (Fig. #12) 060906-16 TC54.NG02.C...
  • Page 6 (marked #43) to ensure a good seal, before screwing it into the fi tting. 10. Open shutter fully. 11. Reinstall the upper burner to the grate assembly and secure in place using the screw previously removed. 060906-16 TC54.NG02.C...
  • Page 7 (Fig. #18 indicates NG position, Fig. #19 indicates LP position) 14. Repeat the conversion on the pilot attached to the upper burner. Fig. #19 15. Remove access panel, 10 screws, and set aside. (Fig. #20) Fig. #20 060906-16 TC54.NG02.C...
  • Page 8 22. Attach the access panel to the side of the fi rebox with the previ- ously removed screws. (Fig. #25) Fig. #25 Note: Gasket must be installed with access panel. Fig. #24 NATURAL PROPANE 060906-16 TC54.NG02.C...

  • Page 9: Gas Pressure Check

    3. Attach a pressure gauge onto the fi tting. 4. When testing is complete, shut off the gas, remove the fi tting and replace the blanking plug. Thread sealant will be required to ensure a gas tight connection. 060906-16 TC54.NG02.C...

  • Page 10: Glowing Embers

    Note: Ember material placement and amount will affect fl ame appearance. More ember material results in lower fl ame height. Add or remove as needed until desired fl ame affect. Do not place any ember material on the upper burner tube. Ember Material Placement Fig. #28 LOG GRATE GLOWING EMBERS 060906-16 TC54.NG02.C...
  • Page 11 They rest in position. Locate as per the diagrams (Fig. # 29-35) Note: Improper placement of logs will cause sooting on internal parts and glass. The logs may need to be repositioned slightly to avoid excessive fl ame impingement. Fig. #29 Fig. #31 Fig. #30 Fig. #32 060906-16 TC54.NG02.C...
  • Page 12 Fig. #33 Fig. #34 Fig. #35 060906-16 TC54.NG02.C...

  • Page 13: Burner Flame Adjustment

    4. Rotate the shutter to increase or decrease the amount of primary air. PRIMARY AIR SHUTTERS The fl ame should be just orange and “lazy” . It should NEVER be set to create soot on internal parts and glass. Fig. #36 060906-16 TC54.NG02.C...

  • Page 14: Replacement Parts

    Replacement Parts ITEM DESCRIPTION PART NO. LOG GRATE ASSEMBLY ..................TC54.8181 LOWER BURNER ASSEMBLY ................TC54.90859 PILOT BRACKET ......................9279.002 PLOT ASSEMBLY ...................... 5005.025 MANIFOLD WELDED ASSEMBLY ..............TC42.90881WLD FITTING, DORMONT, BURNER SUPPLY ..............5019.221 ORIFICE (NG) #28 ......................5022.14 ORIFICE (LP) #43 ......................5021.32 FLEX, 1/4”...
  • Page 15 Notes 060906-16 TC54.NG02.C...
  • Page 16 TECHNICAL SUPPORT: 1-877-715-2664 www.townandcountryfi replaces.net 2975 Allenby Rd.., Duncan, BC V9L 6V8 Printed in Canada...
