INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be
kept together. Refer to the Installation and Operating Instructions for
proper gas supply, safety requirements and operating instructions
240223-18

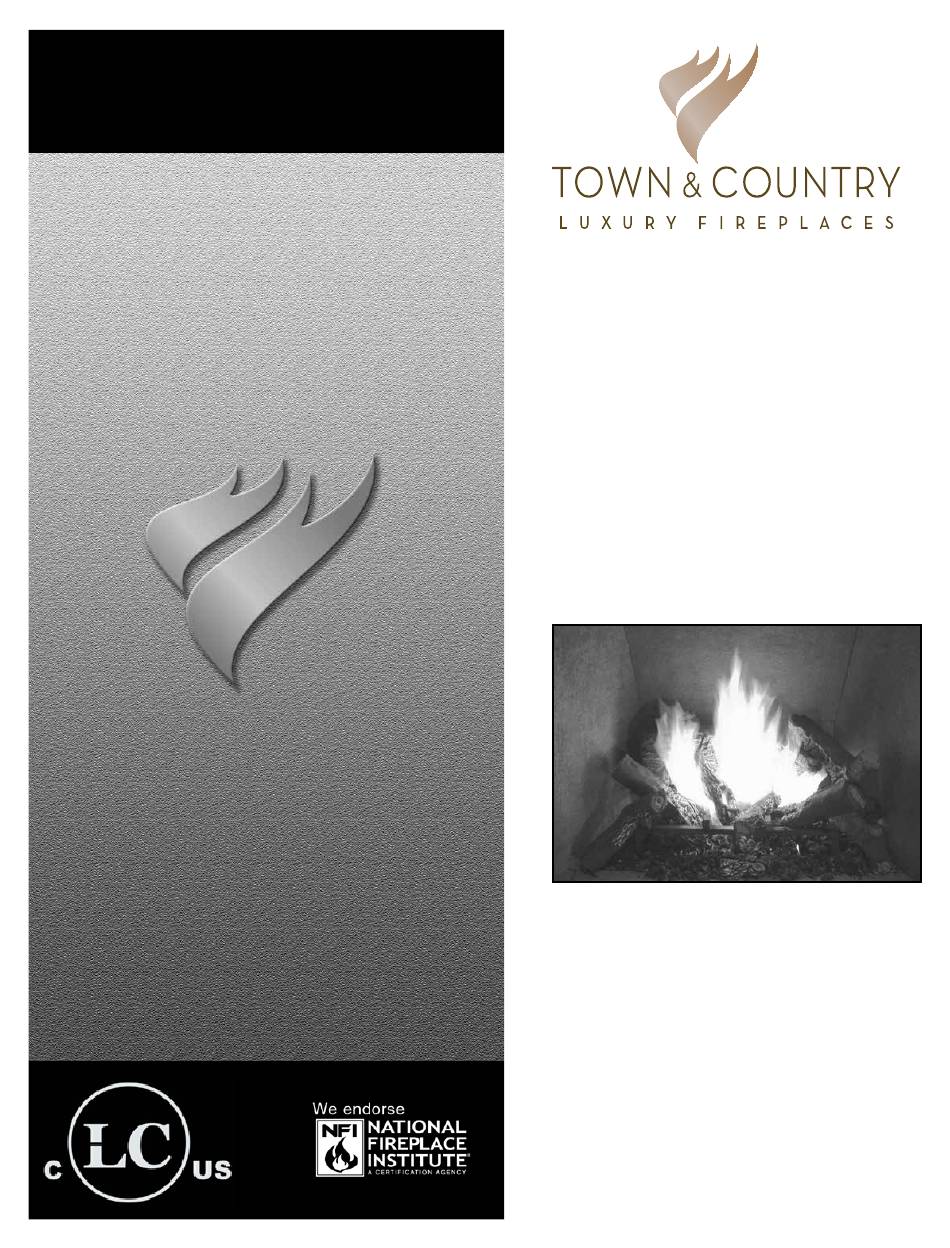

TC36D
HEARTWOOD
BURNER KIT
INSTRUCTIONS
SKU# 22150019
For TC36D & TC36D Arch
Series D
SKU# 22150019
100005910

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22150019 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces 22150019

Summary of Contents for Town & Country Fireplaces 22150019

  • Page 1 Operating Instructions supplied with the fireplace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC36D HEARTWOOD BURNER KIT INSTRUCTIONS SKU# 22150019 For TC36D & TC36D Arch Series D 240223-18 SKU# 22150019 100005910...

  • Page 2: Contents Of Package

    Contents of Package Figure 1: TC36 Heartwood burner kit parts. A. BURNER ASSEMBLY (including pilot and manifold) B. LOG GRATE C. TC36 LOGS D. EMBER MATERIAL E. HARDWARE PACKAGE F. COAL CHUNKS G. VERMICULITE SKU# 22150019 240223-18...

  • Page 3: Burner Installation

    Ensure that there are no leaks. Feed the ignition and sensor wires through the bulkhead plate and gasket to the firebox(Fig. # 3) Ignition and sensor wires Pilot gas supply Main gas supply connection connection (Do not disconnect) Figure 3: Gas supply tubes and Ignition/Sensor wire routing. SKU# 22150019 240223-18...
  • Page 4 Ensure that the front edge of the burner is flush with the front of the shield.(Figure 4). 4. Attach the ignition and sensor wires to the module. (Fig.#5). Flame sensor wire (white) Ignition wire (red) Interface module Figure 5: Attach Ignition and Sensor wires. SKU# 22150019 240223-18...
  • Page 5 Ember material placement and amount will affect flame appearance. More ember material results in lower flame height. Add or remove as needed until desired flame affect. Reduce the amount used on Propane models, as too much will create soot. SKU# 22150019 240223-18...
  • Page 6 Figure 7: Embers only in this area. Figure 8: Embers, coal chunks and vermiculite. SKU# 22150019 240223-18...

  • Page 7: Log Placement

    / or pins. Engage each pin in the corresponding holes. The four smaller logs do not have holes or pins. They rest in position. Locate as per the diagrams (fig. # 9-14) Figure 9: Log #1 Figure 10: Log #2 SKU# 22150019 240223-18...
  • Page 8 Figure 11: Log #3 Figure 12: Log #4 SKU# 22150019 240223-18...
  • Page 9 Figure 13: Log #5 Figure 14: Log #6 SKU# 22150019 240223-18...
  • Page 10 Figure 15: Log #7 Figure 16: Log #8 SKU# 22150019 240223-18...
  • Page 11 Figure 17: Log #9 Note: Improper placement of logs will cause sooting on internal parts and glass. The logs may need to be repositioned slightly to avoid excessive flame impingement. Figure 18: TC36 Heartwood Log Set SKU# 22150019 240223-18...

  • Page 12: Propane Conversion

    1. Ensure the burner, pilot and gas supply are turned off, and the appliance has cooled. 2. Remove the two screws securing the manifold assembly to the burner (Figure 19). 3. Remove the manifold assembly from the burner (Figure 20). Figure 20: Orifice exposed. Figure 19: Unscrewing manifold from the burner. SKU# 22150019 240223-18...
  • Page 13 9. Slide the pilot adjustment band over and ensure that the hole in the orifice band is showing. Figure 24 shows the pilot band in natural gas position. Figure 25 shows the pilot band in propane position. Figure 23: Loosening the pilot head. SKU# 22150019 240223-18...
  • Page 14 Kit Number 5052.52001-B Company Address The above accepts the responsibility that this conversion has been properly performed. Figure 26: Propane conversion label. For complete valve installation instructions, refer to the instruction book included in the SIT conversion kit. SKU# 22150019 240223-18...

  • Page 15: Gas Pressure Test

    CORRECT GAS PRESSURE REQUIREMENT: Supply Pressure Natural Gas Propane (For the purpose of input adjustment) Minimum 5.0” wc 12.5” wc Maximum 13.9” wc 13.9” wc Manifold Pressure Maximum 3.5” wc 10.0” wc Minimum 1.6” wc 6.4” wc SKU# 22150019 240223-18...

  • Page 16: Flame Adjustment

    3) Remove the air deflector from the log grate. 4) Loosen the screw in the Primary Air Shutter. 5) Rotate the shutter to increase or decrease the amount of primary air. 6) Re assemble in reverse order. PRIMARY AIR SHUTTER Figure 30: Shutter adjustment SKU# 22150019 240223-18...

  • Page 17: Parts Diagram

    FRONT RIGHT LOG (f) LOG WITH HOLE (d) RIGHT BASE LOG (g) RIGHT CENTER LOG (e) CENTER TWIG (h) FRONT RIGHT LOG (f) CENTER BASE CHUNK (i) RIGHT BASE LOG (g) CENTER TWIG (h) CENTER BASE CHUNK (i) SKU# 22150019 240223-18...
  • Page 18 © 2017 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
