Integrated AMR Angle Sensor and Signal Conditioner with Differential Outputs
FEATURES
Full featured evaluation board for the
►
PC control in conjunction with the System Demonstration Plat-
►
form (SDP) (EVAL-SDP-CS1Z, SDP-S or EVAL-SDP-CB1Z,
SDP-B)
PC software for data measurement and display
►
EVALUATION KIT CONTENTS
EVAL-ADA4570SDZ evaluation board
►
ADA4570 magnet stimulus
►
Dipole magnet
►
Hand movable mounting
►
ADDITIONAL HARDWARE REQUIRED

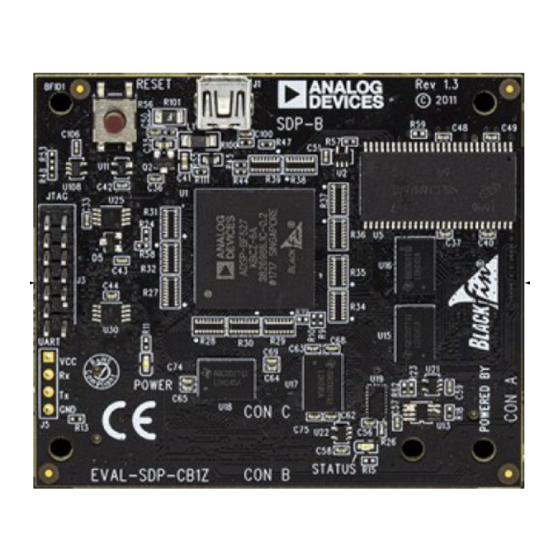

The SDP-S or the SDP-B controller board with a USB cable
►
ADDITIONAL SOFTWARE REQUIRED
EVAL-ADA4570SDZ Software Installer
►
GENERAL DESCRIPTION
The ADA4570 is an anisotropic magnetoresistive (AMR) sensor
with integrated signal conditioning amplifiers and analog-to-digital
converter (ADC) drivers. The ADA4570 produces two differential
analog output pairs that indicate the angular position of the sur-
rounding magnetic field.

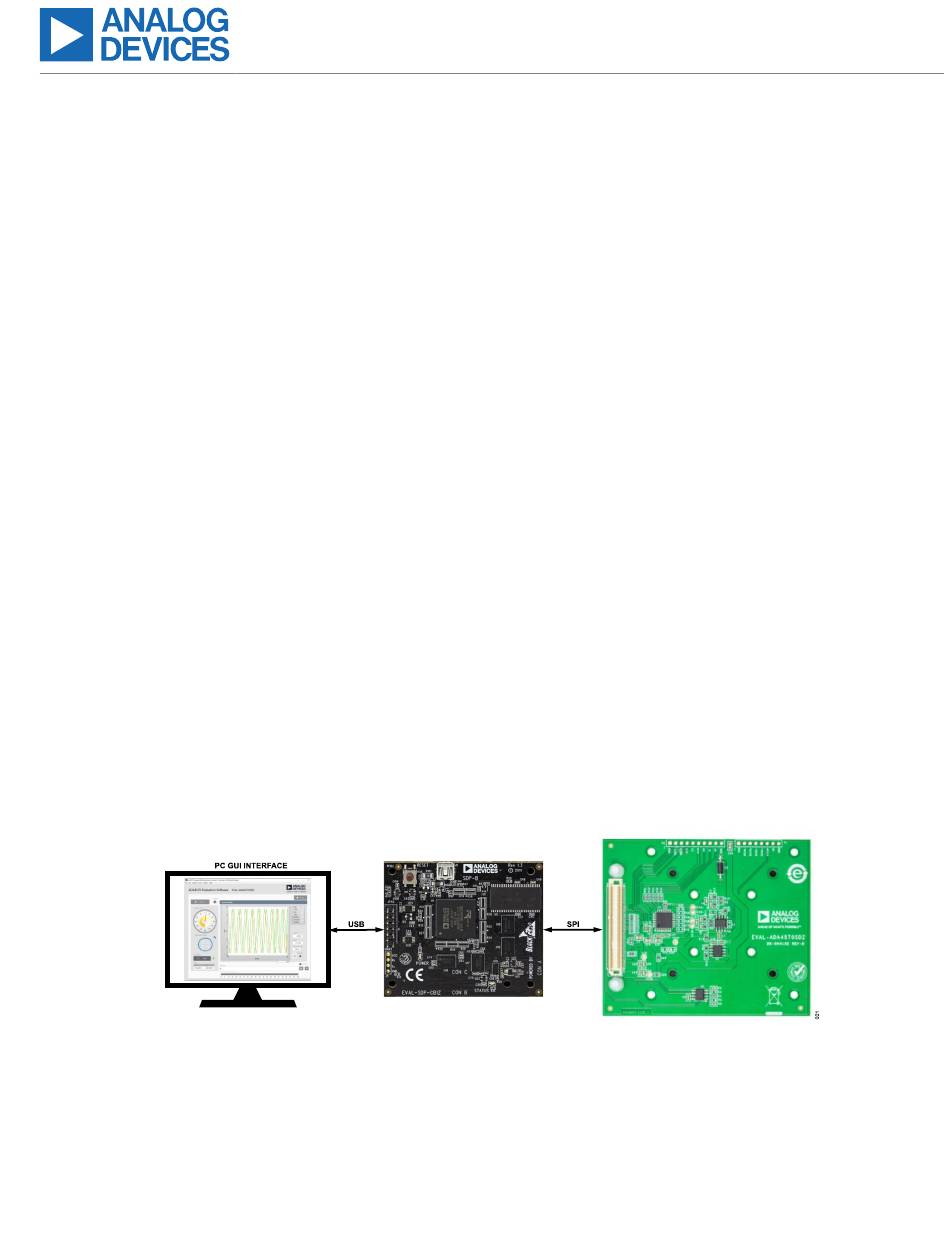

ADA4570 END OF SHAFT MAGNETIC EVALUATION SYSTEM
Figure 1. ADA4570 End of Shaft Magnetic Evaluation System Consisting of the PC GUI, the SDP, and the EVAL-ADA4570SDZ
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADA4570
User Guide | EVAL-ADA4570
The EVAL-ADA4570SDZ evaluation board features the ADA4570 in
an end of shaft magnet configuration.
The evaluation kit is composed of the EVAL-ADA4570SDZ and
a magnetic stimulus on a printed circuit board (PCB) mount. To in-
terface to a computer, the EVAL-SDP-CS1Z (SDP-S) or the EVAL-
SDP-CB1Z (SDP-B) is required which must be ordered separately.
An illustration of the ADA4570 evaluation system consisting of
the PC graphic user interface (GUI), the SDP, and the EVAL-
ADA4570SDZ is shown in
Figure
to either the SDP-S or the SDP-B interface card.
The EVAL-ADA4570SDZ allows a detailed evaluation of the
ADA4570 where the software GUI demonstrates angular measure-
ment and performs system level calibration.
The EVAL-ADA4570SDZ also provides access via a standard
header for power and digital signals to the on-board ADC interface
(AD7266), which allows evaluation of the ADA4570 with a user
preferred microcontroller platform and to start the system software
development. Users can also access the analog output signals
of the ADA4570 to a user preferred ADC with a microcontroller
platform.
The PCB is designed so that the sensor board can be detached
from the SDP interface to provide a smaller form factor. Power
supplies can be sourced from either the USB port via the SDP card
or an external bench supply.
For full details, see the
ADA4570
used in conjunction with this user guide when using the EVAL-
ADA4570SDZ.
UG-2004
1. In this user guide, SDP refers
data sheet, which must be
Rev. 0 | 1 of 17
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADA4570SDZ
Summary of Contents for Analog Devices EVAL-ADA4570SDZ
-
Page 1: Features
ADA4570SDZ. ADA4570 END OF SHAFT MAGNETIC EVALUATION SYSTEM Figure 1. ADA4570 End of Shaft Magnetic Evaluation System Consisting of the PC GUI, the SDP, and the EVAL-ADA4570SDZ PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. 0 | 1 of 17... -
Page 2: Table Of Contents
Evaluation Board Schematics and Silkscreen..13 Getting Started............3 Ordering Information ...........16 Quick Start Steps..........3 Evaluation Board Bill of Materials.....16 Evaluation Board Hardware........4 Notes..............17 Configuration of the EVAL-ADA4570SDZ..4 REVISION HISTORY 7/2021—Revision 0: Initial Version analog.com Rev. 0 | 2 of 17... -
Page 3: Getting Started
The SDP USB Driver Installer can be found by following the Soft- ware tab on the EVAL-SDP-CS1Z (SDP-S) or the EVAL-SDP-CB1Z (SDP-B) product pages. Figure 2. Hardware Configuration Showing the Demonstration Magnet Assembly, EVAL-ADA4570SDZ, and the SDP-B analog.com Rev. 0 | 3 of 17... -
Page 4: Evaluation Board Hardware
ADA4570SDZ, the current limitation of the external power supply must be set to 100 mA as a precaution. Figure 3. Connector P3 to Interface SDP and EVAL-ADA4570SDZ SDP and Analog Devices Software Controlled The ADA4570 evaluation system can be powered directly from the host PC USB by the SDP controller board via the P3 connec- Table 1. - Page 5 For full details about the ADA4570 sensor interface and how to A0, A1, A2 Digital inputs Digital inputs to control the input channel connect the device, refer to the EVAL-ADA4570SDZ schematics of the ADC. The Ax pins can control which output configuration is sampled by the on- (see...
-
Page 6: Evaluation Board Quick Start
PC. SOFTWARE INSTALLATION PROCEDURES Installing the EVAL-ADA4570SDZ Evaluation Software To install the EVAL-ADA4570SDZ evaluation software, take to the following steps: Figure 10. License Agreement Window 1. Start the Windows operating system of the PC and download 6. - Page 7 EVAL-ADA4570SDZ Evaluation Software can be opened. Uninstalling the Software Figure 13. SDP Driver Setup Wizard To uninstall the EVAL-ADA4570SDZ Evaluation Software, take the following steps: 3. When the Choose Install Location window appears (see 1. Launch the Uninstall Wizard by navigating to Start > Control Figure 14), click Install.
-
Page 8: Evaluation Board Software
EVAL-ADA4570 EVALUATION BOARD SOFTWARE STARTING THE EVALUATION GUI To use the EVAL-ADA4570SDZ with the SDP controller board, start by connecting the two boards together with the CON A connector of the SDP. When launching the GUI, the SDP controller board must be recognized by the GUI before proceeding. -
Page 9: Overview Of The Main Ada4570 Evaluation Software Gui Window
Click Start to begin the data acquisition, and the Captured Data Figure 17 shows the main EVAL-ADA4570SDZ GUI window when window of the GUI displays the selected signals. starting the ADA4570 Evaluation Board Software. Figure 17. ADA4570 Evaluation Board Software (EVAL-ADA4570SDZ) Main Window analog.com Rev. 0 | 9 of 17... - Page 10 When the EVAL-ADA4570SDZ operates in burst read mode, the In the application, it is important that these two channels are GUI samples a burst of samples, defined in the Samples to simultaneously sampled to avoid the introduction of errors resulting Capture field, without updating the display.
- Page 11 Figure Figure 23. Offset Calibration Pane Temperature Calibration The EVAL-ADA4570SDZ GUI also allows the user to perform a Figure 21. Electrical Angle Plot single point temperature calibration for the temperature channel indicated in...
- Page 12 User Guide EVAL-ADA4570 EVALUATION BOARD SOFTWARE Data Logging The EVAL-ADA4570SDZ GUI provides functionality that allows the user to store the collected data into a file for post processing and analysis. Figure 26. Data Log Click the File symbol, shown in...
-
Page 13: Evaluation Board Schematics And Silkscreen
User Guide EVAL-ADA4570 EVALUATION BOARD SCHEMATICS AND SILKSCREEN Figure 27. ADA4570 with AD7266 analog.com Rev. 0 | 13 of 17... - Page 14 User Guide EVAL-ADA4570 EVALUATION BOARD SCHEMATICS AND SILKSCREEN Figure 28. SDP Connector and Voltage Supply analog.com Rev. 0 | 14 of 17...
- Page 15 User Guide EVAL-ADA4570 EVALUATION BOARD SCHEMATICS AND SILKSCREEN Figure 29. EVAL-ADA4570SDZ Silkscreen analog.com Rev. 0 | 15 of 17...
-
Page 16: Ordering Information
ERJ-3EKF1503V R44, R47, R48, R51 to R53 10 kΩ resistors, 1%, 1/10 W, 0603 Panasonic ERJ-3EKF1002V Differential/single-ended input, dual, simultaneous Analog Devices AD7266BSUZ sampling, 2 MSPS, 12-bit, 3-channel SAR ADC C EEPROM, 32 kb, 8-lead SOIC Microchip Technology 24LC32A/SN 20 V, 500 mA, low noise, CMOS low dropout (LDO) -
Page 17: Notes
Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
