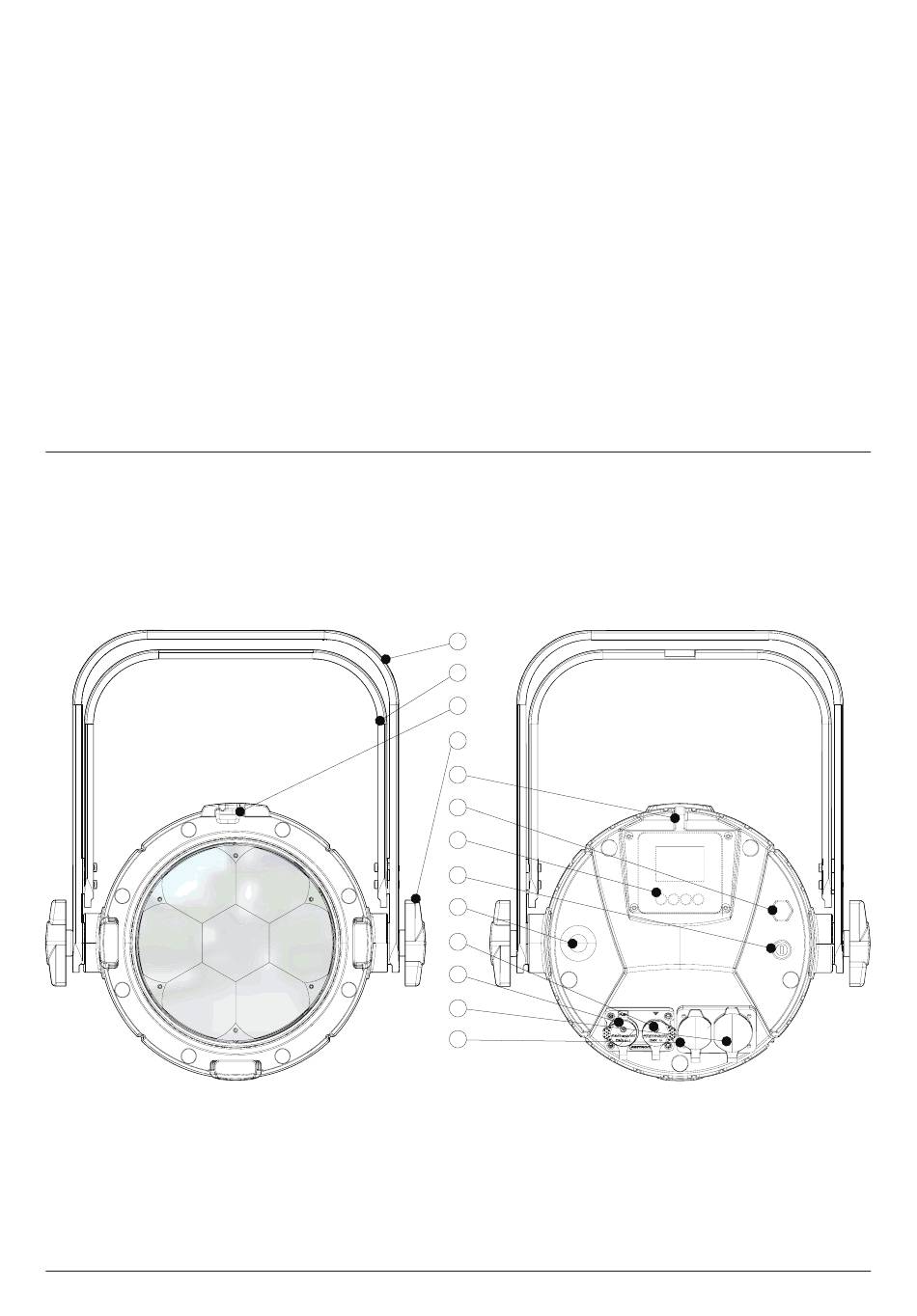

6 - PRODUCT OVERVIEW

1. BRACKET for hanging safe.
2. BRACKET for floor positioning.
3. HOLDER CLIP for filter frame and barndoor accessory.
4. KNOB for bracket.
5. SAFETY EYE to attach safety cable.
6. GORE VALVE.
7. USER INTERFACE with display and buttons for access to the control panel functions.
8. MAIN FUSE HOLDER: replace a burnt-out fuse by one of the same type only (3.15A).
9. ANTENNA.
10. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
11. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
12. POWER OUT: power output for connection of multiple units in series.
13. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
08
1
2
3
4
5
6
7
8
9
10
11
12
13
PROLIGHTS - Jet PAR7ZIP
MODE/
UP DOWN ENTER
ESC
Fig 03
