QUICK START GUIDE
FEATURES
• 1/2.7" BSI and NIS (Backside-Illuminated and Near-Infrared Sensing)
4 MegaPixel Progressive Scan CMOS STARLIGHT Sensor
• Up to 4 MegaPixel (2560 × 1440) Max Resolution @ 30fps
• Ultra High-Speed Pan / Tilt / Zoom with 25× Optical Zoom Lens
• 3.6s Zoom Speed (Optical, Wide-Tele), F1.65~F3.8 Aperture Range
• Smart IR with up to 525' (160m) IR Range
• Smart H.265+/H.265/H.264+/H.264/MJPEG Compression
• Real-Time Auto Zoom Tracking: Transcendent Gen. IV IP PTZ Cameras Feature the Most
Advanced PTZ Auto-Tracking Available, Powered by A.I.
• Gen. IV Advanced Analytics: Intrusion Detection, Line Crossing, Region Entrance / Exit,
Target Counting [All by Human / Vehicle Classification] Scene Change, Face Detection
• Backlight / Highlight Compensation, Auto-White Balance, Gain Control, Day / Night
• True 120dB WDR (Wide Dynamic Range)
• 360 Presets, 8 Cruises, up to 16 Presets / Cruise + 4 Tracks (3+ Min. Recording / Track)
• 1 Ch. Audio In + Out*, 1 Ch. Alarm In + Out
• Advanced Starlight Technology
• True Day/Night with ICR Cut Filter with Auto/Manual Gain Control
• 360° Endless Pan Range, Configurable Speed: .1~200°/s + 240°/s Preset
• Built-in MicroSD Card Slot, Supporting Local Recording up to 256GB
• IP66 Ingress Protection + IK10 [Excluding Glass] Impact Rating
• 12VDC Power or PoE+ (802.3.at, class 3)
*12VDC 3Amps Power Supply Included, **PoE Injector Required for PoE Power: VT-POE60 / VT-POE95 [see pg. 13]
• Reset Button, Heater, Fan, Water Removal with Quick Spinning
• 1 RJ45 10M/100M Adaptive Ethernet (Supports PoE 802.3.at)
• Wall Mount, Pendant Mount, Semi-Flush Mount, Corner Mount Adapter and
Pole Mount Adapter Sold Separately
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance

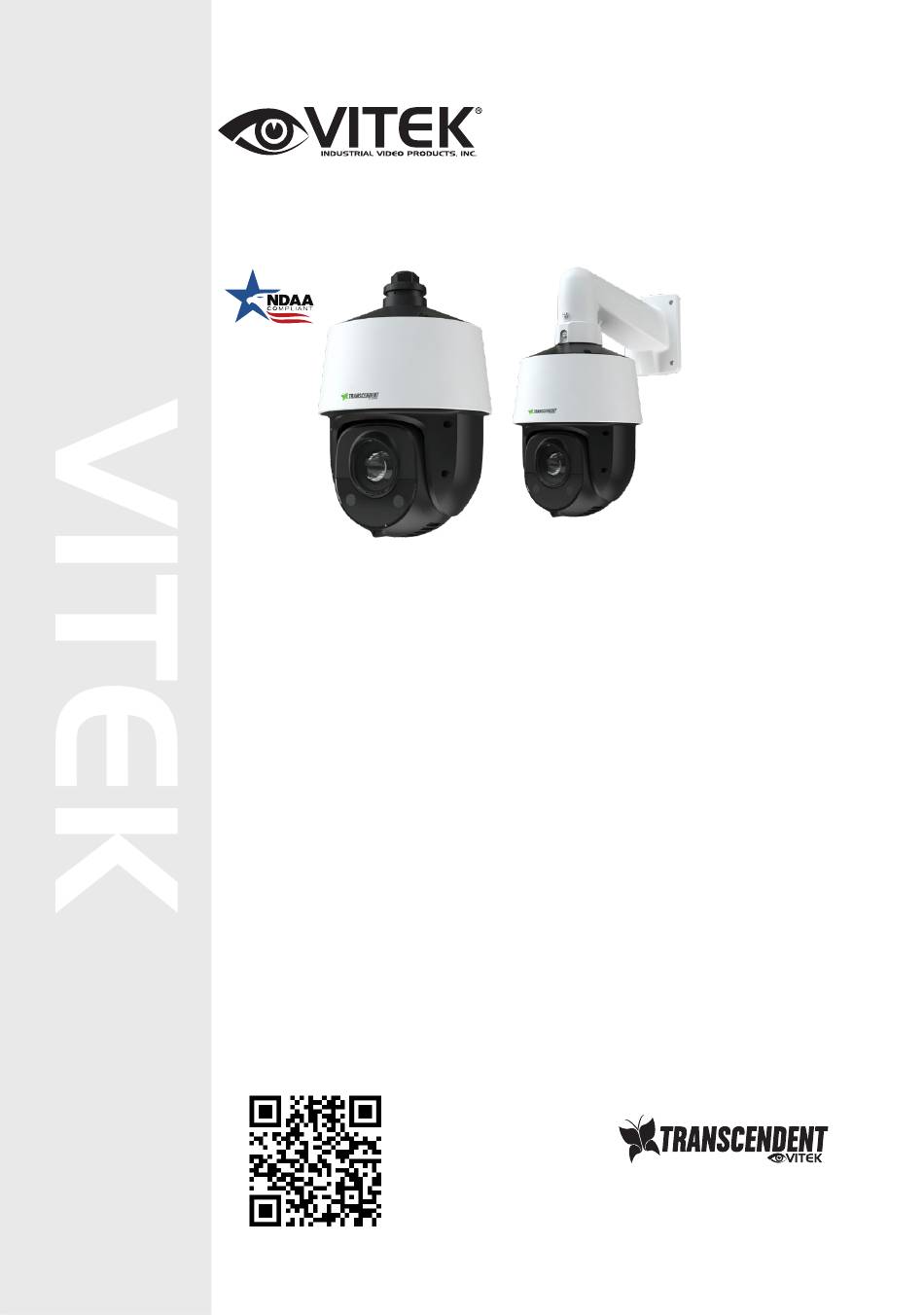

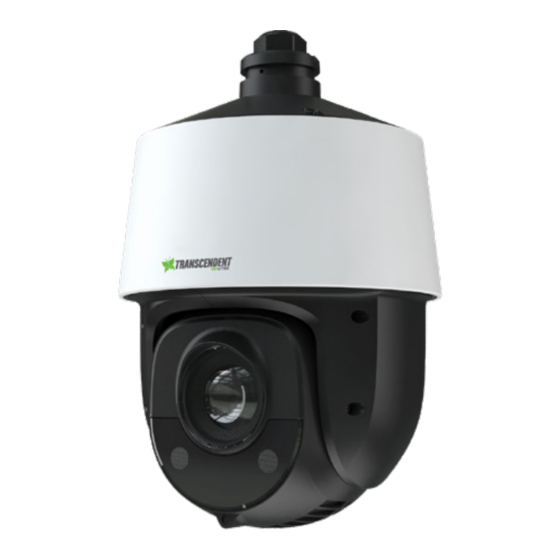

VT-TPTZ25HRAN-4PNL
4 MegaPixel 25× IP PTZ with A.I.
[see pg. 13]
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Gen. IV
*Shown with wall mount
VT-TPT23HR-WM
[SOLD SEPARATELY]
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VT-TPTZ25HRAN-4PNL
Summary of Contents for Vitek Transcendent VT-TPTZ25HRAN-4PNL
- Page 1 VT-TPTZ25HRAN-4PNL Transcendent Gen. IV 4 MegaPixel 25× IP PTZ with A.I. QUICK START GUIDE *Shown with wall mount VT-TPT23HR-WM [SOLD SEPARATELY] FEATURES • 1/2.7” BSI and NIS (Backside-Illuminated and Near-Infrared Sensing) 4 MegaPixel Progressive Scan CMOS STARLIGHT Sensor • Up to 4 MegaPixel (2560 × 1440) Max Resolution @ 30fps •...
-
Page 2: Cable Connections
Overview 1. LAN 2. HP Audio Out 3. MIC In 4. Alarm In / Alarm Out 5. Power 6. Grounding Wire 7. Safety Cable Cable Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect cameras’ ethernet adaptor. If not powering the camera with PoE+, also connect the power cable to an approved 12VDC Power Supply. -
Page 3: Alarm Connections
Alarm Connections 1. Alarm Input a) There is one independent alarm input port (ALM-IN1), and one grounding port (ALM-GND). b) Alarm input (NO type): Connect DC5V~DC12V voltage between the alarm input port (ALM-IN1) and the grounding port (ALM-GND). c) Alarm input (NC type): DIsconnect the voltage between the alarm input port (ALM-IN1) and the grounding port (ALM-GND) 2. - Page 4 Installation Using Wall Mount VT-TPT23HR-WM *see page 10 for mount dimensions 3.10” (mount sold separately) .32” 3.94” 2. Drill the screw holes in the wall according to the template. 1. Fasten the adapter to Then insert the plastic plugs the bracket. into the holes.
- Page 5 2. Mount the adapter tube to the 3. Secure the pendent mounting bracket and secure it with a screw. bracket to the ceiling. Adapter tube 4. Connect cables, then hook the safety wire to the adapter stem. 5. Securely attach the camera to the adapter stem with screws.
- Page 6 8.35” 8.35 Attach s Thr...
-
Page 7: Lan Configuration
LAN Configuration S witch N etwor k C able N etwor k C able MENU P T Z C amer a C omputer R outer The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 8 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 9: Wan Configuration
2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. - Page 10 Installation Mount Dimensions VT-TPT23HR-WM 3.94” 10.07” VT-TPT20HR-PM 2.48” 7.22” 3.51” VT-TPT20HR-FM 9.17”...
-
Page 11: Detailed Specifications
DETAILED SPECIFICATIONS Image Sensor 1/2.7” BSI (Backside-Illuminated) and NRI (Near-Infrared Sensing) Progressive Scan STARLIGHT CMOS Sensor Pixel Size 2.0um Effective Pixels 2884(H) × 1624(V) Resolution 4.0 MegaPixel (2560 ) Resolution @ 30fps Min. Illumination Color: 0.01 Lux @ (F1.65 AGC On) B/W: 0.002 Lux @ (F1.65 AGC On), 0 Lux w/IR Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, (Adjusted by Client) Image setting Shutter Speed... - Page 12 DETAILED SPECIFICATIONS CONT’D. Main Stream 30fps: 2560×1440,1920×1080,1280×960,1280×720 Sub Stream / Third Stream Sub: 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) / Third: 30fps @ 1920×1080 (1080p) and Lower Video Compression (Standards) H.265+/H.265/H.264+/H.264/MJPEG (H.265: H.265 / HEVC Codec MP, Level 5.0, H.264: H.264/AVC codec BP/MP/HP, Level 5.1) 64Kbps to 8Mbps Video Bit Rate Audio Compression / Bit Rate...
- Page 13 ACCESSORIES AVAILABLE FOR VT-TPTZ25HRAN-4PNL MOUNTS [SOLD SEPARATELY] VT-TPT20HR-FM VT-TPT23HR-WM VT-TPT20HR-PM VT-TPLMT-W VT-TCNMT-W Semi-flush Mount Optional Universal Optional Ceiling/ Transcendent Transcendent Wall Mount for Pedestal Mount for Universal Pole Universal Corner Transcendent Transcendent Mount Adapter - Mount Adapter - IP PTZs IP PTZs White (reqs.
- Page 14 ALSO CONSIDER THESE OTHER GREAT TRANSCENDENT IP PRODUCTS! VITEK Network Video Recorders Supporting up to 12MP Resolution & Real Time Video! Pair with VITEK Transcendent Series NDAA Compliant Network Recorders: VT-TNR818PFN, VT-TNR1646PFN, and VT-TNR3216PFN with Built-in PoE and Gen IV.
- Page 15 Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 16: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
