FEATURES
• 1/3" 2.1 MegaPixel CMOS Sensor
• 30fps live view @ 1920 x 1080p
• True Day/Night by IR Cut Filter
• Built-in 5mm to 50mm Lens offering 10x Optical Zoom
• 6 Integrated IR LEDs with up to 165' IR Range
• 2DNR Noise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• Max manual speed 480°/sec
• 360°continuous rotation
• 16:9 Video format
• RS485 Communication / COC (Control Over Coax)
• 5.5" double layer metal body construction with IP66 Weather Resistance
• Over 1500' HD Video Transmission (Depending on cable characteristics and
integrity)
• Includes Wall Mount Bracket & Power Supply
• 12VDC Operation
• 3 Year Warranty
OPTIONAL ACCESSORIES:
VVT-TKBD2
VT-TPT-CNMT
Transcendent 3D
PTZ Corner Mount
Keyboard Controller for
Adapter Bracket for
Transcendent HD-TVI
Transcendent HD-TVI &
PTZ Cameras
IP PTZ Cameras

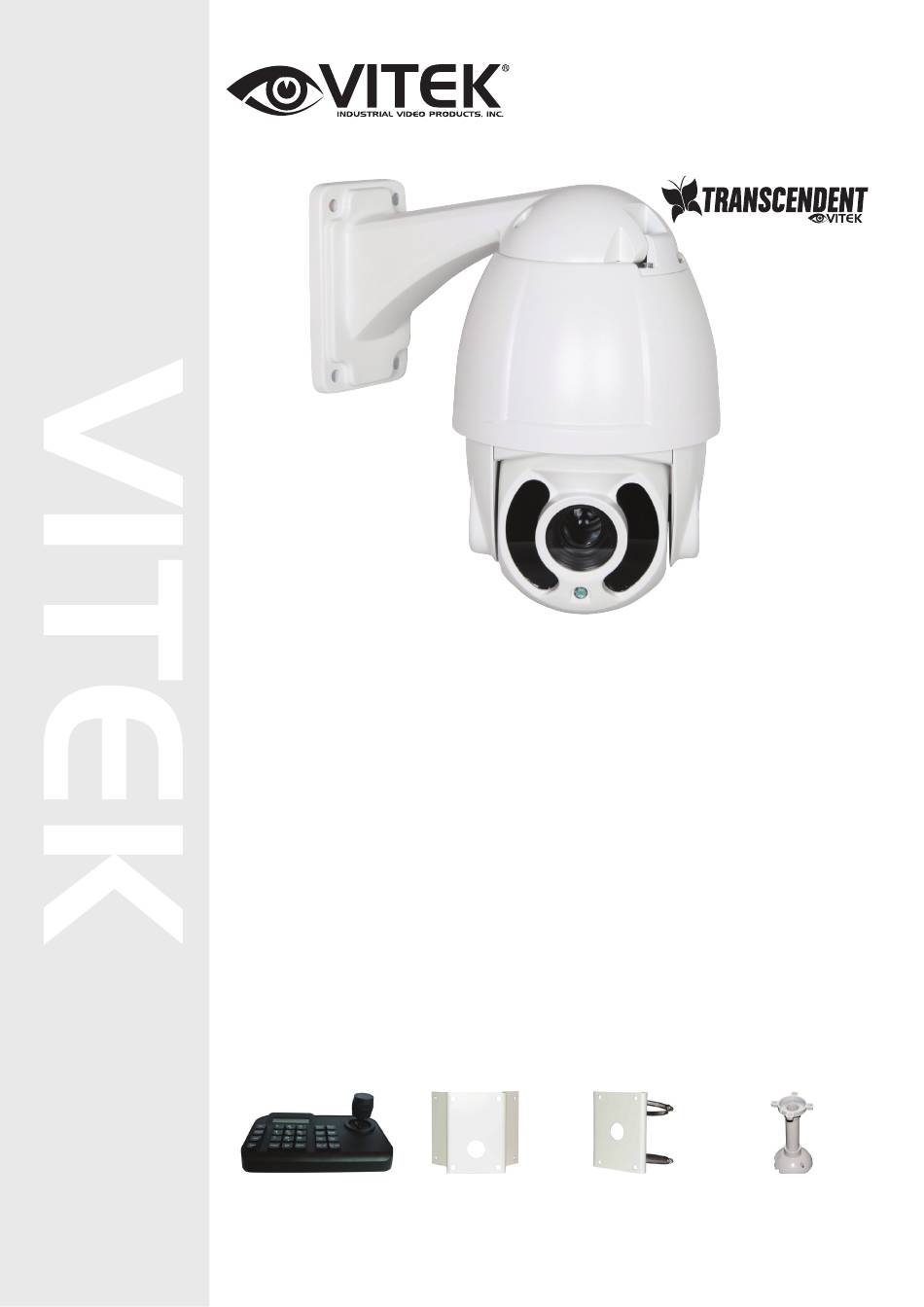

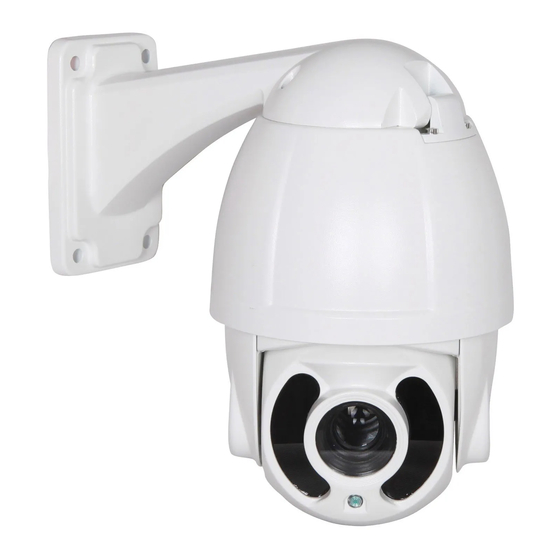

VT-TPTZ10HR-2T
2.1 MegaPixel 10x HD-TVI PTZ Camera
with 6 IR LEDs for up to 165' IR Range
VT-TPT-PLMT
VT-TPT-PDM2
PTZ Pole Mount Adapter
PTZ Pedestal Mount for
Bracket for Transcendent
Small 5.5" Transcendent
HD-TVI & IP PTZ
PTZ Cameras
Cameras
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek TRANSCENDENT VT-TPTZ10HRF-2T
Summary of Contents for Vitek TRANSCENDENT VT-TPTZ10HRF-2T
- Page 1 VT-TPTZ10HR-2T 2.1 MegaPixel 10x HD-TVI PTZ Camera with 6 IR LEDs for up to 165’ IR Range FEATURES • 1/3” 2.1 MegaPixel CMOS Sensor • 30fps live view @ 1920 x 1080p • True Day/Night by IR Cut Filter • Built-in 5mm to 50mm Lens offering 10x Optical Zoom •...
- Page 2 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.
-
Page 3: Table Of Contents
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera TABLE OF CONTENTS 1 PRODUCT INTRODUCTION ........................ 3 ............................ 3 ACKAGE ONTENTS ..........................3 UNCTION ESCRIPTION 2 INSTALLATION ............................ 5 ............................5 OAXIAL ONTROL .......................... 5 NSTALLATION OF RACKETS 2.3.1 Wall Mounted (Wall Mount Bracket Included) ................5 2.3.2 Corner Mounted (Optional – Part# VT-TPT-CNMT) ................6 2.2.3 Pole Mounted (Optional – Part# VT-TPT-PLMT) ................7 2.3.4 Ceiling Mounted (Optional – Part# VT-TPT-PDM2) ................8 ............................10 ONNECTION 3. FUNCTION INSTRUCTION . -
Page 4: Product Introduction
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 1 PRODUCT INTRODUCTION 1.1 PACKAGE CONTENTS IP IR Speed dome Wall mount bracket Power supply Screws kits User manual 1.2 FUNCTION DESCRIPTION Multilanguage OSD Menu The language displayed on screen menu, the available languages are English, Spanish, French, Portuguese, Polish, Deutsch and Italian. - Page 5 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera Ratio Speed Intelligent pan and tilt speed is variable depend on the zoom factor. When zooming in, the speed will become slower and when zooming out, the speed will become quicker. A-B Scan Dome will scan between to preset points Pan Scan Dome will continuously scan 360°...
-
Page 6: Installation
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 2 INSTALLATION 2.1 COAXIAL CONTROL The dome supports coaxial control and also supports RS-485 communication signal. 2.3 INSTALLATION OF BRACKETS. 2.3.1 Wall Mounted (Wall Mount Bracket Included) Fig 1 Installation conditions: Wall mounted dome can be used in a hard wall structure whose thickness should be enough to install expansion bolts in indoor and outdoor environment. -
Page 7: Corner Mounted (Optional - Part# Vt-Tpt-Cnmt)
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 2.3.2 Corner Mounted (Optional – Part# VT-TPT-CNMT) Fig 4 Installation conditions: Corner mounted dome can be used in a hard wall structure with an angle of 90° whose thickness should be enough to install expansion bolts in indoor and outdoor environments. The wall must bear at least 4 times the weight of the dome. -
Page 8: Pole Mounted (Optional - Part# Vt-Tpt-Plmt)
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera c. As shown in Fig7, fix the wall hanging bracket with all cables power through it on the corner mounted attachment. Fig 7 2.2.3 Pole Mounted (Optional – Part# VT-TPT-PLMT) Fig 8 Installation conditions: Pole mounted domes can be used on a hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps. -
Page 9: Ceiling Mounted (Optional - Part# Vt-Tpt-Pdm2)
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera b. As shown in Fig 10, attach the wall hanging bracket with all cables through it on the pole mounted attachment. Fig 10 2.3.4 Ceiling Mounted (Optional – Part# VT-TPT-PDM2) Fig11 Installation conditions: Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment. - Page 10 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera b. As shown in Fig 13, at first unscrew the M4 screw at the side of the base of ceiling and split the base of ceiling and boom. Then make the three groups of cables of power, video/control and alarming into the side recessing seal groove of the ceiling connector bottom and through the core hole of the base of ceiling mounted.
-
Page 11: Connection
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 2.4 CONNECTION Connection of RS485 Before connecting, please remove the power and read carefully the instructions of all connected devices. (If the camera and the DVR support coaxial control, please ignore this step). Fig 24 3. -
Page 12: Basic Function
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 3.2 BASIC FUNCTION Dome Running Control joystick or up, down, left and right key on the keyboard. Zoom Press ZOOM- button for zooming out Press ZOOM+ button for zooming in Focus Press FOCUS- button, use to focus near. Press FOCUS+ button, use to focus far away. -
Page 13: Screen Character Operation
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 3.4 SCREEN CHARACTER OPERATION Call preset 95 to enter the OSD, call preset 94 to exit the OSD. Up or Down: Move the option in the OSD, change the option in the OSD. ²... -
Page 14: Osd Menu
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 4 OSD MENU 4.1 MENU INDEX... -
Page 15: System Information
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 4.2 SYSTEM INFORMATION <SYSTEM> <MAIN MENU> PROTOCOL PELCO D-P <SYSTEM> DOME ID <DOME> <CAMERA> COMM 2400.N.8.1 <DISPLAY> <LANGUAGE> TEMPERATURE 41.8℃ <TIMING TASK> VERSION V863R15122109 <ALARM> EXIT <RESET> EXIT When enter the OSD, it display Enter to the SYSTEM, you will see: MFG: Max 15 characters displayed on the screen. -
Page 16: Communication
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 4.3.1 Communication <COMM> <COMM RESET> DEVICE ID 125295 RESET TO DIAL THE CODE CHECK ID 125288 TARGET ID SOFT PROTOCOL AUTO BAUD RATE 2400 <COMM RESET> SAVE EXIT Fig4.3.1.1 Fig.4.3.1.2 DEVICE ID: It is auto generated by system. CHECK ID: To change the TARGET ID, please input the CHECK ID exactly same as the DEVICE ID displays on the screen. -
Page 17: Guard Tours
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera working mode, if the illumination on level is less than the ambient light, the picture will change to color, the IR illumination will turn off automatically. If the illumination on level is more than the ambient light, the picture will change to black &... -
Page 18: Pan Scan
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera PRESET A: On A-B scan, A point can be any preset PRESET B: On A-B scan, B point can be any preset. SCAN SPEED: A-B scan speed is 1 to 64 selectable. DWELL TIME: Dwell time between A to B is 2s to 60s selectable. -
Page 19: Privacy Zone( Optional)
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera PARK MODE: Park mode includes OFF, Park action, A-B scan, Pan scan, guard tour 01, pattern When park mode is OFF status, the dome doesn’t run park mode. Example: Running A-B scan at first, when the action stops unexpectedly, it enters the park mode to continue to run A-B scan. -
Page 20: Camera
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera PWR ON ACT: Power on action can be set as Memory, A-B scan, Pan scan, Park action, Pattern 1and No action, Guard tour 1. RATIO SPEED: Ratio speed can be set as ON or OFF status. AUTO FLIP: Auto flip can be set as ON or OFF status. -
Page 21: Language
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera P AND T: On screen, it displays the pan and tilt degree, user can enable or disable it. ZOOM: Displays the zoom level. ACTION: On the screen, it displays the current action, such as A-B scan, Call preset, Save preset, Call park action, Pan scan etc. -
Page 22: Reset
Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera 4.9 RESET <RESET> <DOME RESTART> <DOME RESTART> CONFIRM: SAVE DATA, <SYS DATA> DOME RESTART <CAM DATA> <PRESET> <SYS DATA> <CAM DATA> CONFIRM: FACTORY DEFAULT CONFIRM: FACTORY DEFAULT CONFIRM: Delete the presets information saved by the dome. 5. - Page 23 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera...
- Page 24 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera...
- Page 25 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera...
- Page 26 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera Specifications 1/3” 2.1 MegaPixel CMOS Sensor Sensor 1080P (1920x1080) Resolution Video Output Interface HD-TVI LEDs 6 Integrated High Power IR LEDs (850nm) IR distance Up to 165’ IR Range Support ambient light detection IR illumination on 1-15 grades selectable;...
- Page 27 Transcendent Series 2.1 MegaPixel 10x HD-TVI PTZ Camera CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TTAR Series Transcendent Series 4, 8, and 16 Channel HD-TVI/AHD/960H/IP Digital Video Recorders FEATURES • 4, 8, or 16 Channel HD-TVI/AHD/960H BNC Inputs + IP Camera Support •...
- Page 28 VITEK warrants to the purchaser that products manufac- tured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
