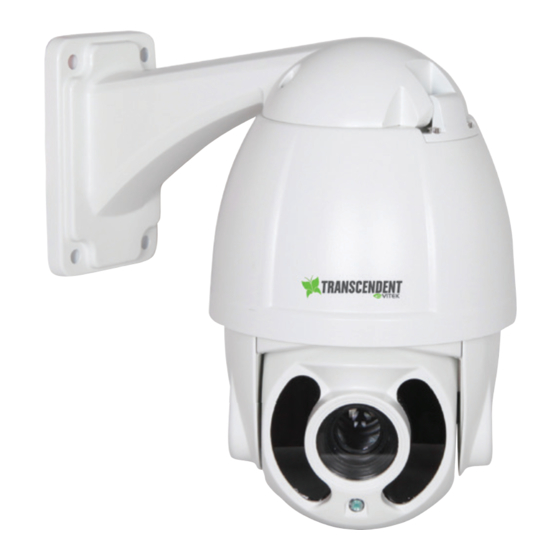

VT-TPTZ10HR-5N
FEATURES
• 1/3" 5.0 MegaPixel CMOS Sensor
• 2592x1944 @ 15fps / 2592x1520 @ 22fps
• H.265/H.264/MJPEG Triple Streaming
• True Day/Night by IR Cut Filter
• Built-in 5mm to 50mm Lens offering 10x Optical Zoom (VT-TPTZ10HR Models)
/ Built-in 4.8mm to 84mm Lens offering 18x Optical Zoom (VT-TPTZ18HR-5N)
• 6 Integrated IR LEDs with up to 165' IR Range (VT-TPTZ10HR Models) / 10
Integrated IR LEDs with up to 500' IR Range (VT-TPTZ18HR-5N)
• DigitalNoise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• Max manual speed 480°/sec
• 360°continuous rotation
• 16:9 Video format
• Double layer metal body construction with IP66 Weather Resistance
• Includes Wall Mount Bracket & Power Supply
• ONVIF Compliant
• 12VDC Operation
• 3 Year Warranty
OPTIONAL ACCESSORIES:
VT-TKBD1
VT-TPT-CNMT
Transcendent
PTZ Corner
3D Network
Mount Adapter
IP Keyboard
Bracket for
Controller with
Transcendent
Integrated 5" HD
HD-TVI & IP
LED Real-Time
PTZ Cameras
Display
VT-TPTZ10HR-5N
VT-TPTZ18HR-5N
5.0 MegaPixel H.265 Network IP PTZ
VT-TPTZ10HRF-5N
VT-TPTZ10HRC-5N
VT-TPT-PLMT
PTZ Pole Mount
Adapter Bracket
for Transcendent
HD-TVI & IP
PTZ Cameras
Cameras with IR LED Illumination
VT-TPTZ18HR-5N
VT-TPT-PDM1
VT-TPT-JB01
PTZ Pedestal
J-Box for cable
Mount for Large
Management
9" Transcendent
for Large 9"
PTZ Cameras
Transcendent
PTZ Cameras
Advertisement
Table of Contents
Related Manuals for Vitek TRANSCENDENT VT-TPTZ10HR-5N
Summary of Contents for Vitek TRANSCENDENT VT-TPTZ10HR-5N
- Page 1 VT-TPTZ10HR-5N VT-TPTZ18HR-5N 5.0 MegaPixel H.265 Network IP PTZ Cameras with IR LED Illumination VT-TPTZ10HR-5N VT-TPTZ10HRF-5N VT-TPTZ18HR-5N VT-TPTZ10HRC-5N FEATURES • 1/3” 5.0 MegaPixel CMOS Sensor • 2592x1944 @ 15fps / 2592x1520 @ 22fps • H.265/H.264/MJPEG Triple Streaming • True Day/Night by IR Cut Filter •...
- Page 2 Transcendent Series IP PTZ Cameras WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to...
-
Page 3: Table Of Contents
Transcendent Series IP PTZ Cameras TABLE OF CONTENTS 1 PRODUCT INTRODUCTION ........................3 1.1 P ..........................3 ACKAGE ONTENTS 1.2 F ........................... 3 UNCTION ESCRIPTION 2 INSTALLATION ............................4 2.1 I ............................4 NSTALLATION 2.1.1 WALL MOUNTED ......................... 4 2.1.2 Corner Mounted (Optional) ......................5 2.1.3 Pole Mounted (Optional) ...................... -
Page 4: Product Introduction
Transcendent Series IP PTZ Cameras 1 PRODUCT INTRODUCTION 1.1 PACKAGE CONTENTS IP IR Speed dome Wall mount bracket Power supply Screws kits User manual 1.2 FUNCTION DESCRIPTION 3D Allocation Allows the camera to move diagonally while using zoom function Pattern A series of pan, tilt, zoom and focus movements from a single programmable dome. -
Page 5: Installation
Transcendent Series IP PTZ Cameras Guard Tour Scan Dome patrol scans according to certain edited preset order. A-B Scan The dome scans back and forth between two preset points (A & B). Power Off Memory This feature allows the dome to resume its previous status after power is restored. Park Action The Park function applies to the predefined functions such as Preset, Tour, Pattern, or Scan function after the dome has been idle for a programmed time. -
Page 6: Corner Mounted (Optional)
Transcendent Series IP PTZ Cameras 2.1.2 Corner Mounted (Optional) Fig 4 Installation conditions: Corner mounted dome can be used in a hard wall structure with an angle of 90° whose thickness should be enough to install expansion bolts in indoor and outdoor environments. The wall must bear at least 4 times the weight of the dome. -
Page 7: Pole Mounted (Optional)
Transcendent Series IP PTZ Cameras c. As shown in Fig7, fix the wall hanging bracket with all cables power through it on the corner mounted attachment. Fig 7 2.1.3 Pole Mounted (Optional) Fig 8 Installation conditions: Pole mounted domes can be used on a hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps. -
Page 8: Ceiling Mounted (Optional)
Transcendent Series IP PTZ Cameras b. As shown in Fig 10, attach the wall hanging bracket with all cables through it on the pole mounted attachment. Fig 10 2.1.4 Ceiling Mounted (Optional) Fig11 Installation conditions: Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment. - Page 9 Transcendent Series IP PTZ Cameras b. As shown in Fig 13, at first unscrew the M4 screw at the side of the base of ceiling and split the base of ceiling and boom. Then make the three groups of cables of power, video/control and alarming into the side recessing seal groove of the ceiling connector bottom and through the core hole of the base of ceiling mounted.
-
Page 10: Ptz Connection
Transcendent Series IP PTZ Cameras 2.2.1 PTZ Connection Before connecting, please power off and read the instructions carefully of all connected devices. 2.2.2 Connecting the Device This device can be directly connected to a computer or network; 2.2.3 Setting IE Browser User can view video through IE, ActiveX is required to be installed. -
Page 11: Install Active X
Transcendent Series IP PTZ Cameras Fig 2.14 4. Change option “Download unsigned ActiveX controls” to “Enable” or “Prompt”. User can optionally change “Running ActiveX controls and plug-in” into “Start” to avoid the prompt of running. 2.2.4 Install Active X (1) Download controls Open IE and enter IP cameras IP address (default is 192.168.1.110). -
Page 12: Video Browse
Transcendent Series IP PTZ Cameras After login, you will enter the following interface: Fig 2.16 The IP Camera supports H.265/H.265 and MJPEG triple encoding format. 2.3.1 Video Browse Video Browse: For camera display setting, you can set the video type, video size, play mode, image color. -
Page 13: Ptz Control
Transcendent Series IP PTZ Cameras 2.3.2 PTZ Control PTZ control: Adjust the rotation in all directions, set pan speed, tilt speed. 2.3.3 PTZ Function PTZ functions: preset, auto pan, pattern, tour. Fig 2.30... -
Page 14: Common Shortcuts
Transcendent Series IP PTZ Cameras 2.3.4 Common Shortcuts Common shortcuts: Digital Zoom, Snapshot, record, audio input (not used), audio output (not used), English- Chinese Fig 2.21 Frequently set common functions of the IP camera. The storage path of snapshot and recording complies with the one from settings . -
Page 15: System
Transcendent Series IP PTZ Cameras 2.4.1 System System: upgrade the system info, time and maintenance. System info: The initial interface of system setting is the display interface of system info. Basic Info: The IPC’s version number, time zone, product series, serial number. Network Settings: MAC address, IP address, default gateway, subnet mask. - Page 16 Transcendent Series IP PTZ Cameras Fig 2.25 Firmware upgrade: To upgrade the firmware of the camera click on Browse to locate the upgrade file, after locating the file click on “Submit” and camera will start upgrading Please restart the device after upgrading. Restore factory setting: Click “Reset to reset camera to factory default.
-
Page 17: Network
Transcendent Series IP PTZ Cameras 2.4.2 Network Network: The device’s relevant network parameter setting, including Network 、 FTP 、 SMTP 、 QoS 、 IGMP 、 PORT, DDNS, Cloudlens Network: setting of the device’s network parameter. Fig 2.27 DHCP: Dynamic Host Configuration Protocol, allocating dynamic IP address for network clients. - Page 18 Transcendent Series IP PTZ Cameras SMTP: Simple Mail Transfer Protocol is a TCP/IP protocol used in sending and receiving e-mails Fig 2.29 • Server IP: set up mail server IP. • Port: set SMTP port • SSL: on or off •...
- Page 19 Transcendent Series IP PTZ Cameras IGMP: The Internet Group Management Protocol (IGMP) is a communications protocol used by hosts and adjacent routers on IPv4 networks to establish multicast group memberships. IGMP is an integral part of IP multicast. Fig 2.33 PORT: an interface, passing data between the computer and other devices (e.g.
-
Page 20: Camera
Transcendent Series IP PTZ Cameras 2.4.4 Camera Basic settings, Exposure settings, Effect settings, White Balance and Reset. Basic Settings: On and off setting of camera system, noise, mirror, BLC and other function. Fig 2.38 Power Frequency: 60Hz = NTSC 50Hz = PAL Vertical Mirror: image vertical mirror display. - Page 21 Transcendent Series IP PTZ Cameras Exposure Settings: Fig 2.39 Exposure Mode: select which mode is best suited for applications Scene Select: Indoor, optimized for indoor applications, Outdoor, optimized for outdoor applications Slow Shutter: in low light applications shutter will slow to selected settings for best image AGC: Automatic Gain Control, adjusts the Gain up to the level selected to optimize the image Shutter Speed: when Exposure Mode is in Shutter or Manual you can adjust the Shutter speed Manual AGC: when Exposure Mode is in Manual you can adjust both the Shutter speed and the...
- Page 22 Transcendent Series IP PTZ Cameras Effect Settings: General/Mode: select General for basic adjustments and Mode for custom adjustments Fig 2.40 White Balance: Auto, Manual, Sunlight, Cloudy, Incandescent, Cool White/Fluorescent, Sodium. Fig 2.41...
-
Page 23: Video & Audio
Transcendent Series IP PTZ Cameras Reset: Click “Reset” to return to factory default. 2.4.5 Video & Audio Video: Fig 2.43 Stream Type: Main Stream, Sub Stream, MJPEG. Resolution Main: 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720. Resolution Sub Stream: 640 x 480, 480 x 360, 352 x 288, 320 x 240, 176 x 144, closed Resolution MJPEG: 2592 x 1944, 2592 x 1520, 2048 x 1536, 1920 x 1080, 1280 x 720, closed... - Page 24 Transcendent Series IP PTZ Cameras Enc Type: Encoding H.264/ H.265 Resolution: select resolution per stream Frame Rate: select frame rate per stream I/P: I/P frames interval Bit Rate Type: select between CBR (constant bit rate) or VBR (variable bit rate) Image Quality: when in VBR Bit Rate type choose between Lowest, low, Average, High, Highest Bit Rate: when in CBR (constant bit rate) set bit rate to use...
- Page 25 Transcendent Series IP PTZ Cameras Character Display: Text, time, date can be displayed on the screen. X/Y (0-99) dimension stands for position. Fig 2.44 OSD setting includes: Text OSD, Zoom OSD and Date and Time OSD. Text 1~5 OSD: Set the subject and position. Choose On or Off to display the text or not. Input the content up to 36 characters can be displayed.
- Page 26 Transcendent Series IP PTZ Cameras Motion Detection: Fig 2.45 Drag Scope: Click on Drag Scope then click and drag on image where motion grid is to be located. Clear All: will remove motion grid Sensitivity: adjust the sensitivity. Enable Motion Detect: Turns on and off the motion detection...
- Page 27 Transcendent Series IP PTZ Cameras Privacy Zone: setting the privacy zone of the camera. This zone can not move . It is available if PTZ is in a fixed place. 【Zone】: You can set 4 privacy zones. Each of them can be drawn and set with a mouse. Select save and the zone is covered.
-
Page 28: Ptz Function
Transcendent Series IP PTZ Cameras The default is C drive control folder. Click browse to re-select the storage path. For the type of the file, photos is jpg/bmp and video is avi/ifv. Audio: Future use 2.4.6 PTZ Function PTZ function: preset, Auto tour, PTZ protocol. Preset: Set where you want the camera to point at when you call up preset. -
Page 29: Alarm
Transcendent Series IP PTZ Cameras 2.4.7 Alarm Not available, for future use Record: Not available, for future use 2.4.8 User User: Administrator’s authority to operate the camera. Fig 2.54 Add user: click the image “ ”, you will get the following dialog box Fig 2.55 Input user name and password. -
Page 30: Log
Transcendent Series IP PTZ Cameras 2.4.9 log Log: recording of each operation Fig 2.57 3. FUNCTION INSTRUCTION 3.1 SPECIAL FUNCTION The follow presets are predefined as special function PREST FUNCTION PRESET FUNCTION Reset Turn on far light Run Wiper Turn on near light Stop Wiper 91(31) Call A-B scan... -
Page 31: Osd Menu
Transcendent Series IP PTZ Cameras 4 OSD MENU Select Preset 95 to enter OSD menu of PTZ. 4.1 MENU INDEX... -
Page 32: System Information
Transcendent Series IP PTZ Cameras 4.2 SYSTEM INFORMATION <SYSTEM> <MAIN MENU> <SYSTEM> PELCO D-P PROTOCOL <DOME> DOME ID <CAMERA> COMM 41.8 ℃ <DISPLAY> TEMPERATURE <LANGUAGE> VERSION V863R15122109 <TIMING TASK> EXIT <ALARM> <RESET> EXIT When enter the OSD, it display Enter to the SYSTEM, you will see: MFG: Max 15 characters displayed on the screen. -
Page 33: Communication
Transcendent Series IP PTZ Cameras 4.3.1 Communication <COMM RESET> <COMM> DEVICE ID 125295 RESET TO DIAL THE CODE CHECK ID 125288 TARGET ID SOFT PROTOCOL AUTO BAUD RATE 2400 <COMM RESET> SAVE EXIT Fig4.3.1.1 Fig.4.3.1.2 DEVICE ID: It is only and used to distinct from the ID of other domes. CHECK ID: Distinguish several domes with same ID. -
Page 34: Guard Tours
Transcendent Series IP PTZ Cameras more than the ambient light, the picture will change to black , the IR illumination will turn on automatically. AMBIENT LIGHT: Ambient light is a system data. User can not change it manually. It changes according to the environment all the time. The data will refresh every time when user enter the OSD. -
Page 35: Pan Scan
Transcendent Series IP PTZ Cameras PRESET A: On A-B scan, A point can be preset from 0 to 64 PRESET B: On A-B scan, B point can be preset from 0 to 64. SCAN SPEED: A-B scan speed is 1 to 64 grade selectable. DWELL TIME: Dwell time between A to B is 2s to 60s selectable. -
Page 36: Privacy Zone( Optional)
Transcendent Series IP PTZ Cameras PARK MODE: Park mode includes OFF, Park action, A-B scan, Pan scan, guard tour 01, guard tour 02, guard tour 03 and Preserve action. When park mode is OFF status, the dome doesn’t run park mode. When park mode is PRESERVE ACTION status, it records previous action order(A-B scan, Pan scan, Guard tour 01, Guard tour 02, Guard tour 03). -
Page 37: Advanced
Transcendent Series IP PTZ Cameras 4.3.9 Advanced <ADVANCED> ACTI ON PWR ON ACT RATIO SPEED AUTO FLIP <OTHERS> EXIT PWR ON ACT: Power on action can be set as Memory, A-B scan, Pan scan, Park action, Guard tour 01, Guard tour 02, Guard tour 03 and No action. RATIO SPEED: Ratio speed can be set as ON or OFF status. -
Page 38: Display
Transcendent Series IP PTZ Cameras 4.5 DISPLAY <DISPLAY> SYSTEM P AND T ZOOM ACTION DOME ID COMM TIME SYSTEM: Video system includes NTSC and PAL. N means NTSC and P means PAL. P AND T: On screen, it displays the pan and tilt degree, user can enable or disable it. -
Page 39: Alarm (Optional)
Transcendent Series IP PTZ Cameras <TIMING TASK> <TIMING SETTING> START FUNCTION TIME-YEAR 2016 -00 00 - 00 00 TIME-MONTH 00 00- 00 00 TIME-DATE 00 00- 00 00 TIME-HOUR 00 00- 00 00 TIME-MIN 00 00- 00 00 TIME-SEC 00 00- 00 00 SAVE EXIT EXIT... - Page 40 Transcendent Series IP PTZ Cameras...
- Page 41 -40ºF ~ 140ºF (-40ºC ~ 60ºC) with included outdoor housing 12VDC Input Voltage Power Consumption 20 Watts Lightning Protection Transient voltage 6000V Dimensions (WxHxD) 5.5” x 9.5” x 9.5” 5.5” x 5.5” x 14.5” 7.5” x 7.5” x 9” (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
- Page 42 {VT} {TPTZ} {18} {HR} {5N} VT-TPTZ18HRL-5N 5 MegaPixel H.265 30fps Indoor/Outdoor Network PTZ Camera with Alarm Inputs & Included Wall Mount. VITEK Transcendent High 5 MegaPixel Zoom Definition Network Camera (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355...
- Page 43 Transcendent Series IP PTZ Cameras CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TNR Series Transcendent Series 4, 8, 32, and 64 Channel 5 MegaPixel H.265 Real Time Network Video Recorders with 4K HDMI Output FEATURES • 4, 8, 32, and 64 Channel Stand-alone Real-time IP Network Video Recorders •...
- Page 44 VITEK warrants to the purchaser that products manufac- tured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
