QUICK START GUIDE
FEATURES
• 1/2.8" 2MP Sony STARVIS® CMOS Progressive Scan Sensor
• Superior Image Quality via High MTF 20x Zoom Lens and STARVIS® to Capture Vivid
Color Images in Low Light Conditions
• Max 30fps @ 2MP
• True WDR (Wide Dynamic Range)
• H.265 / H.264 / MJPEG
• High Efficiency Video Coding (H.265, ITU-T VCEG)
• Smart IR (2.0) with up to 500 foot IR Range
• Smart IR Lighting Sub-System, Improves Uniformity of Illumination
• 5.5-110mm Focal Length, 20x Optical Zoom Lens
• Zoom Speed Approximately 3.5s (Optical Lens, Wide-TELE)
• Aperture Range: F1.6 (Wide) to F3.5 (TELE)
• Day / Night w/ IR Cut Filter
• Smart Thermal Management (1.0), with a Built-In Temperature Sensor, Highly Efficient
Turbo Fan, and High Power Heater
• Built-in Micro SD Card Slot, Supporting up to 128GB
• 360° Endless Pan Range, and Pan Speed from 0.1°/s to 80°/s
• ONVIF Compliant with Zero Configuration
• 12VDC @ 3amps / PoE+ (20 watts)
• 12VDC Power Supply Included
• Optional Mounts: VT-TPT20HR-WM (Wall), VT-TPT20HR-PM (Pendant), VT-TPT20HR-FM
(Semi-Flush) Available
• IP 66 Ingress Protection
• 3-Year Warranty
*Sony STARVIS® is a registered trademark of Sony
VT-TPTZ20HR-2PNS
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads

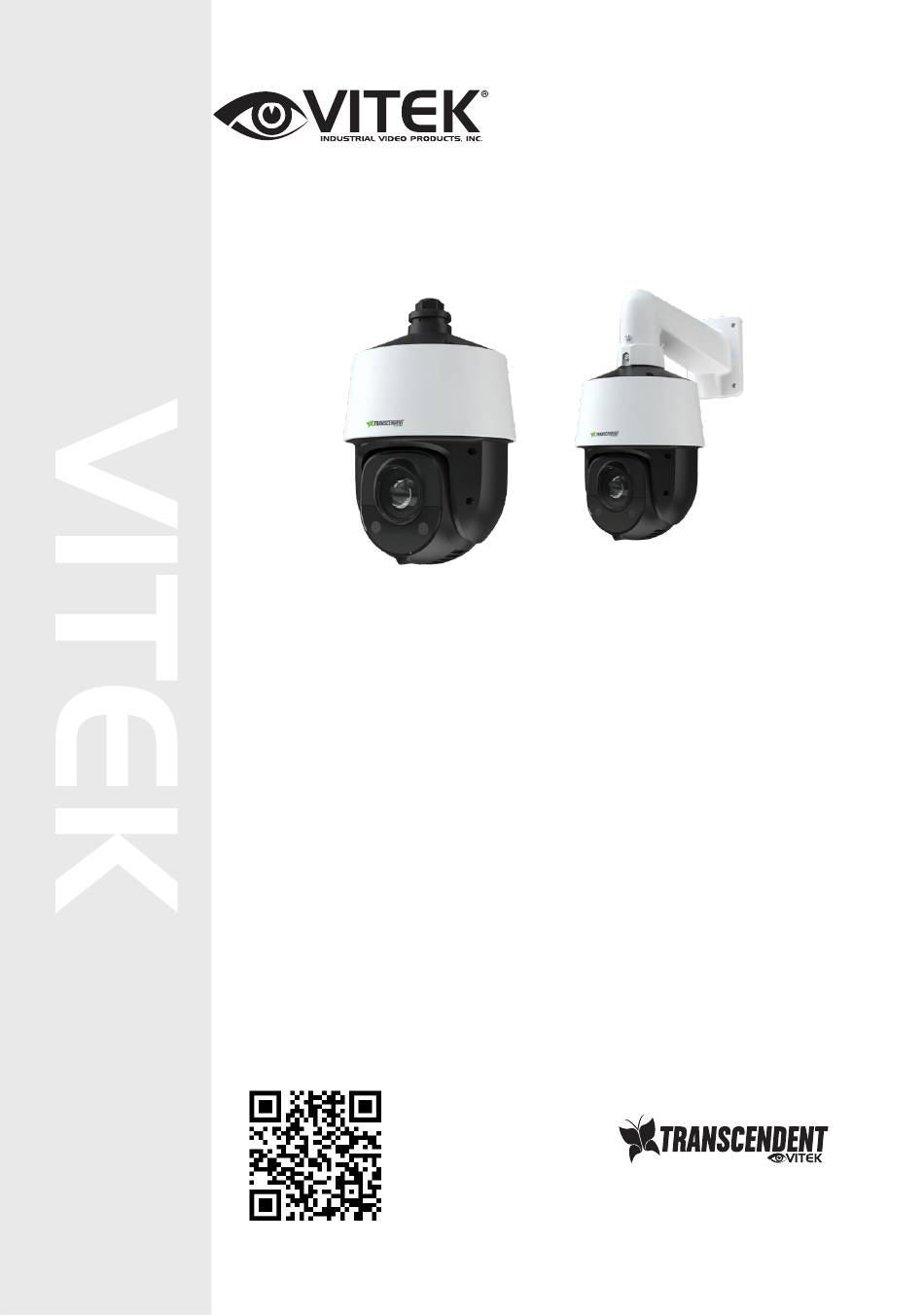

Transcendent Series
2 MegaPixel
1/2.8" 20x PoE+

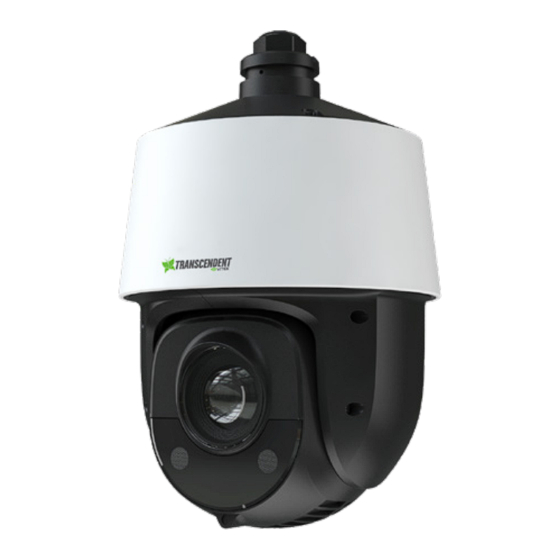

IP Speed Dome Camera
*Shown with
optional wall mount
VT-TPT23HR-WM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-TPT23HR-WM
Summary of Contents for Vitek VT-TPT23HR-WM
- Page 1 IP Speed Dome Camera QUICK START GUIDE *Shown with optional wall mount VT-TPT23HR-WM FEATURES • 1/2.8” 2MP Sony STARVIS® CMOS Progressive Scan Sensor • Superior Image Quality via High MTF 20x Zoom Lens and STARVIS® to Capture Vivid Color Images in Low Light Conditions •...
-
Page 2: Cable Connections
Overview 1 Ethernet connector Power connector 3 Safety wire Cable Connections First connect the Waterproof Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE+, also connect the power Cable to an approved 12VDC Power Supply. Weather Resistant Network Coupler 1. -
Page 3: Installation
SD card 1. Loosen the cover’s 4 screws and remove it. 2. Insert a microSD card as indicated (right) and re-install the cover. Installation Using Wall Mount VT-TPT23HR-WM (mount sold separately) *see page 10 for mount dimensions 3.10” .32” 3.94”... - Page 4 4.Hook the safety wire to the bracket. 3. Attach the bracket Then connect the cables. After that, to the wall with four attach the speed dome to the bracket screws. with the screws. Installation Using Ceiling / Pendant Mount - VT-TPT20HR-PM (mount sold separately) *see page 10 for mount dimensions 1.
- Page 5 4. Connect cables, then hook the 5. Securely attach the camera safety wire to the adapter stem. to the adapter stem with screws. Installation Using Semi-Flush Ceiling Mount VT-TPT20HR-FM (mount sold separately) *see page 10 for mount dimensions *The following illustrations are for demonstration purposes only, and depictions of the PTZ camera used as an example will differ from the actual camera.
- Page 6 8.35” 8.35 Attach s Thr...
-
Page 7: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU P T Z C amer a Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 8 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 9: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 10 Installation Mount Dimensions VT-TPT23HR-WM 3.94” 10.07” VT-TPT20HR-PM 2.48” 7.22” 3.51” VT-TPT20HR-FM 9.17”...
- Page 11 Detailed Specifications VT-TPTZ20HR-2PNS Image Sensor 1/2.8” 2 MegaPixel Sony STARVIS® CMOS Sensor Min. Illumination Color: .006 lux@F1.6, AGC B/W: .003lux@F1.6, AGC 0 lux with IR White Balance Auto/Manual/ATW (Auto-tracking WB)/Indoor/Outdoor S/N ratio >50dB Gain Auto/Manual Shutter Time 50Hz: 1 / 1s ~ 1 / 25,000s; 60Hz: 1 / 1s ~ 1 / 30,000s Day&Night IR Cut Filter Privacy Mask...
- Page 12 Detailed Specifications - CONTINUED VT-TPTZ20HR-2PNS ONVIF, Third-Party Management Platform Up to 6 Users Simult. Live View Up to 16 users, 3 levels: Administrator, Advanced and Normal Users User/Host User Authentication (ID and PW), Host authentication (MAC address); HTTPS encryp., IEEE802.1x port-based net acc. cntrl; IP add. filtering Security Measures IE8-11, Chrome 31.0 to 44, Firefox 30.0 to 51 Web Browser...
- Page 13 OPTIONAL ACCESSORIES FOR VT-TPTZ20HR-2PNS VT-TPT20HR-FM VT-TPT23HR-WM Universal Wall Mount for Transcendent IP PTZs including Semi-Flush Ceiling Mount VT-TPTZ20HR-2PNS for VT-TPTZ20HR-2PNS VT-TPT20HR-PM VT-TCNMT-WM* VT-TPLMT-WM* *Both shown with VT-TPT23HR-WM Transcendent Pole Pendent/Ceiling Mount Transcendent Corner Mount Adapter - White Mount Adapter - White...
- Page 14 ALSO CONSIDER THESE OTHER GREAT TRANSCENDENT IP PRODUCTS! VITEK Network Video Recorders Supporting up to 4K Resolution & Real Time Video! Pair with VITEK Transcendent Series Network Recorders: VT-TNR818PF, VT-TNR1646PF, and VT-TNR3216PF with Built-in PoE and Gen III. Advanced A.I. including Face Detection, Target...
- Page 15 Also Consider Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 16: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
