QUICK START GUIDE
VT-TPTZ10HR-5N
FEATURES
• 1/3" 5.0 MegaPixel CMOS Sensor
• 2592x1944 @ 15fps / 2592x1520 @ 22fps
• H.265/H.264/MJPEG Triple Streaming
• True Day/Night by IR Cut Filter
• Built-in 5mm to 50mm Lens offering 10x Optical Zoom
(VT-TPTZ10HR Models) / Built-in 4.8mm to 84mm Lens offering
18x Optical Zoom (VT-TPTZ18HR-5N)
• 6 Integrated IR LEDs with up to 165' IR Range (VT-TPTZ10HR
Models) / 10 Integrated IR LEDs with up to 500' IR Range
(VT-TPTZ18HR-5N)
• DigitalNoise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• Max manual speed 480°/sec
• 360°continuous rotation
• 16:9 Video format
• Double layer metal body construction with IP66 Weather Resistance
• Includes Wall Mount Bracket & Power Supply
• ONVIF Compliant
• 12VDC Operation
• 3 Year Warranty
VT-TPTZ10HR-5N
VT-TPTZ18HR-5N

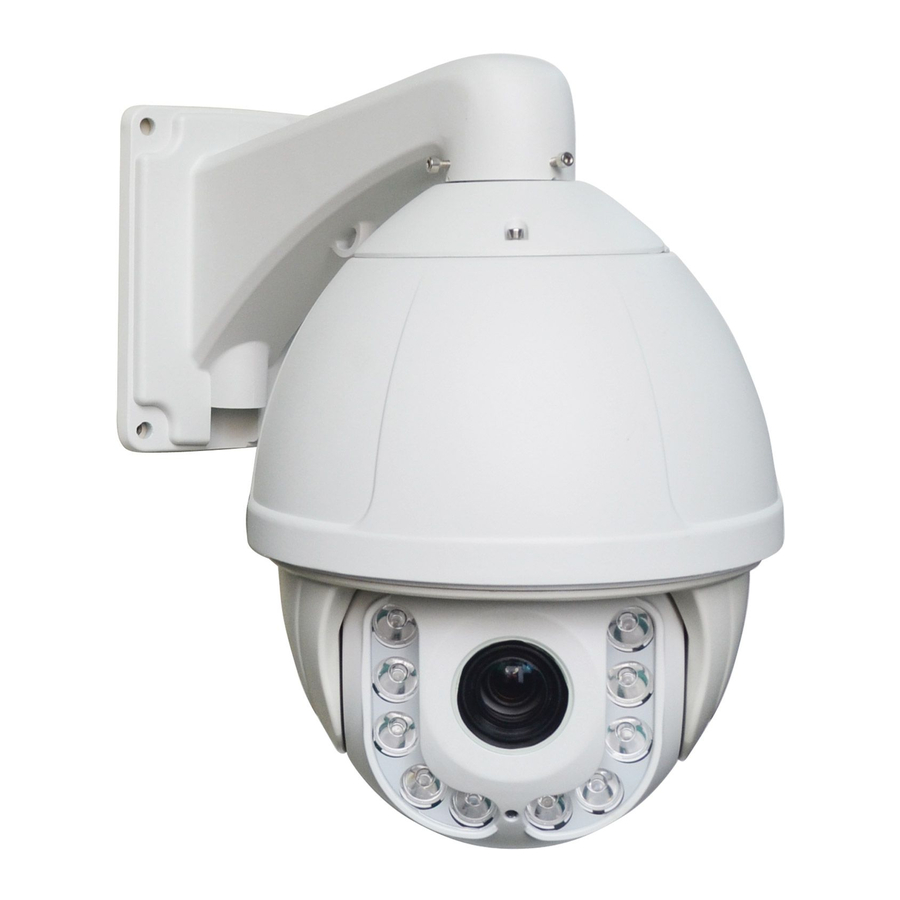

5.0 MegaPixel H.265 IP PTZ
Cameras w/IR LED Illumination
VT-TPTZ10HRF-5N
VT-TPTZ10HRC-5N
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
VT-TPTZ18HR-5N
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-TPTZ10HRC-5N
Summary of Contents for Vitek VT-TPTZ10HRC-5N
-
Page 1: Quick Start Guide
5.0 MegaPixel H.265 IP PTZ Cameras w/IR LED Illumination QUICK START GUIDE VT-TPTZ10HR-5N VT-TPTZ10HRF-5N VT-TPTZ18HR-5N VT-TPTZ10HRC-5N FEATURES • 1/3” 5.0 MegaPixel CMOS Sensor • 2592x1944 @ 15fps / 2592x1520 @ 22fps • H.265/H.264/MJPEG Triple Streaming • True Day/Night by IR Cut Filter •... -
Page 2: Package Contents
Package Contents 1. IP IR Speed dome 2. Wall mount bracket 3. Power supply 4. Screws kits 5. User manual Dimensions VT-TPTZ10HR-5N Dimensions: VT-TPTZ18HR-5N Dimensions:... -
Page 3: Installation
Installation * The installation point must be able to support at least 4 times the weight of the fully assembled dome camera. Wall Mount Installation Attach the wall bracket to the wall using the included M8 Screws, then feed the cables through it. Ceiling Mount Installation Use the installation holes in the base of the ceiling mount as a pattern, then install using the M6 bolts. -
Page 4: Setup And Configuration
Setup & Configuration 1. With a computer running Windows 7 or above install IP Wizard 2. With computer connected to the same network that the IP PTZ is connected too, run IP wizard. 3. After IP Wizard is opened click on Search 4. - Page 5 Setup & Configuration 6. Once camera is highlighted you can change the IP address or ports by making changes and then clicking on “Modify” 7. Once changes are completed double click on the IP camera you want to connect too. IE will open and direct you to the login screen of the camera.
- Page 6 Setup & Configuration 9. After logging into camera click on “Browse” for live view or “Settings” for detailed programming...
- Page 7 Setup & Configuration 5. Once camera(‘s) are found highlight the camera that needs to be changed...
- Page 8 Setup & Configuration...
