QUICK START GUIDE
KEY FEATURES
• 1/2.5" 4 MegaPixel CMOS Progressive Scan Sensor
• Superior Image Quality via High MTF 30x Zoom Lens and STARVIS® to Capture
Vivid Color Images in Low Light Conditions, Avoiding Bright Object Smear from
Light Sources
• Max 30fps @ 4MP (2560 x 1440)
• True WDR: Using 2-Frames-in-1 (Combines Long + Short Exposures)
• Smart H.265 / H.265 / H.264 / MJPEG
• Auto-Tracking for Humans / Motor Vehicle / Motorcycle, or Any Combination
• Smart IR (2.0) with up to 330' foot IR Range
• Smart IR Lighting Sub-System (2.0), Improves Uniformity of Illumination Above
0.5 lux and Reduces Over-Exposure in Most Conditions with Self Adaptive IR
Brightness Control
• 4.7-141mm Focal Length, 30x Optical Zoom Lens
• Zoom Speed Approximately 4 seconds (Optical Lens, Wide-TELE)
• Working Distance - Wide:1.0m~INF, Tele: 1.5m~INF
• Intelligent Analytics: Face Recognition (30 faces / sec.), Intrusion, Line Crossing,
Region Entrance Exit, Unattended Baggage, Object Removal, Scene Change,
Alarm Triggering by Human / Vehicle
• Day / Night w/ IR Cut Filter
• 1 Ch. Audio In + 1 Ch. Audio Out*, 1 Ch. Alarm In + 1Ch. Alarm Out
• Alarm Actions: Preset, Cruise, Track, SD Record, Trigger Recording, Notify
Surveillance Center, Upload to FTP/SD/NAS, send Email
• Smart Record: ANR (Automatic Network Replenishment)
• Built-in Micro SD Card Slot, Supporting Local Recording up to 256GB
• 360° Endless Pan Range, and Pan Speed from 0.5°/s to 80°/s
• ONVIF Compliant with Zero Configuration
• 24VAC/DC, PoE+(802.3at, Class 4), Max. 30W (IR On)
[VT-POE60 60W PoE Injector Power Supply Sold Separately]
• IP66 Ingress Protection
• Wall, Pendant, Corner and Pole Mount Compatibility - see rear pages
• 3-Year Warranty
*Please research local, state, and federal law regarding the implementation and use of audio surveillance.
**STARVIS is a registered trademark of the SONY coroporation
VT-TPTZ30HRA-4PNS
Transcendent Series 4 MegaPixel
H.265 30× Indoor/Outdoor,
Autotracking PoE+ IP PTZ
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads

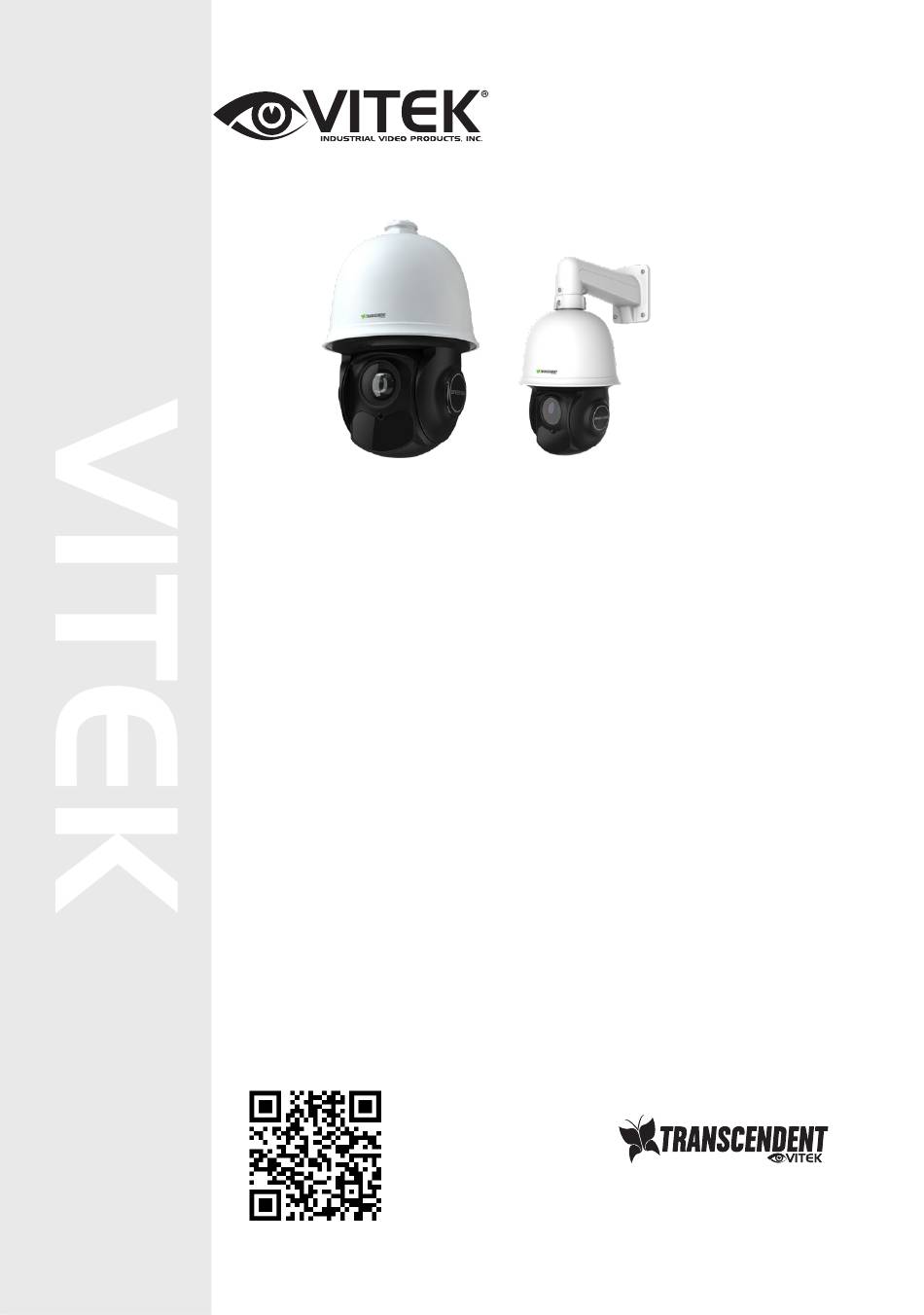

*Shown with
optional wall mount
VT-TPT23HR-WM
