QUICK START GUIDE
FEATURES
• 1/3" 4.0 MegaPixel CMOS Sensor
• Up to 2592x1520 @ 30fps
• H.265/H.264/MJPEG Triple Streaming
• True Day/Night by IR Cut Filter
• Built-in 5mm to 50mm Lens offering 10x Optical Zoom
(VT-TPTZ10HR-4N) / Built-in 4.8mm to 84mm Lens offering 18x
Optical Zoom (VT-TPTZ18HR-4N)
• 6 Integrated IR LEDs with up to 165' IR Range (VT-TPTZ10HR-
4N) / 10 Integrated IR LEDs with up to 500' IR Range
(VT-TPTZ18HR-4N)
• DigitalNoise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• Max manual speed 480°/sec
• 360°continuous rotation
• 16:9 Video format
• Double layer metal body construction with IP66 Weather Resistance
• Includes Wall Mount Bracket & Power Supply
• ONVIF Compliant
• 12VDC Operation
• 3 Year Warranty
VT-TPTZ10HR-4N
VT-TPTZ18HR-4N
4.0 MegaPixel H.265 IP PTZ
Cameras w/IR LED Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advertisement
Related Manuals for Vitek VT-TPTZ10HR-4N
Summary of Contents for Vitek VT-TPTZ10HR-4N
-

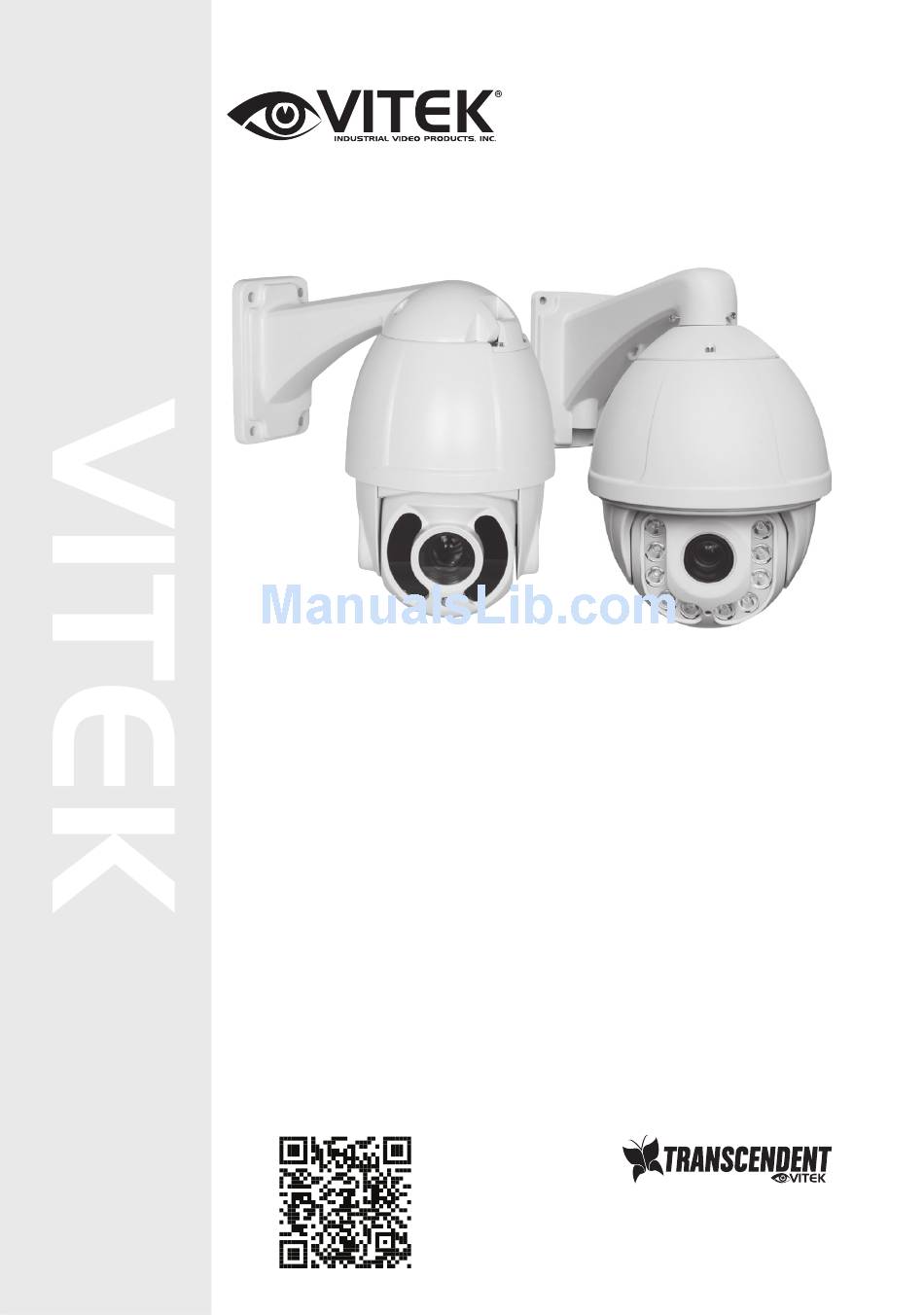

Page 1: Quick Start Guide
• True Day/Night by IR Cut Filter • Built-in 5mm to 50mm Lens offering 10x Optical Zoom (VT-TPTZ10HR-4N) / Built-in 4.8mm to 84mm Lens offering 18x Optical Zoom (VT-TPTZ18HR-4N) • 6 Integrated IR LEDs with up to 165’ IR Range (VT-TPTZ10HR- 4N) / 10 Integrated IR LEDs with up to 500’... -
Page 2: Package Contents
Package Contents 1. IP IR Speed dome 2. Wall mount bracket 3. Power supply 4. Screws kits 5. User manual Dimensions VT-TPTZ10HR-4N Dimensions: VT-TPTZ18HR-4N Dimensions:... -
Page 3: Wall Mount Installation
Wall Mount Installation Wall mounted domes can be used in a hard wall structure whose thickness should be enough to install expansion bolts in an indoor and outdoor environment. The wall must bear at least 4 times the weight of the dome. -
Page 4: Setup And Configuration
Setup & Configuration 1. With a computer running Windows 7 or above install IP Wizard 2. With computer connected to the same network that the IP PTZ is connected too, run IP wizard. 3. After IP Wizard is opened click on Search 4. - Page 5 Setup & Configuration 6. Once camera is highlighted you can change the IP address or ports by making changes and then clicking on “Modify” 7. Once changes are completed double click on the IP camera you want to connect too. IE will open and direct you to the login screen of the camera.
- Page 6 Setup & Configuration 9. After logging into camera click on “Browse” for live view or “Settings” for detailed programming...
- Page 7 Setup & Configuration 5. Once camera(‘s) are found highlight the camera that needs to be changed...
- Page 8 Setup & Configuration...
