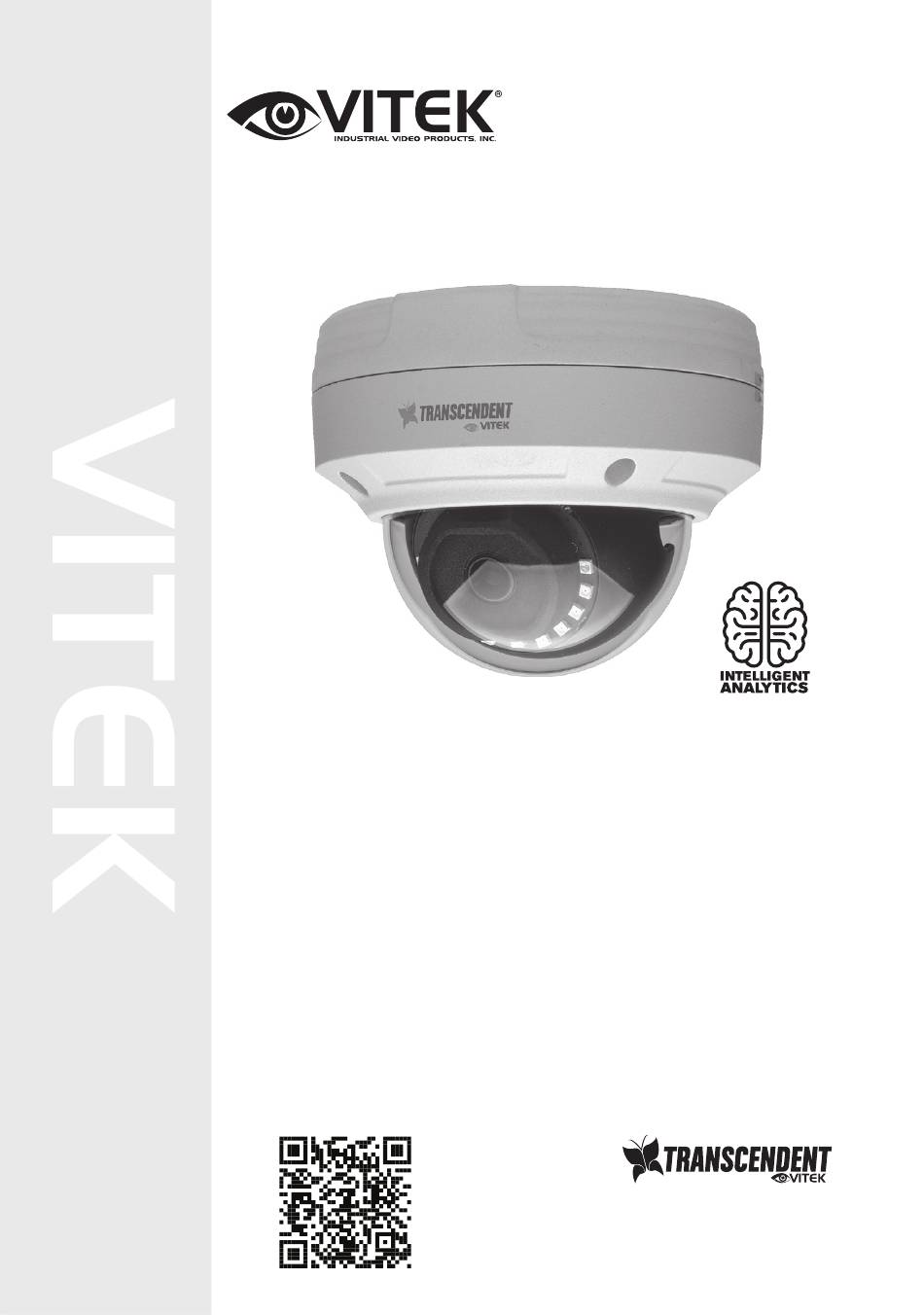

QUICK START GUIDE
FEATURES
• 1/3" 4.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8mm or 3.6mm Fixed Iris Lens Options
• 10 High Power Infrared LED's with 65' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Object Removal/
Museum Search, Line Crossing, and Area Intrusion Detection
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android
Apps
• ONVIF Compliant
• IP66 Weather Resistance & IK10 Impact Rating
• Optional Junction Box Mount Available (VT-TJB03)
• 12VDC & PoE (Power over Ethernet) Operation

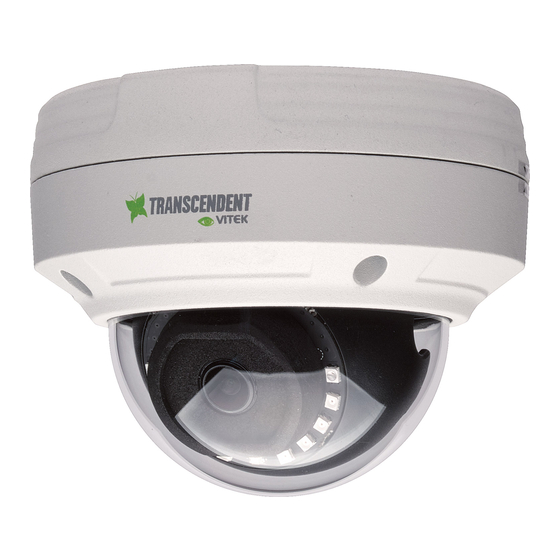

VTD-TND4RFS
Megapixel H.265 IP Dome
Camera with IR LED Illumination
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Transcendent Series 4
