QUICK START GUIDE
KEY FEATURES
• 1/1.8" 4 MegaPixel Progressive Scan Starlight CMOS Sensor
• Up to 4.0 MegaPixel (2560 x 1440) Resolution @ 30fps
• Ultra High-Speed Pan / Tilt / Zoom with 37x Optical Zoom Lens (5.6-208mm Focal Length)
• AI Powered VCSEL Laser IR Illuminator with up to 1640' IR Range, intelligently syncs with the
optical zoom lens, delivering unprecedented low light performance
• Real-Time Auto Zoom Tracking: Transcendent GEN III IP PTZ Cameras feature the most
advanced PTZ Auto-Tracking available, powered by AI!
• AI Facial Recognition: Transcendent GEN III Advanced Analytics deliver improved Facial
Detection, with up to 95% accuracy!
• Intelligent Car Counting & Tracking: Intelligent tracking is capable of counting people, cars,
and bicycles entering and exiting the camera's view
• Deep-Learning Engine supporting Face Recognition (FR), <30 human faces/sec (max)
• True 120dB WDR (Wide Dynamic Range)
• Smart H.265+ / H.265 / H.264 / MJPEG Compression
• True Day/Night with ICR Cut Filter with Auto/Manual Gain Control
• Built-in Micro SD Card Slot, Supporting Local Recording up to 256GB
• 7 Ch. Alarm Input, 2 Ch. Alarm Output
• 1 BNC Output (CVBS) and RS485 Interface Supporting Pelco D/P Protocols
• Built-In Rain / Ice / Dust Wiper
• Integrated Thermal Management System with 14W Heater & High Speed Cooling Fan
• 24VAC/DC / PoE++ Operation
• IP67 Ingress Protection + IK10 Impact Resistance
• Large Wall Bracket included. Optional Pendant, Corner, Pole, and Small Wall Mount also
Available
• 3-Year Warranty

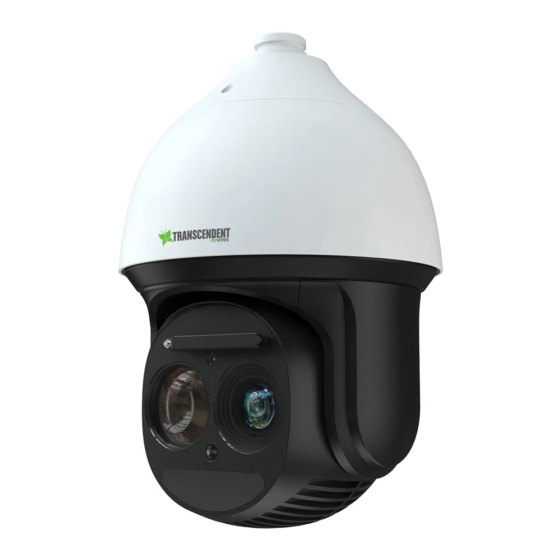

VT-TPTZ37HRA-4PNS
Transcendent Series 4 MegaPixel
H.265 37× Indoor/Outdoor,
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advanced AI, Autotracking
PoE++ IP PTZ
*Shown with
optional wall mount
VT-TPT23HR-WM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VT-TPTZ37HRA-4PNS
Summary of Contents for Vitek Transcendent VT-TPTZ37HRA-4PNS

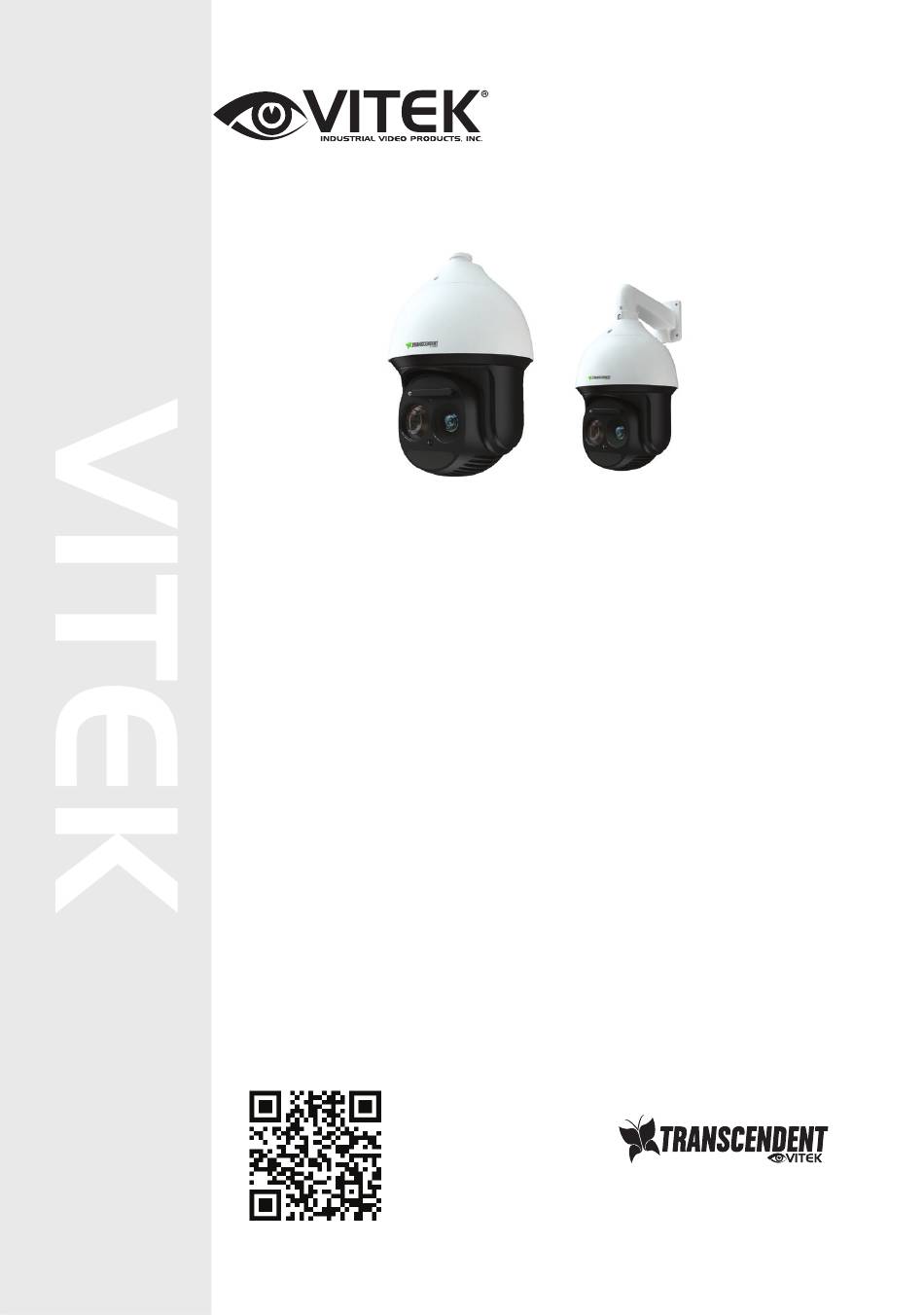

- Page 1 VT-TPTZ37HRA-4PNS Transcendent Series 4 MegaPixel H.265 37× Indoor/Outdoor, Advanced AI, Autotracking PoE++ IP PTZ QUICK START GUIDE *Shown with optional wall mount VT-TPT23HR-WM KEY FEATURES • 1/1.8” 4 MegaPixel Progressive Scan Starlight CMOS Sensor • Up to 4.0 MegaPixel (2560 x 1440) Resolution @ 30fps •...
- Page 2 Overview Cable Connections...
- Page 3 Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler. 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal.
-
Page 4: Installation
Installation Installation Using Wall Mounts VT-TPT37HR-WM (included in box) 1/2”. 1/2”... - Page 5 2. Drill the screw holes in the VT-TPT23HR-WM (sold separately) wall according to the template. Then insert the plastic plugs 1. Fasten the adapter to into the holes. the bracket. 3.10” .32” 3.94” 3. Attach the bracket 4. Hook the safety wire to the bracket. to the wall with four Then connect the cables.
-
Page 6: Lan Configuration
LAN Configuration The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. Locate the IP-Tool installer at www.vitekcctv.com/Downloads/Soft- ware/Transcendent-IPTool_v2.0.2.zip, then install on the PC. - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 8: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 9 Installation Mount Dimensions For Optional Mounts (sold separately) VT-TPT23HR-WM 3.94” 10.07” VT-TPT20HR-PM 2.48” 7.22” 3.51” Camera Dimensions...
-
Page 10: Detailed Specifications
DETAILED SPECIFICATIONS Image Sensor 1/1.8” 4 MegaPixel Progressive Scan Starlight CMOS Sensor Resolution 4.0 MegaPixel (2560 x 1440) Resolution @ 30fps Min. Illumination 0.005 Lux @ (F1.5 AGC On) B/W 0.001 Lux @ (F1.5 AGC On); 0 Lux w/IR White Balance Auto / Manual / Indoor / Outdoor Day / Night True Day/Night via ICR Cut Filter with Auto/Manual Gain Control... - Page 11 OPTIONAL ACCESSORIES FOR VT-TPTZ37HRA-4PNS VT-TPT37HR-WM VT-TPT23HR-WM [Included in VT-POE90 Package] MidSpan PoE Injector (sold separately) Optional [Universal] Optional [Universal] Large Wall Mount for Large Wall Mount for Wall Mount for VT-TPTZ37HRA-4PNS Transcendent IP PTZs VT-TPT20HR-PM VT-TCNMT VT-TPLMT Optional Pendent / Transcendent Pole Transcendent Corner Ceiling Mount...
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
