Vitek Transcendent VT-TPTZ-B10X5N Quick Start Manual

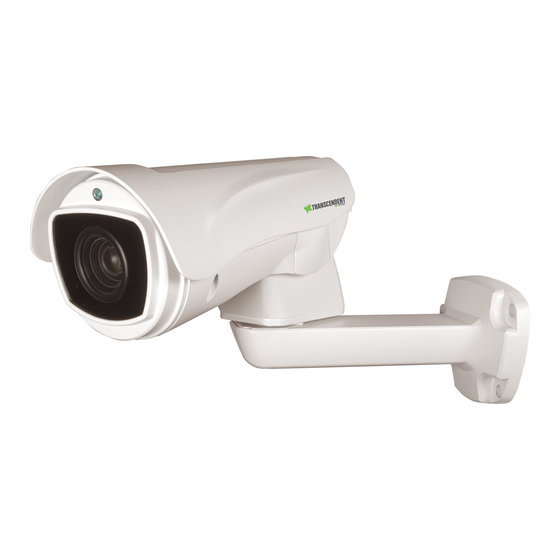

5.0 megapixel h.265 10x network ip ptz bullet camera with ir leds for up to 325' ir range
Hide thumbs Also See for Transcendent VT-TPTZ-B10X5N:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

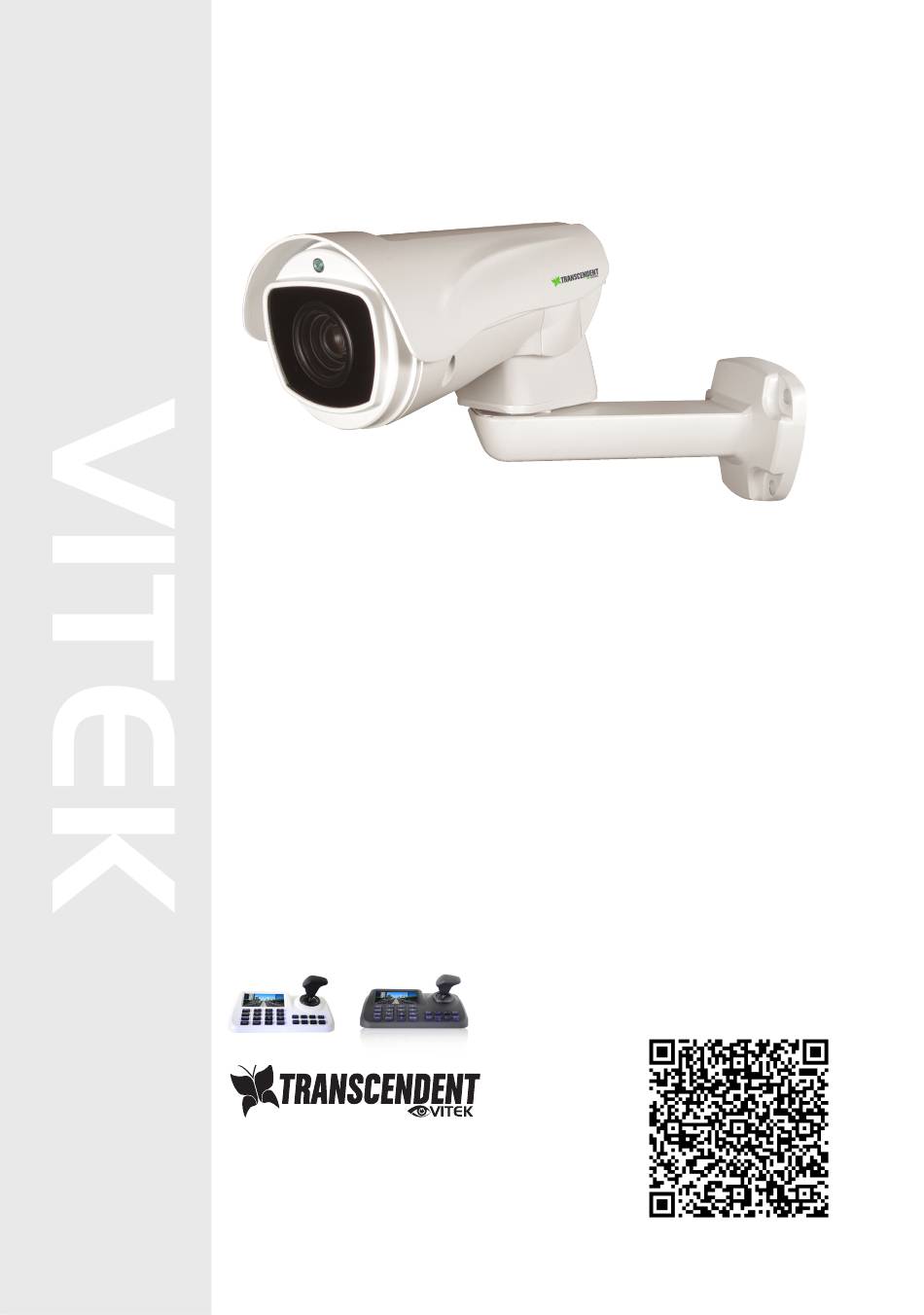

QUICK START GUIDE
FEATURES
• 1/3" 5.0 MegaPixel CMOS Sensor
• Up to 2592x1944 @ 15fps / 2592x1520 @ 22fps
• H.264 / H.265 / MJPEG Triple Streaming
• True Day/Night by IR Cut Filter
• 4 Integrated High Power + 2 Laser Covert IR
LEDs with up to 325' IR Range
• Rotation Range: Pan: 0~200° / Tilt: 45°/40° (Up/Down)
• Rotation Speed: Pan: 0~30°/second / Tilt: 0~25°/second
• 2D-DNR Noise Reduction
• 220 Presets programmed with view direction, zoom, BLC, etc
• 16:9 Video format
• Double layer metal body construction with IP66 Weather Resistance
• ONVIF Compliant
• 12VDC Operation
• 3 Year Warranty
OPTIONAL ACCESSORIES:
Complete User Guide, Software, Tools, and
Updates are available online. Scan the QR Code
or visit: http://www.vitekcctv.com/Downloads
VT-TPTZ-B10X5N
5.0 MegaPixel H.265 10x Network IP PTZ
Bullet Camera with IR LEDs for up to 325'
VT-TKBD1
Transcendent 3D Network IP Keyboard Controller
with Integrated 5" HD LED Real-Time Display
PLEASE NOTE:
IR Range

Advertisement

loading

Related Manuals for Vitek Transcendent VT-TPTZ-B10X5N

Summary of Contents for Vitek Transcendent VT-TPTZ-B10X5N

  • Page 1 VT-TPTZ-B10X5N 5.0 MegaPixel H.265 10x Network IP PTZ Bullet Camera with IR LEDs for up to 325’ IR Range QUICK START GUIDE FEATURES • 1/3” 5.0 MegaPixel CMOS Sensor • Up to 2592x1944 @ 15fps / 2592x1520 @ 22fps • H.264 / H.265 / MJPEG Triple Streaming •...

  • Page 2: Package Contents

    Package Contents 1. IP IR PTZ Bullet Camera 2. Wall mount bracket 3. Power supply 4. Screws kits 5. User manual Installation NOTE: The installation point must be able to support at least 4 times the weight of the fully assembled camera. As shown below, using a pencil, draw the position on the wall where the unit will be mounted according to the hole configuration on the mount.
  • Page 3 NOTE: If the camera is being used in outdoor / damp conditions, it is strongly recommended to seal the mount with silicone gel.

  • Page 4: Setup And Configuration

    Setup & Configuration 1. With a computer running Windows 7 or above install IP Wizard 2. With computer connected to the same network that the IP PTZ is connected too, run IP wizard. 3. After IP Wizard is opened click on Search 4.
  • Page 5 Setup & Configuration 5. Once camera(‘s) are found highlight the camera that needs to be changed...
  • Page 6 Setup & Configuration 6. Once camera is highlighted you can change the IP address or ports by making changes and then clicking on “Modify” 7. Once changes are completed double click on the IP camera you want to connect too. IE will open and direct you to the login screen of the camera.
  • Page 7 Setup & Configuration 9. After logging into camera click on “Browse” for live view or “Settings” for detailed programming...

  • Page 8: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
