QUICK START GUIDE
FEATURES
• 1/2.7" Progressive Scan CMOS STARLIGHT Sensor with BSI and NIR Technology
Backside Illumination (BSI) Technology improves performance in low light, and Near-Infrared (NIR)
Technolgy produces higher quality images and improved distant object capture in all light conditions
• Up to 4 MegaPixel (2560×1440) Max Resolution @ 30fps
• Hi-Speed Pan/Tilt/Zoom w/ 4×Optical Zoom Lens (2.8-12mm Focal Length)
• 1.6s Zoom Speed, F1.6~F2.7 Aperture Range
• Smart IR with up to 165' (50m) IR Range
• Smart H.265+/H.265/H.264+/H.264/MJPEG
• Real-Time Auto Zoom Tracking: Transcendent Gen. IV IP PTZ Cameras Feature the Most
Advanced PTZ Auto-Tracking Available, Powered by A.I.
• Gen. IV Advanced Analytics: Intrusion Detection, Line Crossing, Region Entrance / Exit,
Target Counting [All by Human / Vehicle Classification] Scene Change, Face Detection
• Active Deterrence: Flashes Ultra Bright White Light [100' Range] and Emits
Predefined / Custom Audio Warning
• True 120dB WDR (Wide Dynamic Range)
• 0~355° Pan Range, Speed: 0.1~80°/s, 80°/s Preset
• 1 Ch. Audio In+Out + Built-in Mic + Speaker*, Alarm In/Out
• True Day/Night w/ ICR Cut Filter (Auto/Manual Gain Control)
• Built-in MicroSD Card Slot, [up to 256GB]
• IP66 Ingress Protection + IK10 Impact Rating
• 12VDC Power or PoE+ (802.3.at, class 3),
• Built-in Temp Sensor [Triggers Auto Shut-Down], Heater
• Optional J-Box, Pendant, Wall Mounts and Other Accessories Available - See pg 12
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance
VT-TPTZ4AD-4M
Transcendent 4 Megapixel
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads

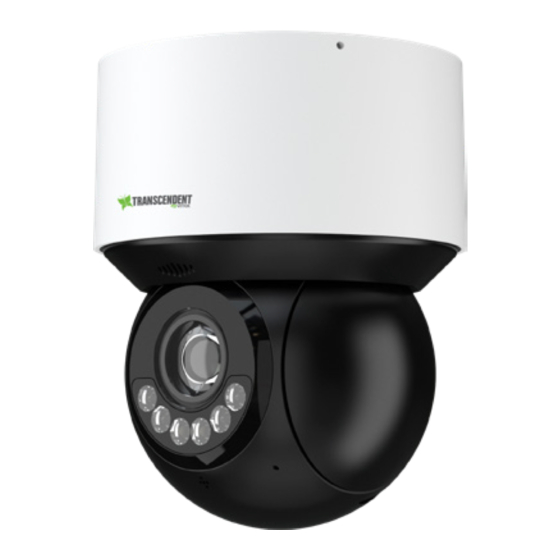

"Mini" IP PTZ Camera
Shown with Optional Wall
Mount VT-TWMT-4 [left] and
J-Box VT-TJB-F1 [right], Sold
Separately. See pg 12 for
more mounting options.
Advertisement
Table of Contents
Related Manuals for Vitek TRANSCENDENT VT-TPTZ4AD-4M
Summary of Contents for Vitek TRANSCENDENT VT-TPTZ4AD-4M
- Page 1 VT-TPTZ4AD-4M Transcendent 4 Megapixel “Mini” IP PTZ Camera QUICK START GUIDE Shown with Optional Wall Mount VT-TWMT-4 [left] and J-Box VT-TJB-F1 [right], Sold Separately. See pg 12 for more mounting options. FEATURES • 1/2.7” Progressive Scan CMOS STARLIGHT Sensor with BSI and NIR Technology Backside Illumination (BSI) Technology improves performance in low light, and Near-Infrared (NIR) Technolgy produces higher quality images and improved distant object capture in all light conditions •...
-
Page 2: Cable Connections
Overview Press and Hold for 5s to restore factory settings Cable Connections First connect the Weather Resistant Cap to an Ethernet patch cable, then connect cameras’ ethernet adaptor. If not powering the camera with PoE+, also connect the power cable to an approved 12VDC Power Supply. Weather Resistant Network Coupler 1. -
Page 3: Alarm Connections
Alarm Connections 1. Alarm Input a) There is one independent alarm input port (ALM-IN1), and one grounding port (ALM-GND). b) Alarm input (NO type): Connect DC5V~DC12V voltage between the alarm input port (ALM-IN1) and the grounding port (ALM-GND). c) Alarm input (NC type): DIsconnect the voltage between the alarm input port (ALM-IN1) and the grounding port (ALM-GND) 2. - Page 4 Mounting with Junction Box / Brackets Alarm Connections Mounting with a Wall Mounts / Junction Box / Pendant Mount (Following Page) Shown with Optional Wall Mount, VT-TWMT-4 Attach spacers to the back of hole B Shown with Optional Wall Mount, VT-TWM-F Attach spacers to the back of hole B...
-
Page 5: Preset Descriptions
Attach spacers to the back of hole B Shown with Optional Pedestal / Pendant Mount, VT-TPDM-F-W Preset Descriptions... -
Page 6: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU P T Z C amer a Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 7 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 8: Wan Configuration
2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login dialog box will appear. 4. -
Page 9: Detailed Specifications
DETAILED SPECIFICATIONS 1/2.7” Progressive Scan CMOS STARLIGHT Sensor with Backside Illuminated and Near Infrared Technology Image sensor Backside Illumination (BSI) Technology improves performance in low light conditions, and Near-Infrared (NIR) Technolgy produces higher quality images and improved distant object capture in all light conditions Min. - Page 10 DETAILED SPECIFICATIONS CONT’D PTZ Position Display Schedule Task Preset / Cruise / Trace / Random Scan / Boundary Scanning / Dome Reboot IR Distance Up to 165ft (50m) 4pcs of IR Array into 2 Groups, Auto Switch with Zoom Ratio Smart IR White Light 2pcs of White LED Array...
- Page 11 DETAILED SPECIFICATIONS CONT’D Built-in Speaker 4Ω, 2.5Watt. Rotation with Camera Lens Direction, Audible up to 95ft (30m) Distance Built-in Mic 1 CH, Rotation with Camera Lens Direction, up to 26ft (8m) Distance Voice Recordable Audio Device Switch Default Built-in Speaker and Mic, Manually Switch to External Alarm Interface 1CH Alarm Input (Dry contact), 1CH Alarm Output Alarm Actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording,...
- Page 12 95 Watt POE Mid-Span Injector, 4-Pair Compliant Pair With Transcendent IP NVRs, HDA DVRs, Bridge or Spire Series Recorders! Pair with one of several VITEK Transcendent Series Network or Digital Recorders offering a Myriad of Advanced Analytic Functions and Applications! See www.vitekcctv.com for...
- Page 13 Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 14: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
