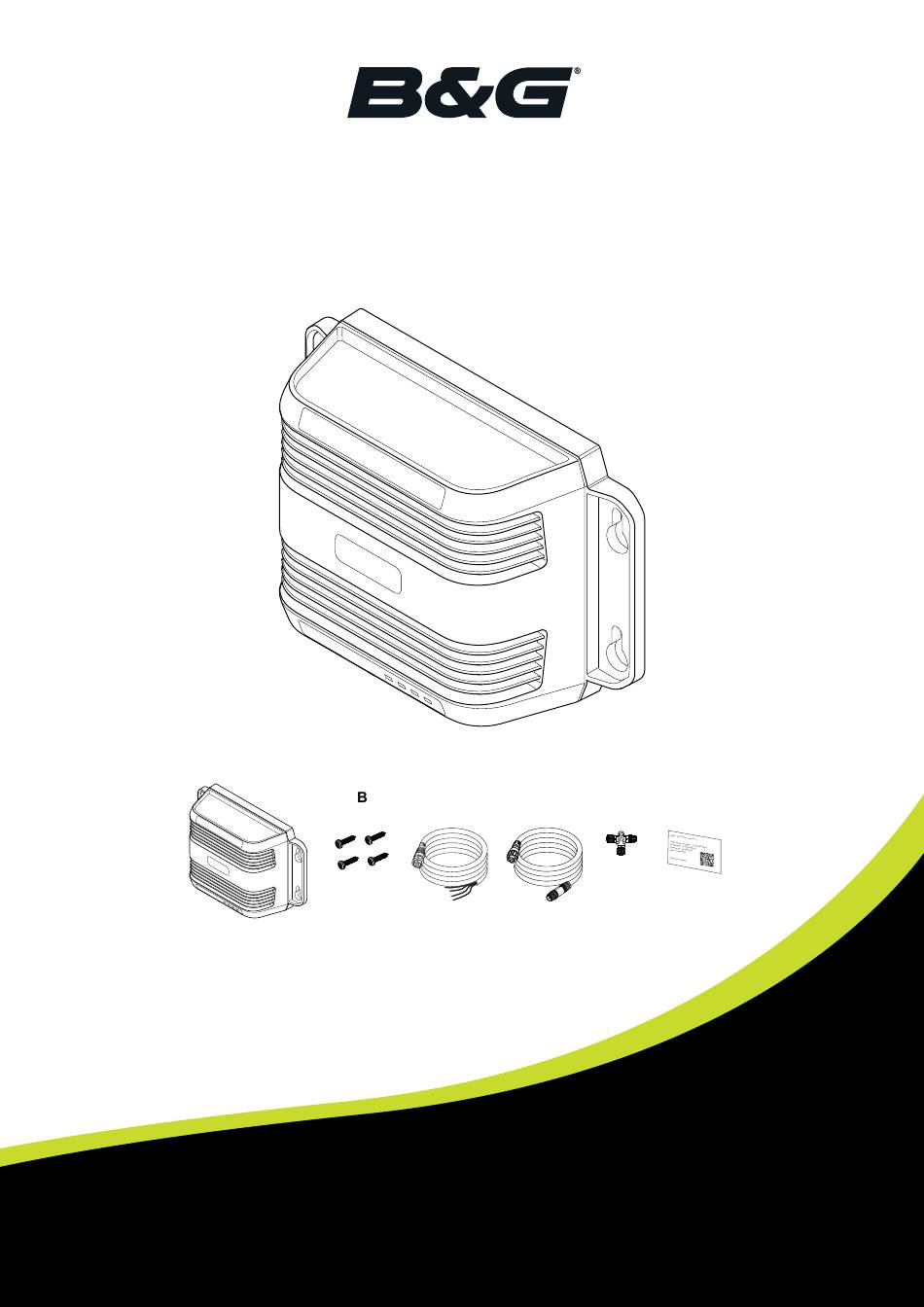

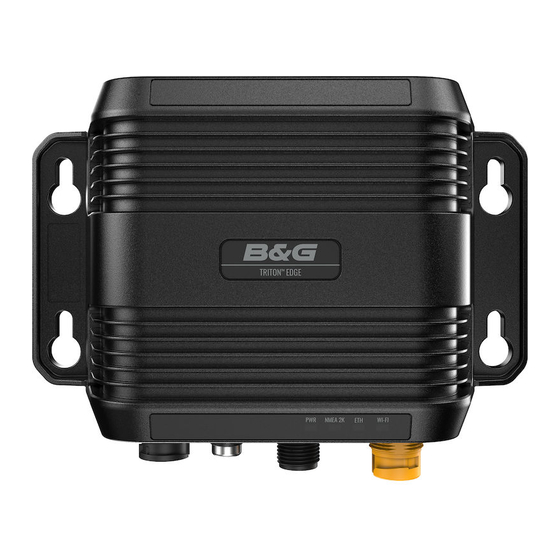

- Page 1 TRITON™ EDGE™ INSTALLATION GUIDE Parts included A Triton™ Edge™ sailing processor B Mounting screws C Power cable D NMEA 2000 cable (0.6 m/2 ft) ® E NMEA 2000 tee connector ® F Connection details card www.bandg.com...
- Page 2 Mounting Secure the Triton™ Edge™ vertically, with its cable exits facing down. To allow access to the cables, ensure there is at least 15 cm (5.9’’) of clearance between the connectors and the surface underneath them. Installation in an engine compartment is not recommended because the environment is hot and electrically noisy. To prevent interference between the unit and the vessel’s compass(es), ensure the unit is at least 50 cm (20’’) away from any compass.
- Page 3 NMEA 2000 ® Use the NMEA 2000 connector (C) with the drop cable and tee connector ® (supplied) to connect the Triton™ Edge™ to your vessel’s NMEA 2000 network. The ® network should already have a dedicated 12 V DC power supply, protected by a 3 A fuse. The following guidelines apply: the length of a single drop cable must not exceed 6 m (20 ft).
- Page 4 Technical specifications Disclaimer and acknowledgment Do not rely on any application in this product as your primary source of navigation. Review the manual and its warnings, limitations, and disclaimers in full before using this product. By Environmental proceeding, you acknowledge that you have done so and that you are trained, qualified, and licensed (where required) to properly and safely operate and navigate the vessel.
