  • Page 1: Table Of Contents

    CONTENTS GENERAL INTRODUCTION TO B&G NETWORK 2 USING THE LIGHTS KEY INTRODUCTION TO NETWORK DEPTH EXAMPLE SYSTEMS USING NETWORK DEPTH 4 SETTING THE DISPLAY LANGUAGE SELECTING THE DISPLAY MODE NETWORK ALARMS USING THE DEPTH KEY FAULT AND ERROR MESSAGES SETTING THE DEPTH UNITS...

  • Page 2: General Introduction To B&G Network

    All Network instruments can be linked to Network PILOT, Network CHART, Network GPS or Network LORAN receivers or via NMEA 0183 (v1.5) to other navigational equipment. INSTRUMENTS Network SPEED Network DEPTH Network QUAD Network WIND Network TACK Network DATA NAVIGATIONAL AIDS...

  • Page 3: Introduction To Network Depth

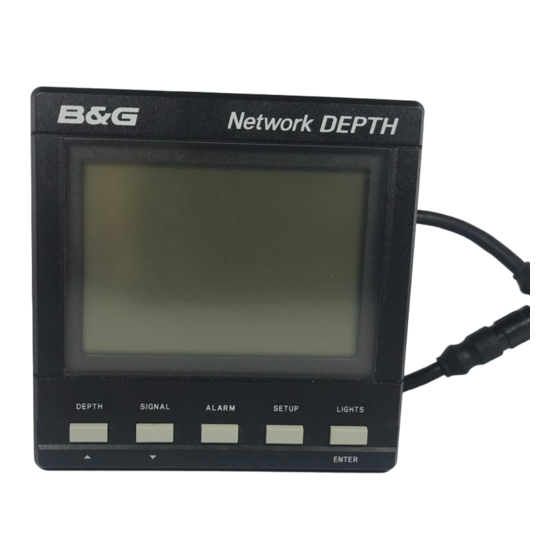

    It can operate as the main Network DEPTH unit either alone or as part of an Integrated Network Instrument System taking inputs directly from a Depth Sensor that plugs directly into the rear of the display.

  • Page 4: Example Systems Using Network Depth

    Only one Network DEPTH unit should have a depth sensor connected to it and set to transducer mode. Up to three more Network DEPTH units can be connected on to the system network, these must be set to repeater mode.

  • Page 5: Selecting The Display Mode

    SELECTING THE DISPLAY MODE The Network DEPTH unit has two operating modes. The correct mode must be selected for your network system to operate properly. Transducer mode, the unit uses and displays depth data from a depth sensor connected directly into the display unit.

  • Page 6: Using The Depth Key

    The Network DEPTH unit can measure and display water depth in the following ranges: If the Network DEPTH unit losses valid depth data, due either the actual depth being outside the working range, • 0.7 to 180 metres or to extreme turbulence in the water the LCD will show 3 •...

  • Page 7: Setting The Depth Units

    SETTING THE DEPTH UNITS The Network DEPTH unit can be set to display depth in Metres M, Feet FT or Fathoms FA. The selected units are used for displayed depth information on all Network instruments on the entire network system.

  • Page 8: The Depth Datum - D Cal

    (transducer) or the keel/outdrive depth. The Network DEPTH unit has factory set D CAL of zero, i.e. the depth is displayed from the transducer. The D CAL value is displayed in the same units as the depth.

  • Page 9: Setting The Depth Datum

    SETTING THE DEPTH DATUM D CAL zero, depth from transducer CAL TRA. D CAL positive, depth from waterline CAL W/L. D CAL negative, depth from keel CAL KEEL. NOTE: If the CAL LOCK is set then the D CAL value cannot be changed.

  • Page 10: Using The Signal Key

    USING THE SIGNAL KEY Press the SIGNAL key to display a letter of merit from A to F, this is an indication of the return echo strength. A is excellent, F is poor. The sea bed can have an effect on the quality of the return echo strength, i.e.

  • Page 11: Using The Alarm Key

    USING THE ALARM KEY DEPTH ALARMS Press the ALARM key to cycle through the following The display will show OFF if the alarm is disabled or the options: alarm value when enabled. The value will be displayed in metres M, feet FT or fathoms FA depending on the SHA A M Shallow Alarm, when enabled it will sound if selected depth units.

  • Page 12: Enabling/Disabling The Shallow Alarm

    ENABLING/DISABLING THE SHALLOW ALARM Press ALARM key Press SETUP key, Press ENTER key, Press ENTER to Press ALARM to display shallow the alarm state will the display will enable/disable the memorise the key, the value is alarm. alarm SHA A M. be displayed.

  • Page 13: Enabling/Disabling The Deep Alarm

    ENABLING/DISABLING THE DEEP ALARM Press ALARM key Press SETUP key, Press ENTER key, Press ENTER to Press ALAR to display deep the alarm state will the display will enable/disable the memorise the key, the value is alarm DEP A M. be displayed.

  • Page 14: The Anchor Alarm

    USING THE ANCHOR ALARM The anchor alarm depth limits are shown alternatively when The Anchor Alarm uses two adjustable alarm limits. The they are enabled and displayed using the ALARM key. alarm will sound if the water is deeper or shallower, by the amount set, than the original depth when the alarm was enabled.

  • Page 15: Enabling/Disabling The Anchor Alarm

    ENABLING/DISABLING THE ANCHOR ALARM Press ALARM Press SETUP Press ENTER Press ENTER to Press ALARM key to display key, the alarm key, the display enable/disable the memorise the key, to display the anchor alarm state will be will flash. alarm. change.

  • Page 16: Adjusting The Anchor Alarm Low Limit

    ADJUSTING THE ANCHOR ALARM LOW LIMIT Press ALARM key Press SETUP key Press ENTER key, Press ENTER to Press ALARM key to display anchor twice to display the display will adjust the memorise the new to display the alarm ANC A M. flash.

  • Page 17: Using The Lights Key

    USING THE LIGHTS KEY The Network DEPTH Display unit has 3 levels of illumination and off, controlled by the LIGHTS key. It also changes the illumination level of the key legends. The LIGHTS key is always illuminated so even in complete darkness the key can be located.

  • Page 18: Setting The Display Language

    SETTING THE DISPLAY LANGUAGE The Network DEPTH unit can show LCD text in English or French. To change the display language procede as follows. Press SIGNAL Press SETUP Press ENTER Press ENTER Press SIGNAL key. key twice to key if the...

  • Page 19: Network Alarms

    The display alternates between the messages below: Depth alarms can be set for the following: • Shallow water • Deep water • Anchor Watch Check your Network DEPTH or QUAD unit to see which alarm is activated. 610-HB-0501-04...

  • Page 20: Fault And Error Messages

    FAULT AND ERROR MESSAGES UNIT INTERNAL ERRORS NETWORK PILOT FAULT DISPLAY In the unlikely event that your Network DEPTH unit should If Network PILOT should have a fault the autopilot computer develop an internal error, the unit will sound it's alarm unit will send a message to all other Network Display Units.

  • Page 21: Installation

    INSTALLATION MOUNTING THE UNIT The display heads are supplied with a clip-in mounting Use the cutting template supplied to mark the centres of the bracket which allows for easy installation, access from holes for the self-tapping screw, the fixing stud holes and behind is not necessary to secure the unit in place.
  • Page 22 INSTALLATION DATA 110.0mm 25.0mm 65.0mm Locking stud fixings 110.0mm Network connector Network and Power connector Mounting Bracket Rubber Gasket 82.0mm Sun cover Display Gasket Fit the gasket around the bracket 70.0mm hole Bulkhead 82.0mm Gasket Mounting Bracket Self-tapping screws 610-HB-0501-04...

  • Page 23: Specification

    Storage Temp -25 à+70°C, -25 to +700C NMEA OUTPUT SENTENCES @ 95%RH Humidity Up to 95%RH There is no NMEA output from the Network DEPTH unit. Sealing Fully sealed front, suitable for bulkhead cockpit mounting. Vented barrel to prevent condensation. 610-HB-0501-04...
