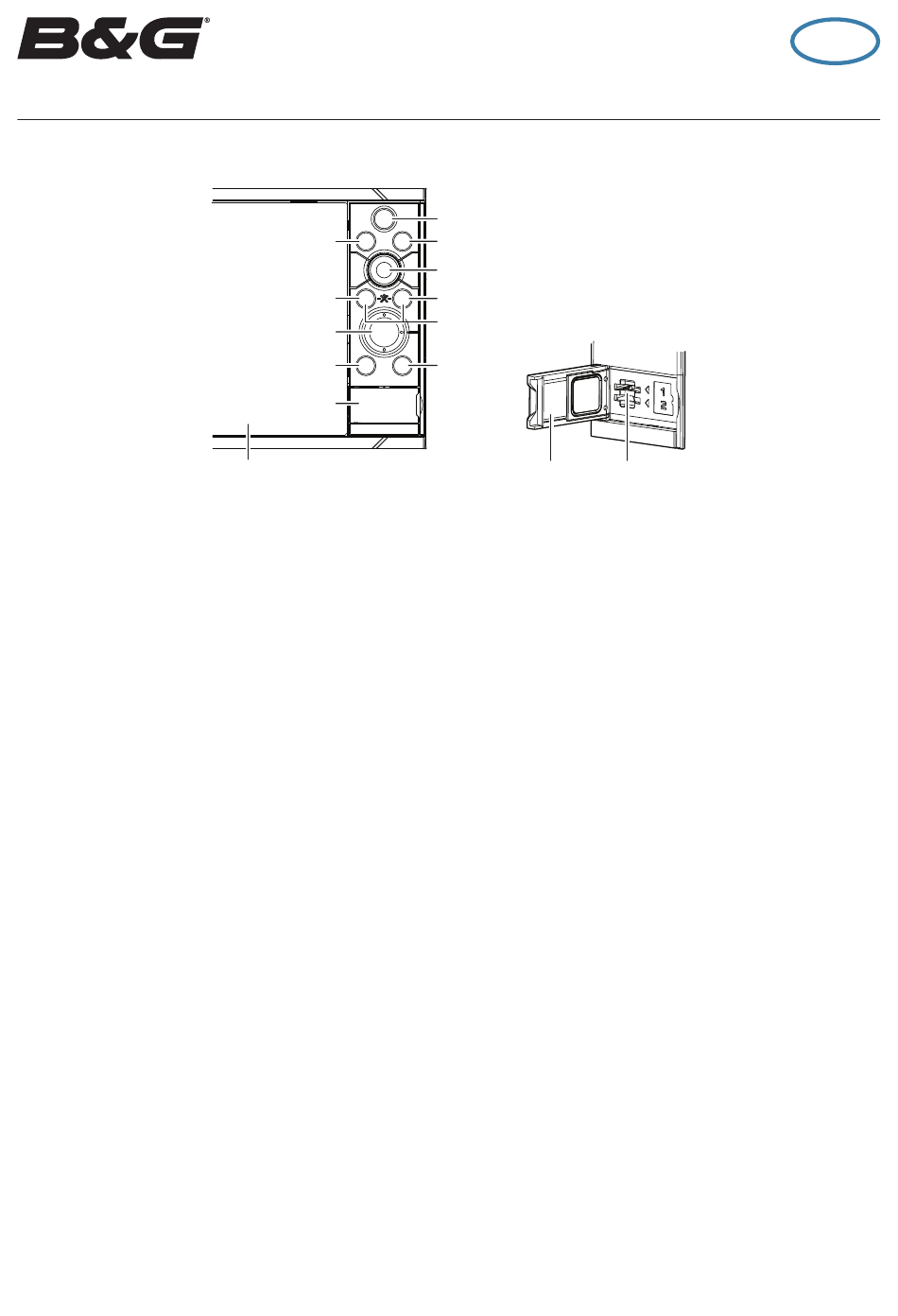

Front panel
A
Touch Screen
B
Pages/Home key
•
Press to open the Home page for page selection and setup options.
C
Wheel key user configurable key. Refer to the Operator manual.
Default without an autopilot connected to the system:
•
Short press: toggles between panels on split screen.
•
Long press: maximizes active panel on split screen.
Default with an autopilot connected to the system:
•
Short press: opens the autopilot controller and puts the autopilot in standby
mode.
•
Long press: toggles between panels on split screen.
D
Menu key
•
Press to display the active panel's menu.
E
Rotary knob
•
Turn to zoom or scroll the menu, press to select an option.
F
Enter key
•
Press to select an option or save settings.
G
Exit key
•
Press to exit a dialog, return to previous menu level, and clear cursor from panel.
01_EN_988-12597-002

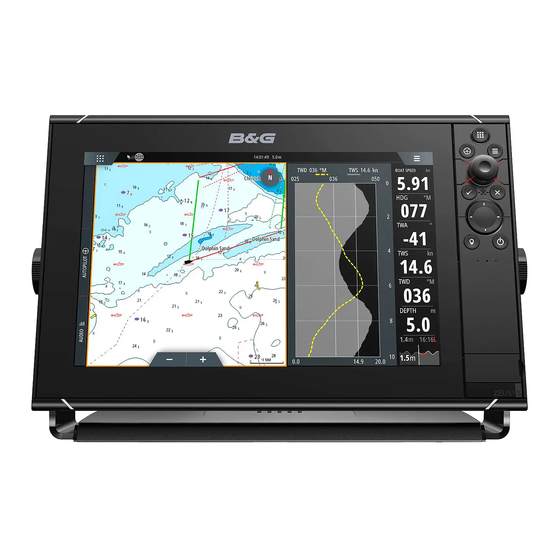

Zeus™ 3S
Quick Guide
C
F
I
J
L
A
B
D
E
G
H
K
L
Zeus
M
S |
Quick Guide - EN
3
EN
|
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for B&G Zeus 3S
Summary of Contents for B&G Zeus 3S
- Page 1 Zeus™ 3S Quick Guide Front panel Touch Screen Pages/Home key • Press to open the Home page for page selection and setup options. Wheel key user configurable key. Refer to the Operator manual. Default without an autopilot connected to the system: •...
- Page 2 MOB keys • Press simultaneously the Enter and Exit keys to create a MOB (Man Over Board) at the vessel’s position. Arrow keys • Press to activate cursor or to move cursor. • Press to navigate through menu items and to adjust a value. Mark key •...
- Page 3 Edit a favorite page Enter the Favorites edit mode: • Tap the Edit icon. • Press and hold a favorite button. Edit favorite page Delete favorite page Add new favorite page Edit an existing favorite page or configure a new page by dragging panel icons into or out from the preview area.
- Page 4 Application pages Home/pages button Application panel Menu button Control bar Adjust panel size You can adjust the panel sizes in a split page. Tap the adjust split button in the System Controls dialog to show the resize icon Drag the resize icon to set preferred panel size Save the changes by tapping the screen Charts •...
- Page 5 Waypoints To create a waypoint: • Press the Mark key to instantly add a waypoint. • Press the Rotary knob. • Select the new waypoint option in the menu. ¼ Note: With cursor inactive, the waypoint is placed at vessel’s position. With cursor active, the waypoint is placed at selected cursor position.
- Page 6 TimePlot panels Two predefined layouts. Tap left/ right panel arrow to switch between layouts. Autopilot • Activate the autopilot controller from the Control bar. • Select an autopilot mode by pressing the mode button from the Control bar. • Switch to standby mode from the autopilot controller or by using a physical Standby key.
