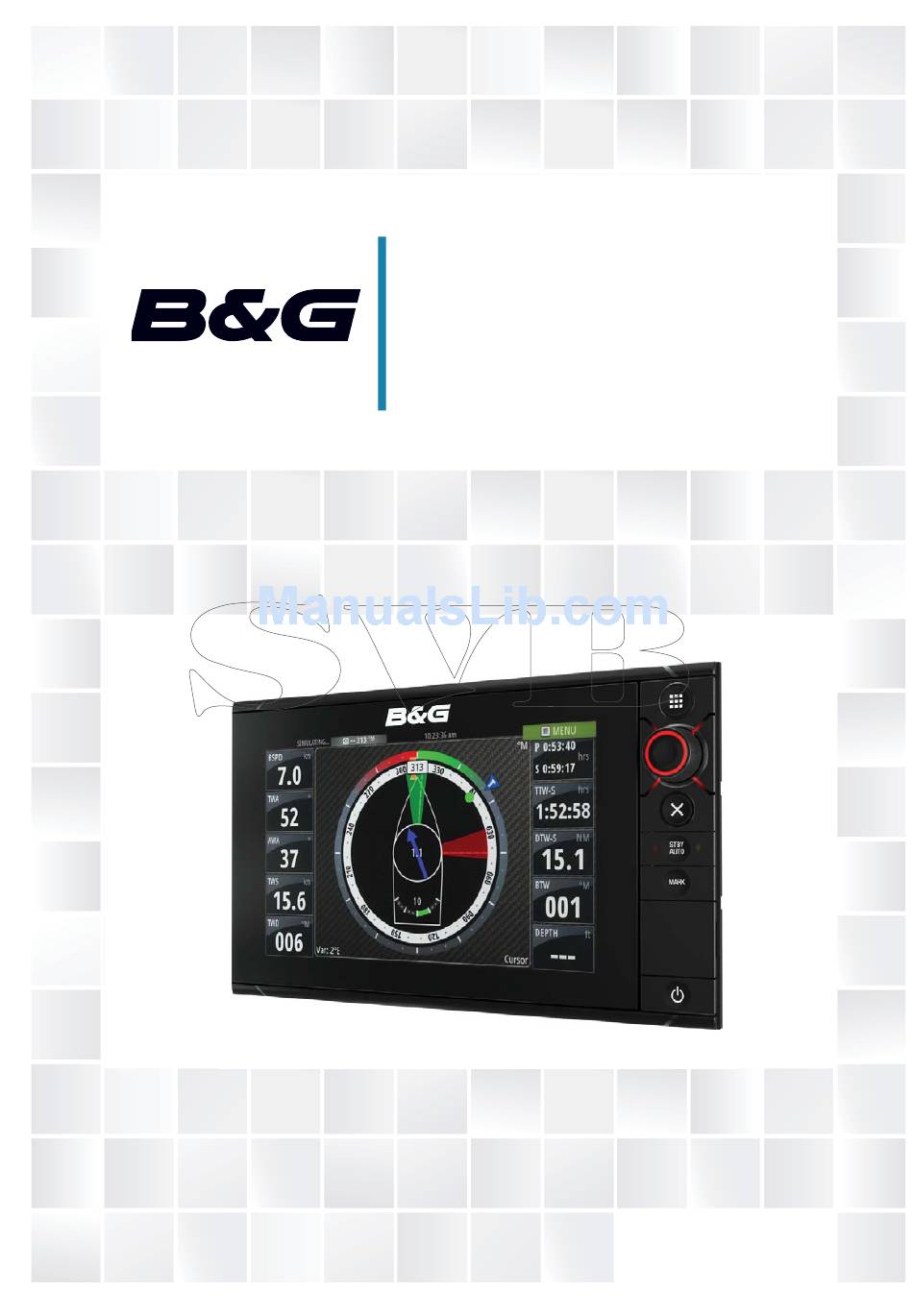

- Page 1 Zeus2 series Installation Manual ENGLISH bandg.com...
- Page 3 Declarations and conformance This equipment is intended for use in international waters as well as coastal sea areas administered by countries of the E.U. and E.E.A. Compliance Statements The B&G Zeus2 series; • complies with CE under R&TTE directive 1999/5/EC •...
- Page 4 Broadband Radar, Broadband Sonar, and SonarHub are trademarks of Navico, registered in the US and other countries About this manual This manual is a reference guide for installing the B&G Zeus2 series. The manual does not cover basic background information about how equipment such as radars, echosounders and AIS work.
-
Page 5: Table Of Contents
Contents Zeus2 overview Front - controls Rear - connections Hardware installation Display mounting location Display installation Wiring Guidelines Power connection Power Control connection External alarm Connect an external monitor NMEA 2000 – connection to backbone NMEA 0183 device connection Ethernet device connection Video in Software setup First time startup... -
Page 7: Zeus2 Overview
Zeus2 overview The Zeus2 range of multifunction displays consist of rugged marine displays with built in powerful marine processors. Display size choices are 7”, 9”, and 12” . All models come with a built in 10 Hz high gain GPS antenna. The ability to network over NMEA 2000 and ethernet allows access to data as well as control of numerous optional devices that can provide radar, audio entertainment, weather and even digital switching. -
Page 8: Front - Controls
Front - controls ZEUS2 9/12 ZEUS2 7 Touch screen - cursor control, chart panning and zoom, context related menus Home key - opens home page for page selection and setup options Rotary knob - zooming and menu scrolling / selection by press Exit - exits menu dialogue, clears cursor from screen STBY/AUTO - autopilot control Mark - places waypoint at vessel location... -
Page 9: Rear - Connections
Rear - connections ZEUS2 9/12 ZEUS2 7 Ethernet - connection to high bandwidth network modules HDMI - video output for external monitor NMEA 2000 - dynamic data and user database sharing Video - input for video sources such as cameras Power - 12 V or 24 V supply input Zeus2 overview | Zeus2 Installation Manual... -
Page 10: Hardware Installation
Hardware installation Display mounting location Choose the mounting locations carefully before you drill or cut; The display should be mounted so that the operator can easily use the controls and clearly see the display screen. B&G displays are high-contrast and anti-refl ective, and are viewable in direct sunlight, but for best results install the display out of direct sunlight. -
Page 11: Display Installation
Display installation Bracket mounting Place the bracket in the desired mounting location, and use a pencil or permanent marker to mark drilling locations. Note: ensure that the chosen location has enough height to accomodate the display fi tted in the bracket, and allows tilting of the display. - Page 12 Flush mounting Check the template for scaling accuracy, using a tape measure or ruler against the ruler printed on the template. Cut away excess paper if required, and tape template 7" 8" 2" to mounting surface. Check it is correctly aligned to a 7"...
-
Page 13: Wiring
Wiring Guidelines Care must be taken when running cables in a boat, to ensure that the cables are protected from damage and do not interfer with mechanical systems such as throttle cables and hatch covers. At each end of a cable, it is advisable to leave a short loop hanging lower than the termination point. -
Page 14: Power Control Connection
Power Control connection The yellow Power Control wire on the Zeus2 power cable can either be an input that will turn on the processor when power is applied, or an output that turns on other devices when the processor is powered on. It can be confi gured at the installation stage to control the power state of displays and compatible devices. -
Page 15: External Alarm
Power Control master/slave bus Turning on the ‘master’ device turns on connected ‘slave’ devices. Zeus2 displays Power cable Radar Interface box Sonic Hub Ground wire Positive wire Power control wire If the left Zeus2 turns on using the power button and is set as the Power Control Master, it will output voltage on the Power Control bus to power on the other Zeus2, the Radar Interface, and the SonicHub. -
Page 16: Connect An External Monitor
For sirens that draw more than 1 Amp, use a relay Connect an external monitor The Zeus2 12 off ers an HDMI output which can be connected to an external monitor to replicate video at a remote location. MO series monitor HDMI cable Zeus2 12 HDMI cable - waterproof connector (use in exposed installations) -
Page 17: Nmea 2000 - Connection To Backbone
NMEA 2000 – connection to backbone Device connection The Zeus2 multi function displays are equiped with an NMEA 2000 data port, which allows the receiving and sharing of a multitude of data from various sources. Essential network information • The standardised physical cables/connectors for NMEA 2000 are ‘Micro-C’ and ‘Mini-C’, directly derived from the automation industy’s ‘DeviceNET’... -
Page 18: Nmea 0183 Device Connection
The following drawing demonstrates a typical small network. The backbone is made up of direcly interconnected T-piece joiners and an extension cable, which is terminated at each end. 12 V DC GPS antenna Zeus2 Broadband radar interface SonicHub ‘Drop’ cables (should not exceed 6m (20’) each) Power cable Micro-C T junctions Backbone... -
Page 19: Ethernet Device Connection
multiple receivers (Listeners). The number of receivers is fi nite, and depends largely on the receiving hardware. Typically driving three devices is possible. Ethernet device connection Ethernet is used to interconnect high bandwidth devices such as radar, sonar, and other multi function displays. -
Page 20: Software Setup
Software setup The Zeus2 requires some initial confi guration before use, in order to get the most out of the product. The following sections focus on settings that typically will not require change once confi gured. User preference settings and operation are covered in the operator manual. Pressing the home key brings up the home page, which has three distinct panels. -
Page 21: Time And Date
Time and Date Confi gure time settings to suit vessel location. Power Control setup Determines unit response to signal applied to yellow wire of power cable. These settings do not require adjustment if the yellow wire is connected to ignition or to a stand-alone switch that applies 12V/24V. -
Page 22: Device List
Group source selection B&G multifunction displays, autopilot controllers, and instruments have the ability to; • use data sources (eg position, wind direction, etc) that all other products on the network use, or alternatively use a data source independently from other units. •... -
Page 23: Diagnostics
Diagnostics The NMEA 2000 tab on the diagnostics page can provide information useful for identifying an issue with the network. Bus state simply indicates whether the bus is powered, but not necessarily connected to any data sources. However if bus shows as ‘off ’ , but power is present along with an increasing error count, it is possible that termination or cable topology is incorrect. - Page 24 Scanner type Identifi es the model of scanner connected to the network. Software version Check to make sure you have the latest software. check website for the latest version. Serial Number This number should be recorded for support and insurance purposes. MARPA status The MARPA status can identify if a heading sensor is on the network and that the radar is receiving heading information essential for MARPA calculations.
-
Page 25: Video In Confi Guration
control until the sidelobe returns are just eliminated. You may need to monitor 5-10 radar sweeps to be sure they have been eliminated. • Traverse the area again and readjust if sidelobes returns still occur. • Exit the installation menu. Restore radar to Factory Default This can be used to revert all user adjustments. -
Page 26: Autopilot Setup
Autopilot setup Verifying the autopilot connection When an AC12N, AC42N, or SG05 is connected to the Zeus2 system, the Zeus2 will automatically detect the autopilot and an Autopilot menu icon will be included in the ‘Settings’ menu. If no ‘Autopilot’ icon is available in the menu, establish the connection by running the auto select process. - Page 27 Set the drive voltage • Refer to the drive unit table in the AC12N/AC42N Installation manual or to your drive unit documentation for information. Run the rudder test as described in the on-screen instructions Note: If the boat uses power assisted steering, it is important that the engine or electric mo- tor used to enable the power assist steering is turned on prior to this test.
- Page 28 rudder from continuous hunting. A deadband will cause inaccurate steering. Note: The rudder deadband setting is not available when the autopilot is confi gured for Virtual Rudder Feedback. Seatrials A seatrial can only be performed if the dockside settings are completed and confi rmed. The seatrial must always be performed in open waters at a safe distance from other traffi c.
- Page 29 Setting the Transition speed (HI/LO) This is the speed at which the system automatically changes from LO to HI steering parameters. On power boats it is recommended that you set a value that represents the speed where the hull begins to plane or the speed where you change from slow to cruising speed. On sailboats the transition speed should be set to around 3-4 knots to give the best response in a tack.
- Page 30 Setting sailing parameters Note: Sailing parameter settings are only available if the boat type is set to Sail. Tack time When performing a tack in WIND mode, the rate of turn (tack time) can be adjusted. This will give single-handed sailors time to handle the boat and the sails during a tack. A turn performed without shifting wind side, will also be made at a controlled turn rate.
- Page 31 Counter rudder too low; overshoot response Counter rudder too high; sluggish and creeping response Correct setting or counter rudder; ideal response Auto trim This parameter defi nes how fast the autopilot shall correspond after having registered a heading error. The standard value is 40 seconds which should work well on most boats. Rule of thumb: Set to same value (seconds) as the boat’s length in feet.
-
Page 32: Fuel Setup
Fuel setup The fuel utility monitors a vessels fuel consumption. This information is totalled to indicate trip and seasonal fuel usage, and is used to calculate fuel economy for display on instrument pages and the data bar. To use the utility, a Navico Fuel Flow sensor (petrol/gasoline only), or a NMEA 2000 engine adaptor cable/gateway with Navico Fuel Data Storage device must be fi tted to the vessel. - Page 33 Select the ‘Calibrate’ option. Set the ‘actual amount used’ based on amount of fuel added to tank. Select OK to save settings. The ‘Fuel K-Value’ should now show a new value. Note: To calibrate multiple engines repeat the steps above, one engine at a time. Alterna- tively, run all engine simultaneously, and divide the ‘Actual amount used’...
-
Page 34: Czone Setup
CZone setup In order to communicate with the CZone modules connected to the network, the Zeus2 must be assigned a unique CZone Display Dipswitch setting. The functionality of the CZone system is determined by the CZone Confi g File (.zcf ), which is stored on all CZone modules and supported B&G displays, such as the Zeus2. -
Page 35: Software Updates And Data Backup
Software updates and data backup From time to time B&G releases software updates to its existing products. Updates are created for a variety of reasons; to add or improve features, to add support for new external devices, or to fi x software bugs. Updates can be found on the B&G website: http://www.bandg.com/Support/Downloads/ The Zeus2 may be used to apply software updates to itself, and to supported NMEA 2000 and ethernet devices, with fi les read off an SD card. -
Page 36: Nmea 0183 Setup
NMEA 0183 setup The NMEA 0183 port must be set to suit the speed of connected devices, and can be be confi gured to output only the sentences required by listening devices. Receive waypoint Select this option to allow device capable of creating and exporting waypoints via NMEA 0183 to transfer directly to the Zeus2. -
Page 37: Ethernet Setup
Ethernet setup No special setup is required for establishing an ethernet network, it is all ‘plug and play’ . An NEP-2 connected between an Zeus2 and another network module (e.g. 4G radar) will automatically start working, and relay data between the two devices. Diagnostics The UDB (User Data Base) tab on the diagnostics page, provides information on Ethernet activity, as shown below. -
Page 38: Wifi Setup
Wifi setup To connect to a GoFree device a suitable wifi Android tablet or Apple ipad is required. Navigate to the wifi network connection page on the tablet, and fi nd the ‘GoFree Wifi xxxx’ network. Connect to the network using the eight character password printed on the silver label of the GoFree module. - Page 39 Channel Channel setting is available in order to overcome potential interference to the GoFree device by another RF device transmitting in the same frequency band. Advanced Tools are available within the Zeus2 software to assist in fault-fi nding and setting up the wifi network.
-
Page 40: Accessories
Accessories Part number Description 000-11586-001 Zeus2 LITERATURE PACK 000-11587-001 Zeus2 CHART CARD DOOR 000-11588-001 Zeus2 CONNECTOR COVERS (7/9”) 000-11589-001 Zeus2 CONNECTOR COVERS (12”) 000-11591-001 Zeus2 7 SUN COVER 000-11593-001 Zeus2 9 SUN COVER 000-11595-001 Zeus2 12 SUN COVER 000-11598-001 Zeus2 7 EDGE BEZELS (PAIR - SILVER AND BLACK) 000-11599-001 Zeus2 9 EDGE BEZELS (PAIR - SILVER AND BLACK) 000-11600-001... -
Page 41: Supported Data
Supported data NMEA 2000 compliant PGN List NMEA 2000 PGN (receive) 59392 ISO Acknowledgement 59904 ISO Request 60928 ISO Address Claim 61184 Parameter Request/Command 65285 Temperature with Instance 65289 Trim Tab Insect Confi guration 65291 Backlight Control 65292 Clear Fluid Level Warnings 65293 LGC-2000 Confi guration 65323... - Page 42 129540 GNSS Sats in View 129794 AIS Class A Static and Voyage Related Data 129801 AIS Addressed Safety Related Message 129802 AIS Safety Related Broadcast Message 129808 DSC Call Information 129809 AIS Class B “CS” Static Data Report, Part A 129810 AIS Class B “CS”...
- Page 43 NMEA 2000 PGN (transmit) 61184 Parameter Request/Command 65287 Confi gure Temperature Insects 65289 Trim Tab Insect Calibration 65290 Paddle Wheel Speed Confi guration 65291 Backlight Control 65292 Clear Fluid Level Warnings 65293 LGC-2000 Confi guration 126208 ISO Command Group Function 126992 System Time 126996...
-
Page 44: Nmea 0183 Supported Sentences
NMEA 0183 supported sentences TX / RX Receive Transmit Navigation Receive Transmit Echo Receive Transmit Compass Receive Transmit Wind Receive Transmit AIS / DSC Receive AIS sentences are not bridged to or from NMEA 2000. MARPA Transmit These are only output sentences 38 | Supported data | Zeus2 Installation Manual... -
Page 45: Specifi Cations
Specifi cations Mechanical/Environmental Model Zeus2 7 Zeus2 9 Zeus2 12 Casing PC / ABS Operating temp -15°C to +55°C Water ingress IPX6 and 7 Weight (exluding mounting hardware) 1.071 kg 1.414 kg 3.171 kg Display brightness 1200nits 1200nits 1200nits Display resolution 480 x 800 (H 480 x 800 (H 800 x 1280 (H... -
Page 46: Dimensioned Drawings
Dimensioned drawings Zeus2 7 and Zeus2 9 ZEUS2 7: 105.6mm (4.16”) ZEUS2 9: 106.6mm (4.20”) ZEUS2 7: 231.5mm (9.11”), ZEUS2 9: 279.4mm (11”) ZEUS2 7: 84.0mm (3.31”) ZEUS2 9: 84.0mm (3.30”) ZEUS2 7: 122mm (4.8”) ZEUS2 7: 251.1mm (9.89”), ZEUS2 9: 305.1mm (12.0”) ZEUS2 9: 147.1mm (5.79”) Zeus2 12 105.6mm (4.16") - Page 50 0980...
