Recommended Installation Procedure - ASL INTERCOM iPAM400 Product Manual

4.3

Recommended Installation Procedure

Please read and observe the instructions and guidelines in Section "12 Safety and
!
!
Precautions" (page 129) prior to installation. Failure to follow these instructions and
guidelines may cause personal injury and/or damage to the equipment.
1. Fit the mainframe into a 19-inch standard equipment rack on supporting rails, and secure the
mainframe in position using the fixing screws and washers provided; see Figure 6.
1) If the iPAM400 is intended to be table or shelf mounted, i.e. not in a 19-inch
!
!
standard rack, then the unit should always be fitted into a 19-inch desk case or
flight case. This is to prevent ingress of dust or debris that may otherwise occur
over a period of time.
2) This equipment is heavy (max. 20 kg). Please lift and handle with care to avoid
strain or impact injuries, and follow the recommended installation procedure.
Install modules after mounting mainframe in equipment rack.
3) Do not use the handles to lift or carry the mainframe. The handles are designed for
sliding the unit into and out of the equipment rack, and not to support its weight.
Use the underside edges of the mainframe to lift and carry it.
4) Always ensure adequate ventilation is provided for the equipment by fitting 1U
ventilation panels above and below the equipment, and do not obstruct ventilation
holes.

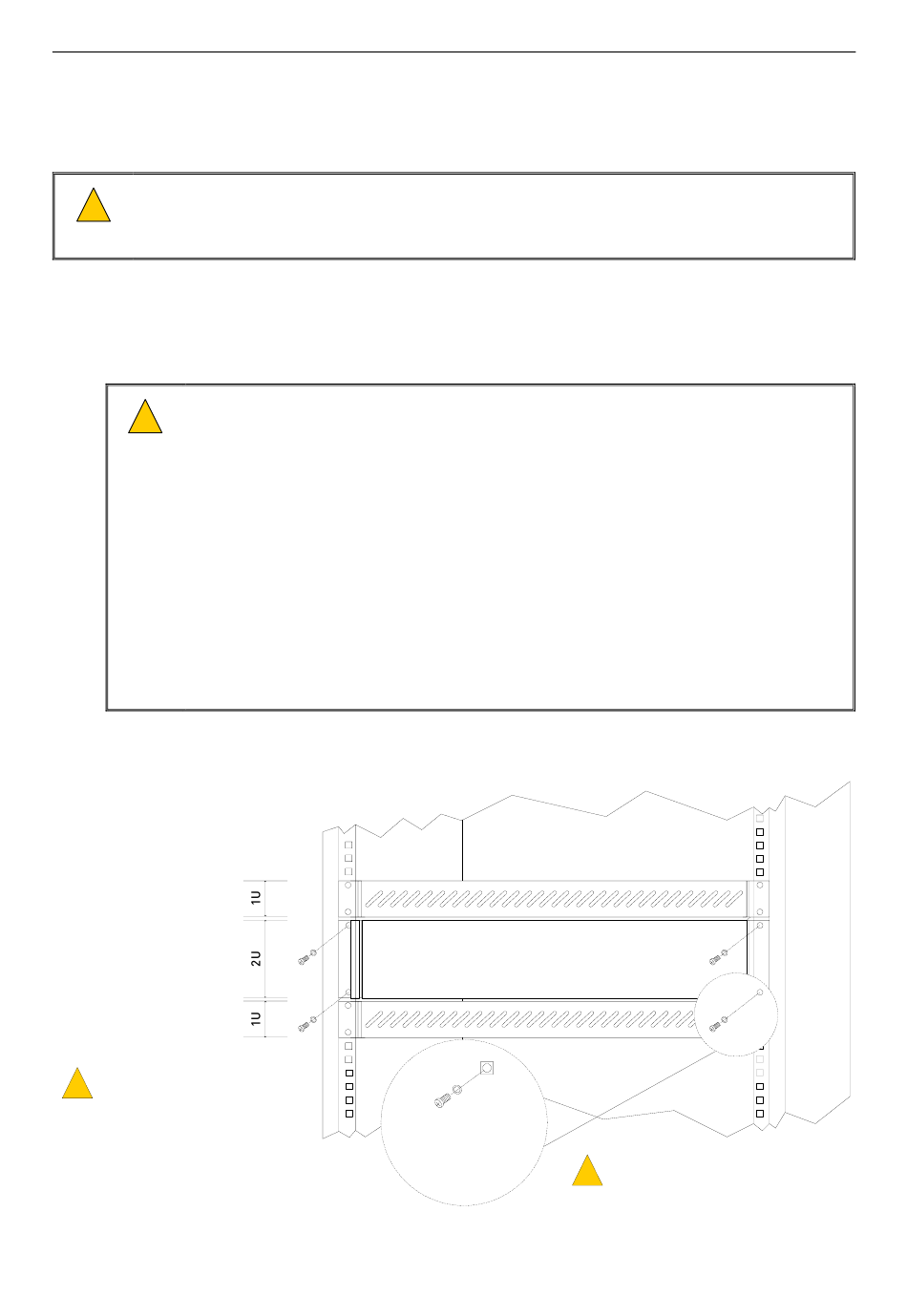

Figure 6 Installing the iPAM400 into the rack
VENTILATION PANEL
iPAM400
VENTILATION PANEL
ENSURE 1U VENTILATION
! !
PANELS ARE FITTED ABOVE AND
BELOW THE EQUIPMENT.
DO NOT OBSTRUCT VENTILATION
HOLES.
iPAM400 – Product Manual
GENERIC 19-INCH 2U FORMAT
M6 POZIDRIV SCREW
M6 PLAIN WASHER
M6 CAGE NUT
U-0629-0171.doc – Issue: 04 complete, approved
Page 30 of 138
SUPPORTING RAILS MUST BE USED.
!
!
