Summary of Contents for ASL INTERCOM DAX200
-

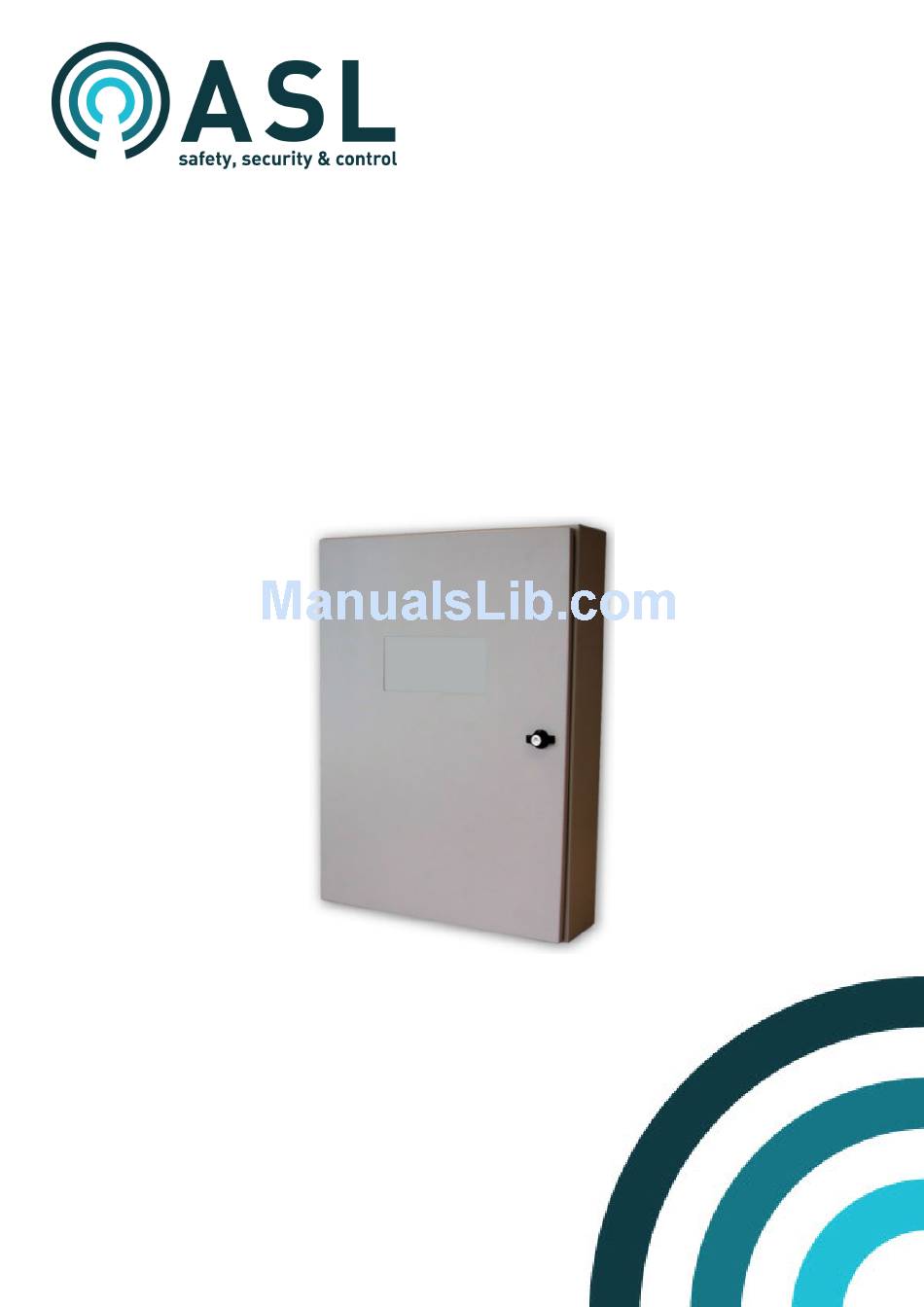

Page 1: Installation Guide
DAX200/DAX400 Intellevac Expansion Amplifier Units Installation Guide ASL Document Ref.: U-0518-1201.doc Issue: 02 complete, approved - Date: 01/06/09 Part Number: M0518_79... -
Page 2: Table Of Contents
Mechanical Dimensions ........................23 Safety and Precautions ......................... 25 Additional User Documentation: Intellevac system user documentation and additional reference information are available from the ASL website: www.asl-control.co.uk Copyright © 2009 Application Solutions (Safety and Security) Ltd. Application Solutions (Safety and Security) Ltd. -
Page 3: Installation
(DAX400 has the same components) BATTERIES The battery pack may be provided by ASL, or by the customer according to the following specification: • DAX200 (200 W Expansion Amplifier Unit): 2 x 12 V 24 Ah (Yuasa Part No.: NPL24–12IFR) •... -
Page 4: Installation Requirements
The Expansion Amplifier Unit electronics module • The DAX Expansion Amplifier Unit’s batteries and straps: DAX200: 2 x 12 V 24 Ah (Yuasa Part No.: NPL24–12IFR) DAX400: 2 x 12 V 38 Ah (Yuasa Part No.: NPL38–12IFR) • Electric drill •... - Page 5 Failure to follow these instructions and guidelines may cause personal injury and/or damage to the equipment. Pictures in the following procedure show the DAX200 200 W Expansion Amplifier Unit as standard. The DAX400 400 W Expansion Amplifier Unit has similar components in the same positions. Pictures of the DAU400 are also included when required for clarity.
- Page 6 Remove the electronics module, observing Remove the chassis plate from the back the following precautions. box by undoing the M8 securing nuts (4 on DAX200, and 6 on DAX400); see Figure This equipment is very heavy. Please lift Figure 5 DAX200 –...
- Page 7 DAX200: d = ~ 28 cm equipment – 51 kg for DAX200 and 70 kg DAX400: d = ~ 31 cm for DAX400. Ensure that the wall is made of a suitable material (not stud walls for example) and that adequately rated fixings are used.
- Page 8 DAX200/DAX400 – Installation Guide Figure 8 DAX200 – Install DIN Rail Interlink The remaining procedure explains the Adaptor installation of DAX units with default configuration as follows: INTERLINK • 4 inputs and 4 outputs: each output ADAPTOR DETAIL configured for single speaker circuit.
- Page 9 Figure to a DAU should be set to address ‘2’; the second DAX to address ‘3’, if connected; Figure 9 DAX200 – Remove Top Cover and so on. Unit Address ‘1’ is used by the DAU’s built-in amplifier system. Figure 11 DAX200 –...
- Page 10 DAX200/DAX400 – Installation Guide Ensure that the power to the unit is Connect the Electronics Module’s ribbon disconnected. cable and the field wiring to the DIN rail Interlink Adaptor; see Figure • Ensure that the mains and battery isolator switches are in the off The top edge of the chassis plate has position.
- Page 11 Figure 15 RED WIRE RED WIRE DAX400. Ensure correct positioning of batteries: POSITIVE NEGATIVE POSITIVE NEGATIVE DAX200: top side of batteries facing the operator. DAX400: front side of batteries facing the operator. Issue: 02 complete, approved Page 11 of 28...
- Page 12 DAX200/DAX400 – Installation Guide Figure 15 DAX400 – Battery Connection Figure 16 DAX200 – Connect Mains Supply BATTERY MAINS INPUT DETAILS INPUTS DAX400 Harmonised Colours: N = Blue Earth = Green/Yellow L = Brown FRONT SIDE OF BATTERIES RED WIRE...
- Page 13 DAX200/DAX400 – Installation Guide Re-fit the top cover by reversing the The unit is ready for commissioning. procedure carried out in step 23. Refer to the Intellevac System Software Commissioning Guide. On DAX400, ensure that the earthing strap is re-fitted to the top cover.
-
Page 14: Connections
DAX200/DAX400 – Installation Guide Connections Figure 18 DAX200 – Connectors SPEAKER OUTPUT DETAIL FAULT A FAULT B B– A– MAINS SPEAKER SPEAKER SPEAKER SPEAKER INPUTS OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 BATTERY SWITCH MAINS SWITCH TOP VIEW DAX200 (DAX400 has the same connectors at same locations.) - Page 15 DAX200/DAX400 – Installation Guide Speaker Outputs 1 to 4 Signal Description A − Circuit A Zone Out − , 100 V RMS audio Circuit A Zone Out+, 100 V RMS audio B − Circuit B Zone Out − , 100 V RMS audio Circuit B Zone Out+, 100 V RMS audio Cabling connector: 4-Way pluggable Wago male cage clamp terminal (5.08 mm)
- Page 16 DAX200/DAX400 – Installation Guide Terminal Signal Connect to DAU’s Description Audio 1+ OUT5+ Balanced audio input +VE connection Audio 1– OUT5- Same as above, but –VE connection Audio 2+ OUT6+ Balanced audio input +VE connection Audio 2– OUT6- Same as above, but –VE connection...
- Page 17 DAX200/DAX400 – Installation Guide DAU Connections (for reference only) Figure 19 Connection Diagram Example LOW LEVEL AUDIO DAU200 DAX200 (Address=1) (Address=last) AUDIO 1+ OUT n3+ AUDIO 1- OUT n3- DAX200 (Address=3) AUDIO 1+ OUT n2+ AUDIO 1- OUT n2- DAX200...
- Page 18 DAX200/DAX400 – Installation Guide Figure 20 DAU’s Connectors AUDIO OUT CAN BUS AUDIO OUT AUDIO MON N.C. = Not Connected AUDIO OUT RJ45 Connector Signal Description OUT'n'+ Balanced audio output +VE connection 0 dBu @ 600 Ω impedance OUT'n' −...
-
Page 19: Dax And Dau Positioning
DAX200/DAX400 – Installation Guide DAX and DAU Positioning In Voice Alarm and any safety application, the cabling should not leave the confines of the unit’s enclosure. Therefore if fireproof interlinking cables are not used, then DAU and DAX units must be located immediately adjacent to each other and interconnected by a bushed link. - Page 20 DAX200/DAX400 – Installation Guide Figure 22 DAU and DAX Mounted One Above the Other DAU or DAX DAU or DAX Suitable link position with 25 mm diameter bush (Observe battery support position) Issue: 02 complete, approved Page 20 of 28...
-
Page 21: Product Specification
DAX200/DAX400 – Installation Guide Product Specification General DAX200 Maximum AC Power Consumption........................600 VA (100 V 1 kHz sinewave into rated resistive loads) AC Supply Fuse Rating (internal) ..................T5A H (use fuses to IEC 60127) Battery Capacity/Type ......2 x 12 V 24 Ah Valve regulated SLA (for 24 h Standby +0.5 h Alarm Back-up) Yuasa Part No.: NPL24–12IFR... - Page 22 DAX200/DAX400 – Installation Guide Output Configuration DAX200 4 zones of 50 W........................Each zone configurable as: A+B circuit (25 W - A, 25 W - B) OR single circuit (50 W) + 100 W Standby amplifier 2 zones of 100 W........................Each zone configurable as:...
-
Page 23: Mechanical Dimensions
DAX200/DAX400 – Installation Guide Mechanical Dimensions Figure 23 DAX200 Mechanical Dimensions 700 mm 29 mm 642 mm Issue: 02 complete, approved Page 23 of 28... - Page 24 DAX200/DAX400 – Installation Guide Figure 24 DAX400 Mechanical Dimensions 790 mm 366 mm 732mm 29 mm Issue: 02 complete, approved Page 24 of 28...
-
Page 25: Safety And Precautions
DAX200/DAX400 – Installation Guide Safety and Internal Mains Battery isolator switches included service Precautions purposes. If the inner electronic module’s cover removed then hazardous voltages are still accessible even if the Internal Mains Isolator switch is OFF. Environmental The temperature and humidity ranges shown in the specifications for this product must not be exceeded. - Page 26 DAX200/DAX400 – Installation Guide Unpacking and Handling Packing for Repair The equipment should be unpacked and inspected immediately on receipt. If damage has occurred please electronics assemblies must advise your carrier or supplier. properly packed protective packing for transport, to prevent physical and ESD damage.
- Page 27 DAX200/DAX400 – Installation Guide Notes Issue: 02 complete, approved Page 27 of 28...
-
Page 28: Service And Warranty
Service and Warranty Name and Address of Authorised Distributor: This product carries a full warranty. For full details of warranty and service agreements, please contact the Authorised Distributor who supplied the product to you. Exclusions The warranty does NOT cover: Customer misuse, including incorrect installation.
