Observe all safety information both on the equipment and in in the Safety and Precautions.
This document only provides instructions to mount the INTEGRA to the wall.
Ensure you refer to the full INTEGRA Installation Guide for correct installation and wiring details.
For all user documentation please go to www.asl-control.co.uk/downloads or scan the QR code.
Do not try to move or unpack an assembled unit without assistance.
The INTEGRA is heavy:
Max. > 30 kg for the back box (and door) only
•
Max. > 45 kg with the Electronics Module fitted
•
•
Max. > 95 kg with the Electronics Module and both backup batteries fitted
It may take two or more people to install the Back Box with Electronics Module fitted.
1.

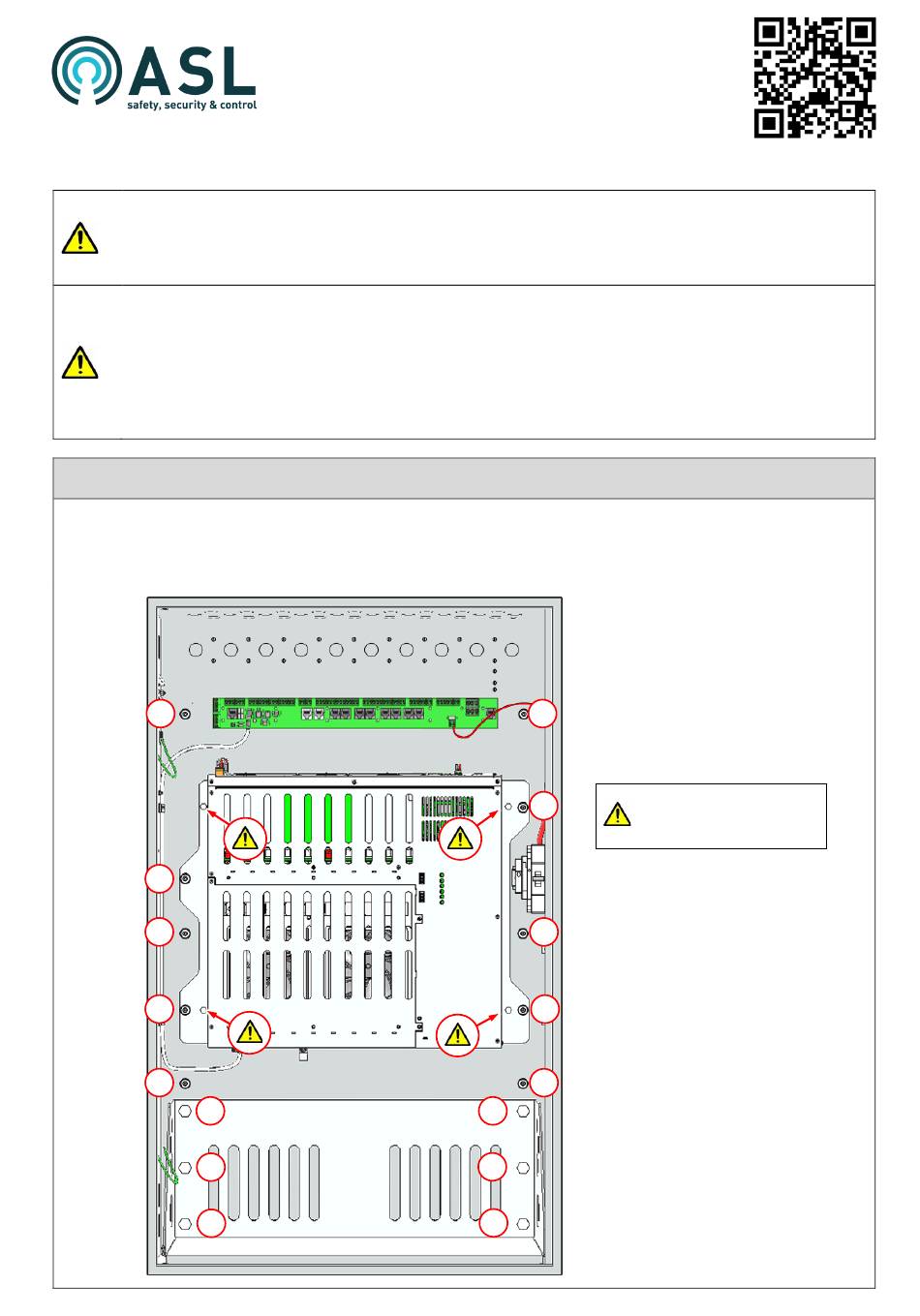

Undo 6 x M6 nuts (A) securing the back box to the wall-mount frame.
2.
Undo 4 x M6 nuts (B) securing the Electronics Module to the wall-mount frame (if not already done).
3.
Undo the 6 x M8 hex head screws securing the battery tray to the back box and wall-mount frame (C).
A
B
A
B
A
C
C
C
U-0732-0142 (M0732_31) – Issue 01
INTEGRA Products
Wall-Mount Instructions
1
Installing the Wall-Mount Frame
Application Solutions (Safety and Security) Limited
A
Do not remove the transit
B
screws if not removing the
Electronics Module.
A
B
A
C
C
C
Page 1 of 16
