TOOLS NEEDED FOR INSTALLATION
- 10mm & 8mm Socket
- Ratchet & Extension
PARTS LIST IMAGES

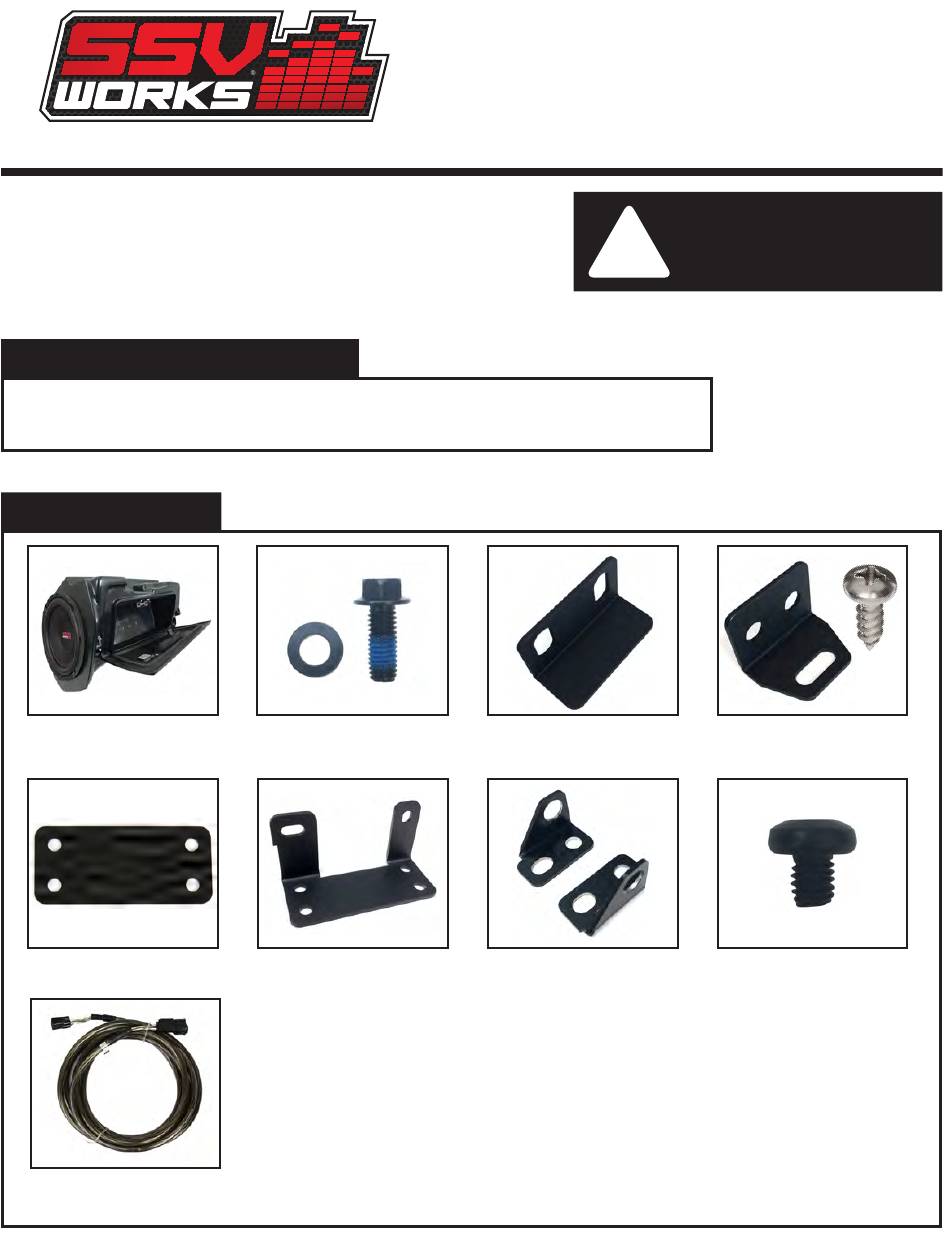

1. RZ4-GB10 Enclosure
(door not included)
5. Flat Mounting Bracket "A"
9. B-H1173 Audio Signal
Extension Cable - 3ft
- T-30 & T-40 Torx Driver
- #3 Phillips Screwdriver
2. 8mm Socket Head Screws &
Washers x14
6. Mounting Bracket "B"
PARTS LIST 2/4
Glove Box Subwoofer Enclosure
!
- #2 Phillips Screwdriver
- Panel removal tool
3. Glove Box Door Bracket
L
R
7. Left & Right Door Hinge
Brackets
Please read and understand these
instructions completely before
installation to avoid possible injury,
or damage to the accessory or vehicle.
4. Lower Mounting Bracket
with #14 Screw x1 each
8. M6 x 8mm (T30 torx) Screw
x2
