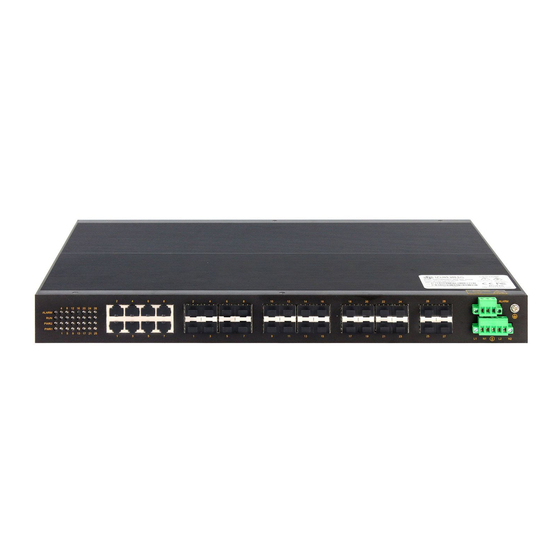

- Page 1 MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch User Manual Edition: V1.1) Wuhan Maiwe Communication Co., Ltd.
- Page 2 The trademark is owned by Wuhan Maiwe Communication Co., Ltd. Mwring is the trademark used for link redundancy and self-recovery technology, owned by Wuhan Maiwe Communication Co., Ltd. Microsoft and Windows is registered trademark owned by Microsoft. Copyright Copyright © Wuhan Maiwe Communication Co., Ltd.
- Page 3 MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch Safe Use Instruction This product performance is excellent and reliable in the designed range of use, but it’s necessary to avoid man-made damage or destroy for the equipment. Read the manual carefully and keep this manual for reference if need afterwards.
-
Page 4: Table Of Contents
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch Catalogue 1. Introduction..............- 1 - 1.1. Product Introduction..............- 1 - 1.2. System Features................- 1 - 1.2.1. High-Performance Full Gigabit Industrial Ethernet Switch... - 1 - 1.2.2. Industrial Power Supply Design............- 2 - 1.3. -
Page 5: Introduction
1.1. Product Introduction MISCOM7028GX/MISCOM8028GX is Layer 3 Full Gigabit Industrial Ethernet Switch manufactured by Wuhan Maiwe Communication Co., Ltd, which is specifically designed and developed for core layer application in industrial communication network filed. The series of switches provide a... -
Page 6: Industrial Power Supply Design
Note: MISCOM7028GX Series DON’T support function○ 1 and ○ 2 1.2.2. Industrial Power Supply Design Support redundancy dual power input: AD220 (85-264VAC/110-370VDC), single power supply, redundant power supply, flexible choice for customer. -
Page 7: Packing List
1.3. Packing List Packing list of MAIWE Brand Managed Switch is listed as below. If any item in the list is lost or damaged, please contact the distributor or MAIWE’s customer service center, they will assist you to make replacement or complement. -
Page 8: Interface Instructions
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch 2. Interface Instructions Front panel Rear panel Front panel indicator lights Console port Rear panel indicator lights Ethernet RJ45 port Gigabit SFP port Relay port Power supply port Ground screw 2.1. Indicator Lights The indicator lights of the front panel indicate the current working status of the switch. -
Page 9: Ethernet Rj45 Port
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch PWR1 ALARM LINK/ACT(1-24、X1-X4) PWR2 Green light Green light Green light Green light Green light Red light on periodically periodically flashes flashes flashes Power supply System work Link Data No alarm Alarm normal normally established transmission 2.2. - Page 10 MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch Pin Number MDI-X Signal Name MD Signal Name Receive data+(RD+) Transmit data+(TD+) Receive data-(RD-) Transmit data-(TD-) Transmit data+(TD+) Receive data+(RD+) Transmit data-(TD-) Receive data-(RD-) 4,5,7,8 Unused Unused At the time when RJ45 port is 10/100/1000Based-T, pin definition is shown in the below table.
-
Page 11: Sfp Fx Port
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch CAT. 5 straight line cable connection method CAT. 5 cross-over cable connection method Note: Cable colors definition in the picture meet EIA/TIA568B Standard. 2.3. SFP FX Port The Gigabit FX port of the switch is 1000Base-LX full-duplex single-mode/multi-mode FX port, using SFP hot-swappable device, and the type of FX port is LC. -
Page 12: Console Port
2.4. CONSOLE Port CONSOLE port is a RJ45 port, refer to below diagram. Please use MAIWE brand serial extension cable to connect with PC serial port. It is a standard 3 wire RS-232 cable. Serial port communication parameters are as follows: Baud Rate: 115200;... -
Page 13: Power Port
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch one side port is NO, the other side port is NC, the middle port is the public end, the left two terminals are NO relay, and the right two terminals are NC relay. If the switch is on normal work condition, the NO relay is closed, NC relay is open. If the dual power supplies’... -
Page 14: Ground
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch Operating Storage Power Voltage Range Humidity Temperature Temperature 85~264VAC/ AD220 5～95% -40℃～+70℃ -40℃～+85℃ 110~370VDC Attention： Important notes: Power on operation: Connect the power supply cable with terminal blocks of the equipment according to above diagram definition, then power Power off operation: Plug out the socket first, then take down the power cable. -
Page 15: Hardware Installation
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch 3. Hardware Installation 3.1. Installation Requirements The Industrial Ethernet Switch is a kind of single structure that fits rack-mounting installation. Before installing, first confirm suitable working environment for installation, including power requirements, sufficient space, being closed to other network equipment to be connected. Please confirm the following installation requirements. -
Page 16: Mainframe Installation
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch The switch should be connected to the protection ground: Grounding and laying wires will effectively suppress the effects of noise caused by electromagnetic interference. A ground connection should be made before connecting the equipment, from the ground screw to the ground surface. 3.2. -
Page 17: Laying Cables
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch 10/100/1000Based-TX. Connect the terminal equipment with straight line cable, connect the network equipment with cross-over cable. Connecting network managed port The CONSOLE port of the product can be connected to the serial port of the control computer. Connecting power After all other cables have been connected, then connect the power supply that meets the product specifications. - Page 18 MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch When laying the fiber on the tail, it is necessary to prevent the cable from being knotted, reduce the bend and avoid small bend radius. If the bend radius is too small, the link optical signal will be seriously depleted and also it will affect the quality of communication.
-
Page 19: Annex
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch 4. Annex 4.1. Technique Parameters System Indicator MISCOM7028GX/MISCOM8028GX 802.3, 802.3u, 802.3z, 802.3x, 802.1P, IEEE Standard 802.3ab Exchange Method Store and forward Backplane Bandwidth Packet Forwarding Rate 41.664 Mpps 28*1000Base-LX ports Gigabit Port 8*10/100/1000Base-T+20*1000Base-LX ports Physical interface: RJ45 with shielding, IEEE802.3 standard RJ45 port: 10/100/1000Base-T (Gigabit) TX Port Parameter... -
Page 20: Industry Standard
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch Weight: 4kg Working temperature: -40°C~+70°C Working Environment Storage temperature: -40°C~+85°C Humidity: 5%~95%(no condensation) 4.2. Industry Standard EN61000-4-2 (ESD): ±8kV(contact), ±15kV(air) EN61000-4-3 (RS): 10V/m(80-1000MHz) EN61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV EN61000-4-5(Surge): Power Port: ±4kV/DM; ±2kV/CM Data Port: ±2kV/DM;... -
Page 21: Product Selection Guide
MISCOM7028GX/MISCOM8028GX Series Industrial Ethernet Switch 4.4. Product Selection Guide Gigabit Gigabit FX Power Model Combo Port Supply Port Dual MISCOM7028GX-20GF-8GC-2AD22 redundant AD220 Dual MISCOM828GX-20GF-8GC-2AD220 redundant AD220 Note: Our company has the right to change the product model name without prior notifying users. If necessary to obtain the latest information, please consult our company market or technical support staff. - Page 22 WUHAN MAIWE COMMUNICATION CO.,LTD Add.: No.52, Liufang road, East Lake Hi-tech Development Zone,Wuhan,China Phone: 027-87170215/16 Fax: +86-027-87170217 www.maiwe.com...
