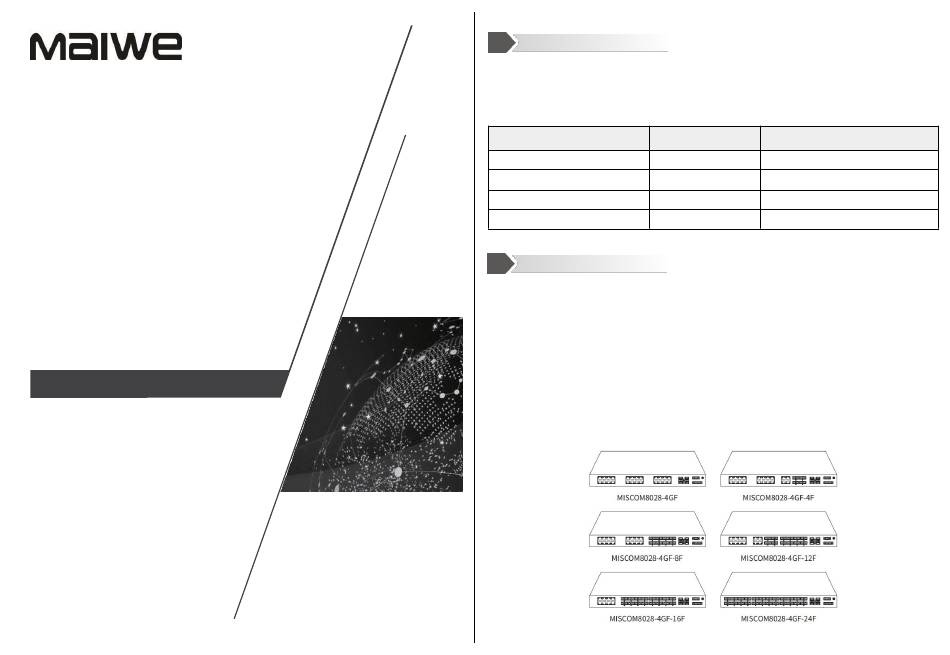

Industrial Ethernet Switch
User manual
MISCOM8028-4GF
MISCOM8028-4GF-4F
MISCOM8028-4GF-8F
MISCOM8028-4GF-12F
MISCOM8028-4GF-16F
MISCOM8028-4GF-24F
Packing list
1
The package of this switch contains the following items. If any item is found
to be missing or damaged, please contact the agent or the customer service
center of Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Console cable
2
Product description
MISCOM8028 series is L3 managed rack-mount industrial Ethernet switch.
MISCOM8028-4GF provides 28 ports (24x10/100M TX + 4 1000M FX);
MISCOM8028-4GF-4F provides 28 ports (20x10/100M TX + 4x100M FX + 4
x1000M FX); MISCOM8028-4GF-8F provides 28 ports (16x10/100M TX + 8
x100M FX + 4x1000M FX); MISCOM8028-4GF-12F provides 28 ports (12x
10/100M TX + 12x100M FX + 4 1000M FX); MISCOM8028-4GF-16F
provides 28 ports (8x10/100M TX + 16x100M FX + 4x1000M FX);
MISCOM8028-4GF-24F provides 28 ports (24x100M FX + 4 x1000M FX).
Quantity
Remarks
1PCS
1PCS
AD220 model only
1PCS
1PCS
Advertisement
Table of Contents
Related Manuals for Maiwe MISCOM8028-4GF
Summary of Contents for Maiwe MISCOM8028-4GF
- Page 1 MISCOM8028-4GF provides 28 ports (24x10/100M TX + 4 1000M FX); User manual MISCOM8028-4GF-4F provides 28 ports (20x10/100M TX + 4x100M FX + 4 x1000M FX); MISCOM8028-4GF-8F provides 28 ports (16x10/100M TX + 8 x100M FX + 4x1000M FX); MISCOM8028-4GF-12F provides 28 ports (12x 10/100M TX + 12x100M FX + 4 1000M FX);...
- Page 2 Interface description Number Pin definition Power 1 Input V1+(AC-L)/Positive(DC) Unit:mm Take MISCOM8028-4GF as a example: Power 1 Input V1-(AC-N)/Negative (DC) Grounded Power 2 Input V2+(AC-L)/Positive(DC) Power 2 Input V2-(AC-N)/Negative (DC) [Connect to the relay] This series of switches supports the relay alarm function, and the wiring terminals use 3-position 5.08mm pitch terminals.
- Page 3 [Connect the CONSOLE port] Flashing There is network activity on the port The network management port is an RJ45 port, please use the serial port No valid network connection is established on cable of our company to connect to the serial port of the PC. The interface the port communication standard is 3-wire RS232.
- Page 4 Hardware Installation Installation Precautions To prevent equipment damage or personal injury caused by improper use, observe the following precautions: During the installation process, you need to wear anti-static gloves or anti-static gloves, and power-off the switch. Please make sure that the input voltage is within the input voltage range ...
- Page 5 SFP slot 10/100Base-TX RJ45 ports 10/100M TX port Full-duplex/half-duplex adaptive, supports MDI/MDI-X adaptive 100Base-FX 100M FX port SC/ST/FC optional Power supply Consumption 35W(MAX) Standard AC85~264V (frequency: 47~63Hz) or DC110~370V Log in WEB Page AC power input (Dual power is optional) The device supports WEB management and configuration.
- Page 6 When sending the product back to Maiwe for repair, it is recommended service in time.
