Industrial Ethernet Switch
User manual

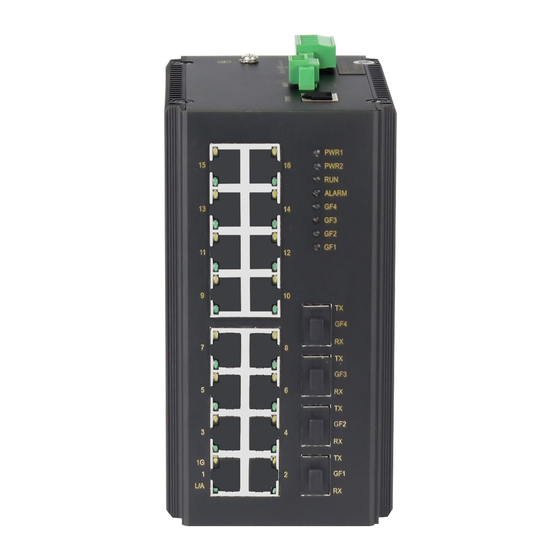

MISCOM7220G-4GF-16GT
MISCOM8220G-4GF-16GT
Packing list
The package of this switch contains the following items. If any item is found
to be missing or damaged, please contact the agent or the customer service
center of Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Console cable
Product description
MISCOM7220G/MISCOM8220G series are full Gigabit layer 2/3 managed
DIN RAIL industrial Ethernet switches. The series offers 20 Gigabit ports (16
Gigabit SFP and 4 Gigabit RJ45).
Quantity
Remarks
1PCS
AD220 model only
1PCS
1PCS
1PCS
Advertisement
Table of Contents
Related Manuals for Maiwe MISCOM7220G-4GF-16GT
Summary of Contents for Maiwe MISCOM7220G-4GF-16GT
- Page 1 Packing list The package of this switch contains the following items. If any item is found to be missing or damaged, please contact the agent or the customer service center of Maiwe for assistant. Items Quantity Remarks Industrial Ethernet Switch...
- Page 2 Interface description Unit:mm Number Pin definition Power 1 Input V1+(AC-L)/Positive(DC) Power 1 Input V1-(AC-N)/Negative (DC) Grounded Power 2 Input V2+(AC-L)/Positive(DC) Power 2 Input V2-(AC-N)/Negative (DC) The AC power supply model supports a single power input. Using 3-position 1. Indicator lights 5.
- Page 3 [Connect to the relay] This series of switches supports the relay alarm function, and the wiring terminals use 3-position 3.81mm pitch terminals. This relay is a normally open and a normally closed relay, the middle one is the common terminal, the left two terminals are normally open relays, and the right two terminals are normally closed relays.
- Page 4 1000M working state 1000M (Yellow) 10/100M working status The port has established a valid network connection Link/Act Flashing There is network activity on the port (Green) No valid network connection is established on the port Hardware Installation [Device connection] Installation Precautions Connect the network cable to the port in the correct direction.
- Page 5 the definition. Enter the user name and password of the device in the login page Click the "OK" button to log in the WEB interface of the device. Specifications MISCOM7220G-4GF-16GT MISCOM8220G-4GF16GT Switch properties Bandwidth 128G 12Mbit Cache size MAC table 1.
- Page 6 IEC61000-4-5(Surge), Level 4 guaranteed for one year. ※Ethernet ports support 6KV lightning When sending the product back to Maiwe for repair, it is recommended protection that the customer use the original packaging or the packaging with the IEC61000-4- 4(EFT), Level 4...
