- Page 1 MIEN6208 Series Management Industrial Ethernet Switch User Manual Edition: V3.1) Wuhan Maiwe Communication Co., Ltd.
- Page 2 Copyright Copyright © Wuhan Maiwe Communication Co., Ltd. Clarification The user manual is applicable to MIEN6208 series of din-rail managed industrial ethernet switch. Please read the following license agreement carefully before using this manual. The products described in this manual can be used only if you agree on the following license agreement.
- Page 3 MIEN6208 Series Management Industrial Ethernet Switch Revision history: Version Date Reason V1.0 2016.09 Create files V2.0 2016.10 Product update V3.0 2017.05 Product update V3.1 2018.07 Files update V1.0 2016.09 Create files...
- Page 4 MIEN6208 Series Management Industrial Ethernet Switch Safe Use Instruction This product performance is excellent and reliable in the designed range of use, but it’s necessary to avoid man-made damage or destroy for the equipment. Read the manual carefully and keep this manual for reference if need afterwards.
-
Page 5: Table Of Contents
MIEN6208 Series Management Industrial Ethernet Switch Catalogue 1. Introduction..............- 1 - 1.1. Product description..............- 1 - 1.2. Product characteristic..............- 1 - 1.2.1. Industrial network performance............- 1 - 1.2.2. Industrial application design............. - 2 - 1.2.3. Remote management configuration..........- 2 - 1.2.4. -
Page 6: Introduction

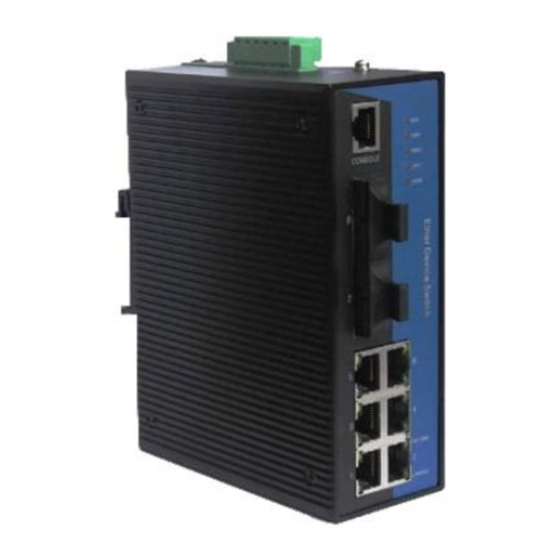

MIEN6208 Series Management Industrial Ethernet Switch 1. Introduction 1.1. Product description Wuhan Maiwe industrial ethernet switch is specially designed for industrial high speed communications network. The management switch provide the advanced industrial ethernet solution,which makes the industrial communications more fluent,dependable and fast. -
Page 7: Industrial Application Design
MIEN6208 Series Management Industrial Ethernet Switch Store and forward mechanism, backplane bandwidth is 8.8Gbps Fast port 10/100M adaptive, full / half duplex, MDI / MDIX adaptive mode Full-duplex flow control and half duplex back pressure flow control Port VLAN and IEEE 802.1Q VLAN QoS, IEEE802.1P and ToS / DiffServe support, improve the... -
Page 8: Packing List
MIEN6208 Series Management Industrial Ethernet Switch alarm equipment 1.3. Packing List Item MIEN6208 Industrial Ethernet switch User manual RS232 cable Certificate card 1.4. Products Selections Available models Ports 100M fiber port (SC/ST/FC) Power 100M Single range Standard models copper Single... - Page 9 MIEN6208 Series Management Industrial Ethernet Switch MIEN6208-4M Note: Each model can be powered by the above one types of power supplies. - 4 -...
-
Page 10: Technique Parameters
MIEN6208 Series Management Industrial Ethernet Switch 2. Technique parameters: Technical specifications IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base- IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab Ethernet Standard IEEE802.1D-SpanningTree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control Switch properties... - Page 11 MIEN6208 Series Management Industrial Ethernet Switch Power LED: PWR1/PWR2 Power Requirements DC110~220V(DC110~370V range) or AC100~240V(AC85~264V Power input range) DC12V/DC24V/DC48V available Full-load consumption <8W Overload protection support Inversed protection support Redundancy protection support Working Environment Operating Temperature -40°C~85°C Storage temperature -40°C~85°C...
-
Page 12: Hardware Installation & Test
3. Hardware Installation & Test 3.1. Hardware structure 3.1.1. System structure The chassis of the MIEN6208 series switch is a DIN rail structure, the whole machine adopts a six-sided fully enclosed structure, and its overall dimensions(Not including DIN rail size): 144mm×54mm×110mm. - Page 13 MIEN6208 Series Management Industrial Ethernet Switch MIEN6208: 8 copper ports. The side panel of MIEN6208 series switches is equipped with a 6-position lock terminal with 5.08mm pitch as below: Power input The DC power supply models of MIEN6208 series switches support DC12V-44V power supply by default, and users can DC48V, support dual power input, the two power sources are mutually backup.
-
Page 14: Hardware Installation
MIEN6208 Series Management Industrial Ethernet Switch Serial port network management port (CONSOLE) The network management port is an RJ45 interface. Please use the serial port extension cable provided by our company to connect to the PC’s serial port. The letter standard is 3-wire RS-232. -
Page 15: Cable Connection
MIEN6208 Series Management Industrial Ethernet Switch Checking DIN-Rail is fixed firm, DIN-rail is installed on other equipment, whether there is enough space . Checking DIN-Rail whether suitable for power input. Please selected the correct position. As below behind picture shows: Insert DIN-Rail into DIN-Rail slot and as schematics 2-1 shows turning... -
Page 16: Testing Guide
MIEN6208 Series Management Industrial Ethernet Switch When use fiber cable port, remove SC/FC/ST port cover; When it finish work, please put the plastic cover to protect the fiber optic head, keep clean. Check the fiber optic cable head whether it clean or not. If it not clean, will effect port and communication quality. -
Page 17: Fiber Ports Testing
MIEN6208 Series Management Industrial Ethernet Switch test diagram takes the 8-port product of the MIEN6208 series switch as an example. 3.3.3. Fiber ports testing The device with the fiber interface is composed of the fiber chain network shown in Figure 3-5 (TX is connected to another RX, and RX is connected to another TX). - Page 18 MIEN6208 Series Management Industrial Ethernet Switch - 13 -...
-
Page 19: Maintenance And Service
MIEN6208 Series Management Industrial Ethernet Switch 4. Maintenance and Service 5 years warranty from the date of shipment, if there is any failure or functional product fails within the warranty time, repair or replace is free. However, these commitments do not include improper use, accidents, natural disasters, improper operation or improper installation caused the damage. - Page 20 WUHAN MAIWE COMMUNICATION CO.,LTD Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52, Liufang road, East Lake Hi-tech Development Zone,Wuhan,China Phone: 027-87170215/16 Fax: +86-027-87170217 www.maiwe.com...
