- Page 1 MIEN1203/MIEN2205 Industrial Ethernet Switch User Manual Edition: V3.0) Wuhan Maiwe Communication Co., Ltd.
- Page 2 Copyright Copyright © Wuhan Maiwe Communication Co., Ltd. Clarification The user manual is applicable to MIEN1203/MIEN2205 industrial ethernet switch. Please read the following license agreement carefully before using this manual. The products described in this manual can be used only if you agree on the following license agreement.
- Page 3 MIEN1203/MIEN2205 Industrial Ethernet Switch Safe Use Instruction This product performance is excellent and reliable in the designed range of use, but it’s necessary to avoid man-made damage or destroy for the equipment. Read the manual carefully and keep this manual for reference if need afterwards.
-
Page 4: Table Of Contents
1.3. Packing list..................- 1 - 2. Hardware structure..........- 3 - 2.1. Case....................- 3 - 2.2. MIEN1203 front panel..............- 3 - 2.3. MIEN2205 front panel..............- 3 - 2.4. MIEN2205-S/M front panel............- 4 - 2.5. LED indicator................- 4 - 2.6. -
Page 5: Product Description
The MIEN1203/MIEN2205 series packaging contains the following items. If any of the following items is lost or destroyed, please contact the agent or the customer service center of Wuhan Maiwe Communication Co., Ltd., and they will assist you in replacing or supplementing. - Page 6 MIEN1203/MIEN2205 Industrial Ethernet Switch Item MIEN1203/MIEN2205 User manual Product Certificate and Warranty Card - 2 -...
-
Page 7: Hardware Structure

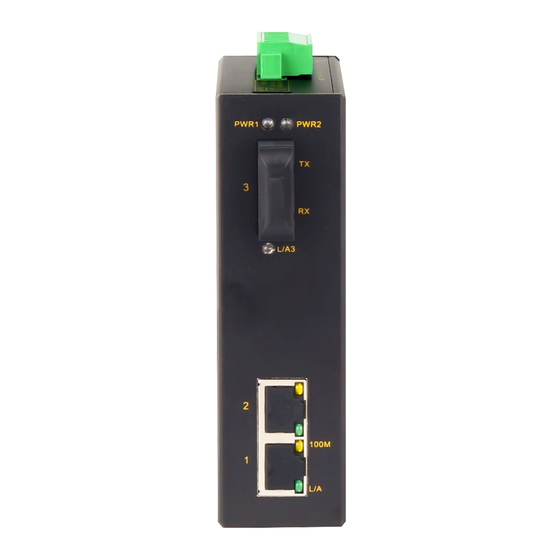

(not including DIN rail dimensions) are: 118mm×35mm×86mm (height×width×depth). 2.2. MIEN1203 front panel The front panel of MIEN1203 integrates one optical fiber interface and two 10Base-T/100Base-TX Ethernet RJ45 ports. Port 3 is an optical fiber interface, TX is optical transmission, and RX is optical reception. -
Page 8: Mien2205-S/M Front Panel
On the left is the fiber interface, TX is optical transmission, and RX is optical reception. 2.5. LED indicator The LED indicator on the front panel of MIEN1203/ MIEN2205/ MIEN2205-S/M can display the system operation and port status, which is convenient for finding and solving the fault. -
Page 9: Power Input Terminal
The port has not established a valid network connection 2.6. Power input terminal MIEN1203/ MIEN2205/ MIEN2205-S/M use DC12~48V power supply or DC48V. Use 5.08mm pitch 5-wire terminal to connect the power input. The diameter of the power cord is less than 1.5mm. If using AC220V power supply, connect V1+ to live wire L, and V1- to neutral wire N, and pay attention to safety to prevent electric shock. -
Page 10: Hardware Installation
For most industrial applications, 35mm standard DIN rail installation is very convenient. When you take out the device from the packing box, the rear panel of MIEN1203/MIEN2205/MIE N2205-S/M should have a fixed DIN rail connector. If the device needs to be clamped on the DIN rail, the installation of the DIN rail should be checked before installation. -
Page 11: Fiber Optic Connection
MIEN1203/MIEN2205 Industrial Ethernet Switch MIEN1203/ MIEN2205/ MIEN2205-S/M provides the terminal equipment 10Base-T/ 100Base-TX Ethernet RJ45 interface, which uses a straight-chain network cable to connect to the terminal equipment, and a crossover network cable to connect to the network equipment. Connect the power supply MIEN1203/MIEN2205/MIEN2205-S/M devices use power according to the instructions on the product label. -
Page 12: Appendix
MIEN1203/MIEN2205 Industrial Ethernet Switch 4. Appendix 4.1. Technical index System indicators MIEN1203/ MIEN2205/ MIEN2205-S/M MIEN1203-S/M: 2 10Base-T/100Base-TX Number of RJ45 MIEN2205: 5 10Base-T/100Base-TX ports MIEN2205-S/M: 4 10Base-T/100Base-TX Number of fiber MIEN1203-S/M: 1 100Base-FX ports MIEN2205-S/M: 1 100Base-FX Support standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x... -
Page 13: Product Model
AC/DC220V power supply according to actual conditions. AC and DC universal power supply, DC110/220V, input voltage range 110~370VDC; AC110/220V, input voltage range 85~264VAC, 50/60Hz. The optical fiber interface of MIEN1203/MIEN2205-S/M can be customized for single-mode/multi-mode and SC/ST/FC interfaces. The standard configuration is SC single-mode optical interface. - Page 14 WUHAN MAIWE COMMUNICATION CO.,LTD Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52, Liufang road, East Lake Hi-tech Development Zone,Wuhan,China Phone: 027-87170215/16 Fax: +86-027-87170217 www.maiwe.com...
