Maiwe MIEN2205 User Manual
Industrial ethernet switch
Hide thumbs
Also See for MIEN2205:
- User manual (18 pages) ,
- User manual (14 pages) ,
- User manual (5 pages)
Advertisement
Industrial Ethernet Switch
User manual
MIEN2205
Packing list
1
The package of this switch contains the following items. If any item is found to be
missing or damaged, please contact the agent or the customer service center of
Maiwe for assistant.
Items
Industrial Ethernet Switch
User Manual
2
Product description

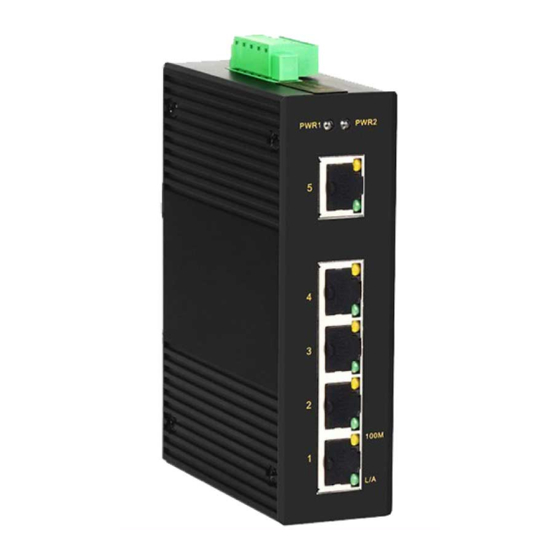

This series switches are unmanaged din-rail industrial Ethernet switch.
MIEN2205 supports 100M Ethernet ports (5*100M copper ports);
Quantity
Remarks
1PCS
1PCS
MIEN2205
