- Page 1 MISCOM7212GP Series Industrial Gigabit POE Switch User Manual Edition: V1.0) Wuhan Maiwe Communication Co., Ltd.
- Page 2 Copyright Copyright © Wuhan Maiwe Communication Co., Ltd. Clarification The user manual is applicable to MISCOM7212GP series of industrial managed power over ethernet switch. Please read the following license agreement carefully before using this manual. The products described in this manual can be used only if you agree on the following license agreement.
- Page 3 MISCOM7212GP Series Industrial Gigabit POE Switch Safe Use Instruction This product performance is excellent and reliable in the designed range of use, but it’s necessary to avoid man-made damage or destroy for the equipment. Read the manual carefully and keep this manual for reference if need afterwards.
-
Page 4: Table Of Contents
MISCOM7212GP Series Industrial Gigabit POE Switch Catalogue 1. Introduction..............- 1 - 1.1. Product Description..............- 1 - 1.2. Product Characteristic..............- 1 - 1.2.1. Industrial Network Performance............- 1 - 1.2.2. Industrial Power Design..............- 2 - 1.2.3. Rugged Appearance Design............- 2 - 1.3. -
Page 5: Introduction
MISCOM7212GP Series Industrial Gigabit POE Switch 1. Introduction 1.1. Product Description The MISCOM7212GP series industrial POE switch is developed for the high speed industry ethernet communications .It makes industrial communication more fluent, more stable and more fast. This switch can support both hot plugging and complicated web managed style. -
Page 6: Industrial Power Design
MISCOM7212GP Series Industrial Gigabit POE Switch 4M cache satisfy the smooth transmission of 4K video stream Support 16K MAC address table Support the improved QoS strategy and various queue scheduling algorithms Support SNMP,Telnet network management protocols Support the command line interfaces(CLI) to access switches through super terminals Support hardware ACL function and provide ACL hardware filtering... -
Page 7: Hardware Function

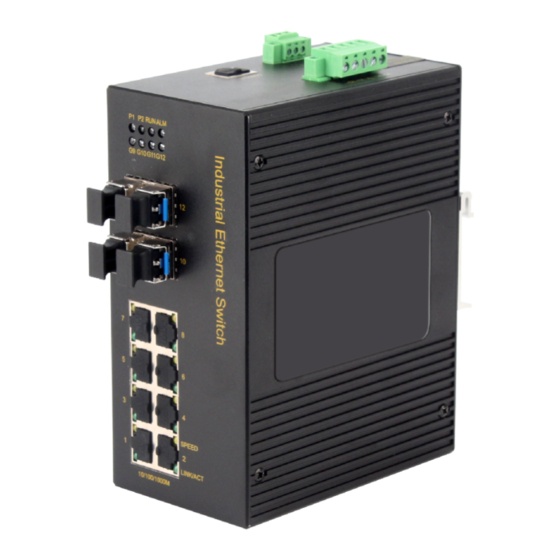

MISCOM7212GP Series Industrial Gigabit POE Switch 2. Hardware function 2.1. Hardware Structure Panel layout 1.P1/P2 Power input 2.ground screw 3.relay output terminals 4.CONSOLE port 5.indicator lights 6.1000Base-LX SFP slot 7.10/100/1000Base-T RJ45 copper ports 8.DIN-Rail mounting - 3 -... -
Page 8: Power Input Terminals
MISCOM7212GP Series Industrial Gigabit POE Switch 2.1.1. Power Input Terminals This switch has a 5-ways terminal block on the top panel for the redundant power supply. Input voltage range: DC48 ~ 57V important hint: Power-on operation: First connect the power cord to the power terminal of the device according to the definition shown in the figure above, and then power on;... -
Page 9: Serial Network Management Interface (Console)
MISCOM7212GP Series Industrial Gigabit POE Switch 2.1.4. Serial Network Management Interface (CONSOLE) Network management port is a RJ45 interface, please use our serial extension cable to connect the PC's COM port. Interface communication standard 3-wire RS-232. Serial communication parameters are as follows:... -
Page 10: Gigabit Fiber Sfp Interfaces
MISCOM7212GP Series Industrial Gigabit POE Switch POE power work POE port power not blink (1~8) enough POE power not work 2.1.6. Gigabit Fiber SFP Interfaces This product has two full-duplex 1000Base-LX single mode/ multi-mode fiber interface, using hot-swappable SFP during the optical interface using LC connectors. -
Page 11: Ethernet Rj45 Port
MISCOM7212GP Series Industrial Gigabit POE Switch After the SFP module hot-plug Heat pull handle when the position 2.1.7. Ethernet RJ45 Port This product has multiple RJ45 10/100/1000Base-T Ethernet ports. Each RJ45 port with auto-negotiation, auto MDI / MDI-X connection. Internet can be used straight line/ cross-over cable to connect the switch to terminal equipment, servers, hubs or other switches. -
Page 12: Din-Rail Installation
MISCOM7212GP Series Industrial Gigabit POE Switch place, fiber optic connectors is appropriate. Avoid direct sunlight and away from heat sources or areas with strong electromagnetic interference. Standard 35mm DIN-rail installation. Check for suitable cables and connectors. Attention： Before installing or connecting Ethernet switch please make ensure that disconnect the power line. -
Page 13: Cable Connection
MISCOM7212GP Series Industrial Gigabit POE Switch 2.2.3. Cable Connection After install Ethernet switch , please correct install cable. Cable installation please following behind notice: Equipment port connection This series provided 10/100Base-TX RJ45 interface port, use the crossover cable direct connect with terminal equipment , use cross wire connect network equipment . -
Page 14: Performance Specifications
MISCOM7212GP Series Industrial Gigabit POE Switch straight turns; The cable should be straight in the trough, and should not go beyond the trough to block other entry and exit holes. The cable should be tied and fixed at the cable exit or the cable bend;... - Page 15 MISCOM7212GP Series Industrial Gigabit POE Switch power >240W） Optical power：>-12dBm(single mode)>-17dBm(multi-mode) Sensitivity：<-38dBm(single mode) <-35dBm(multi-mode) Wavelength：1310nm(single mode) Optic port parameter 1550nm(single mode) 1310 nm(multi-mode) Typical Distance：<20km(single mode),<2Km(multi-mode) connector：LC Transport rate：1.25Gbps Input voltage：48~57VDC Power parameter Input power：15W（MAX）without POE Overcurrent protection：inside Dimension(HWD)： 156mm×72mm×120mm Installation method：DIN rail...
-
Page 16: Testing Guide
MISCOM7212GP Series Industrial Gigabit POE Switch structure 2.4. Testing Guide 2.4.1. Self-examination When connection equipment, the front panel power supply indicator light will blinking once, it means working well. After a while Power supply indicator light is on. Run indicator light (system status LED) will blink interval 1s. -
Page 17: Network Construction
MISCOM7212GP Series Industrial Gigabit POE Switch do not correctly Ping packet loss. While the corresponding optical port Link / Act LED should be lit. Two optical ports that the hardware is tested working properly. Another way to test using the same optical port. -
Page 18: Two Group Ring Network
MISCOM7212GP Series Industrial Gigabit POE Switch 2.5.4. Two Group Ring Network 2.5.5. Dual Ring Network 2.5.6. Two Group Dual Ring Network - 14 -... -
Page 19: Maintenance And Service
MISCOM7212GP Series Industrial Gigabit POE Switch 3. Maintenance and Service Since the date of product shipment, we provide five years of product warranty. Within the warranty, if there is any failure or functional product fails, it will repair or replace free of charge for users of the product. However, these commitments do not cover improper use, accidents, natural disasters, improper operation or improper installation caused the damage. - Page 20 WUHAN MAIWE COMMUNICATION CO.,LTD Add.:Building 2, Area E, Phase ii, Optical valley core center, No.52, Liufang road, East Lake Hi-tech Development Zone,Wuhan,China Phone: 027-87170215/16 Fax: +86-027-87170217 www.maiwe.com...
