Industrial Ethernet Switch
User manual
MISCOM8028GX-4XGF-16GF-8GC
MISCOM8028G-4XGF-8GC-16GT
MISCOM8028GX-20GF-8GC
MISCOM8028G-4GF-8GC-16GT
Packing list
1
The package of this switch contains the following items. If any item is found
to be missing or damaged, please contact the agent or the customer service
center of Maiwe for assistant.
Items
Industrial Ethernet Switch
Power cord
User Manual
Console cable
2
Product description

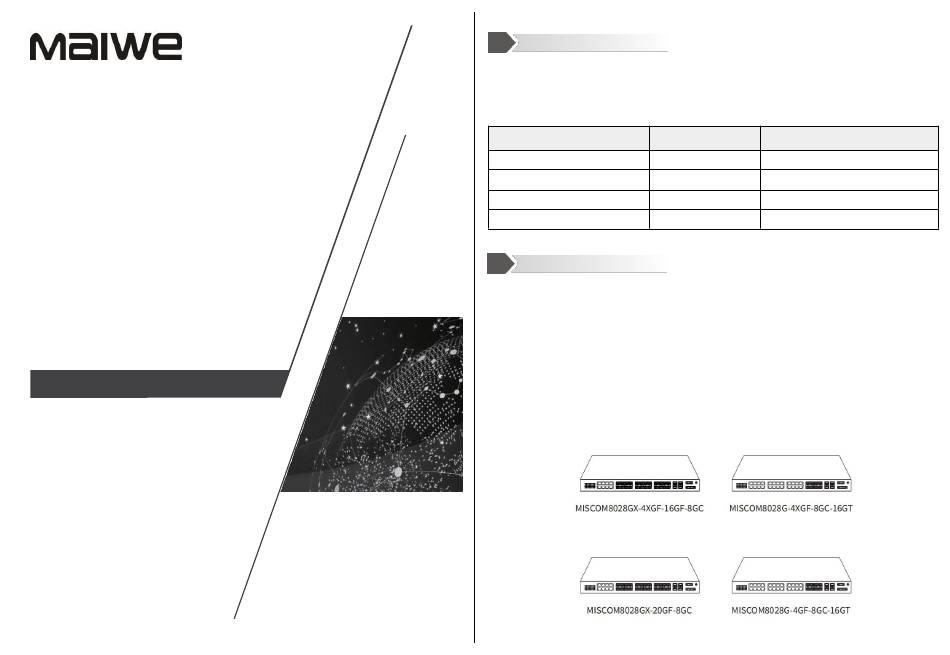

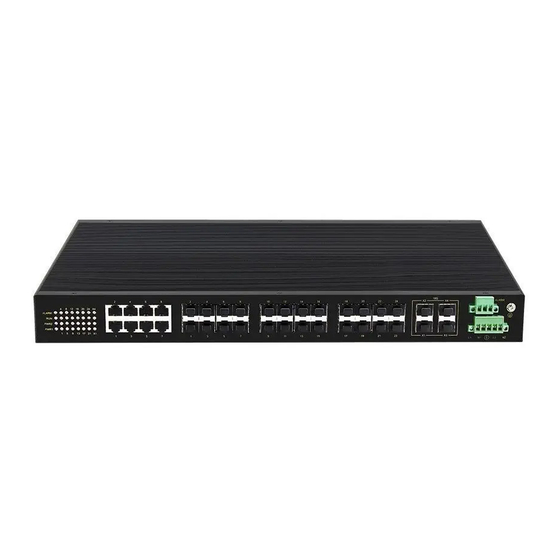

This series is L3 aggregation managed rack-mount industrial Ethernet switch.
MISCOM8028GX-4XGF-16GF-8GC provides 28 ports(4x10G SFP ports+16
gigabit SFP ports+8 gigabit Combo ports),MISCOM8028G-4GF-8GC-16GT
provides 28 ports(4x10G SFP ports+8 Gigabit Combo ports+16 Gigabit RJ45
ports), MISCOM8028GX-20GF-8GC provides 28 ports (20 Gigabit SFP ports
and 8 Gigabit combo ports); MISCOM8028G-4GF-8GC-16GT provides 28
ports interfaces (4 Gigabit SFP ports+8 Gigabit combo ports+16 Gigabit RJ45
ports).
Quantity
Remarks
1PCS
1PCS
AD220 model only
1PCS
1PCS
