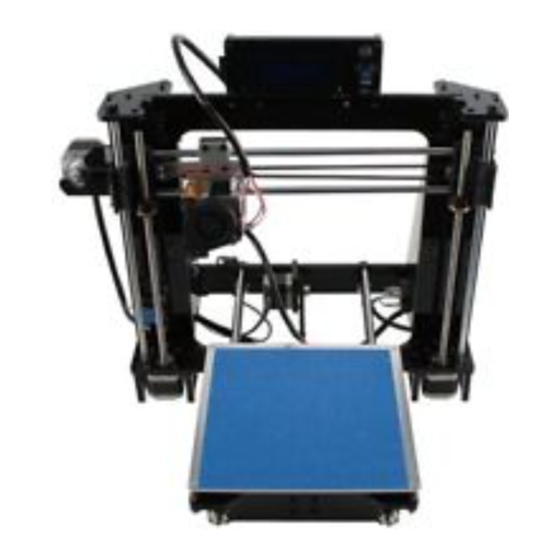

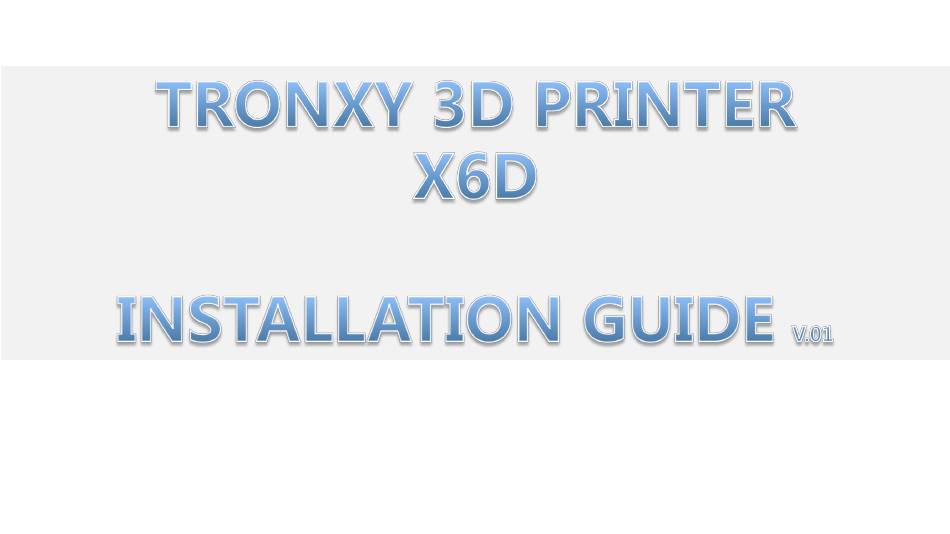

TRONXY X6D Installation Manual
  1. Manuals
  2. Brands
  3. TRONXY Manuals
  4. 3D Printers
  5. X6D
  6. Installation manual

TRONXY X6D Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the X6D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRONXY X6D

Summary of Contents for TRONXY X6D

  • Page 2 Classification Of Screws M3*20mm screws M2*8mm black screws M3 nuts 60pcs 58pcs 2pcs M3*30mm screws M3*10mm screws M8 nuts 12pcs 7pcs 17pcs M8 Cushion ring M3*14mm screws Plastic Pillars 4pcs 12pcs 4pcs...
  • Page 3 Classification Of Screws M4*15mm screws M2*18mm screws&nuts M3*30mm screws 4pcs 12pcs 4pcs M3*20mm screws Wing nuts*4 Compression springs*4 4pcs...
  • Page 4 Step 1 Assemble Y-axis Motor  Fit the GT2-16 pulley on the motor, Locking with M3*2mm jackscrew.  As the picture, Put Y-axis motor on <Y-axis motor support> , locking with Four M3*10mm screws. GT2-16 pulley Y-axis motor M3*2mm jackscrew Y-axis motor support M3*10mm...
  • Page 5 Step 2 Assemble Y-axis Limit switch  Put the Y-axis limit switch and the holder together ,locking with two M2*18mm screws & nuts. As picture M2*18mm screws Y-axis limit switch Y-axis limit switch holder (Acrylic) M2 nuts...
  • Page 6 Step 3 Assemble Base Frame Holder_Back Sliding rod Restriction*2  As the picture, put two of the Sliding rod Restriction in front of the base frame holder (back). locking with two M3*20mm screws & nuts. M3*20mm screws  Put the limit switch and holder assembly on the base frame holder, locking with one M3*20mm screw &...
  • Page 7 Step 4 Assemble Base Frame Holder_Front  As the picture, put two of the Sliding rod Restriction in front of the base frame holder _front. locking with two M3*20mm Round head Base Frame screws & nuts. Holder_Front Y-axis belt pulley ...
  • Page 8 Step 5 Assemble Extruder M2*8mm X-axis limit U-Metal plate screws swith  Install 3pcs Bearings to the U-Metal Plate, Locking with 12pcs M4*8mm screws.  Put Motor& Hotend module and U-Metal plate together , locking with 2pcs M3*10mm screws . Motor &...
  • Page 9 Step 6 Assemble Z-axis motor coupling  Put two Z-axis motor support(side) in two sides of the motor, Cover the Z-axis motor Z-axis motor support(top) on the top, locking with support(top) M3*20mm screws & nuts.  The cable of Z-axis motor is back of the Z-axis motor support.
  • Page 10 Step 7 Assemble Side plate  As the picture, Put the two Side plate on the Side plate left and right side of the Framework, locking with six M3*20mm screws & nuts. Framework M3*20mm screws...
  • Page 11 Step 8 Install Base frame holder_Back  Put the Base frame holder_back back of Side plate, locking with four M3*20mm screw Base frame holder_back M3*20mm screws*4...

  • Page 12: Step 9 Assemble Z-Axis

    Step 9 Assemble Z-axis  As the picture, Put the two Z-axis motors assembly on the left and right side of the Framework, locking with three M3*20mm screws & nuts. Z-axis motor assembly M3*20mm screws The hole is on the left Framework M3 nuts The hole is on the right...
  • Page 13 Step 10 Assemble Top plate & Junction Plate M3*20mm screws  Put the two Junction Plate on the top of the Side plate ,locking with four M3*20 screws & nuts. Junction Plate  Put two sliding rod restriction on the top of left and right sides.
  • Page 14 Step 11 Install Base Frame Holder_Front  Through the Frame Holder_Front & Back by two M8*400mm screw arbors, locking with twelve M8 Nuts & cushion ring. M8*400mm screw arbors M8 nuts Base frame holder_front M8 cushion ring...
  • Page 15 Step 12 Assemble Bed frame  Place three bearings under the bed frame, locking with twelve M4*15 screws. Bearing*3 M4*15mm screws *12...
  • Page 16 Step 13 Assemble Bed frame  Through the bed frame on the base by two of M8*380mm Sliding rod. Fix both end by Sliding rod restriction  Tighten one end of the timing belt to the bed frame using a Sliding rod zip-ties.
  • Page 17 Step 14 Instal X-axis Motor & Pulley mount  Put X-axis motor on X-axis motor mount. Locking with three M3*10mm screws. X-axis Motor Sliding rod  Through the X-axis motor mount & pulley restriction mount by M8*350mm sliding rod & M8*315mm screw arbor.
  • Page 18 Step 15 Assemble Heatbed  Place the MK3 heatbed on the bed frame use 4pcs springs between them, and then through 4pcs M3*30mm screws, top 4pcs wing nuts under the bed frame. MK3 Heatbed M3*30mm screws *4 Springs*4 Wing nut*4...

  • Page 19: Step 16 Assemble X-Axis

    Step 16 Assemble X-axis M8*420mm Extruder  Through the X-axis motor mount & sliding rod assembly Pulley mount and Extruder assembly using two M8*420mm sliding rods, as the picture. X-axis motor X-axis pulley mount mount...
  • Page 20 Step 17 Instal X-axis Timing Belt  Tighten one end of the Timing Belt to the Belt hole with Zip-ties. The other end through the X-axis pulley & motor , then X-axis timing belt tighten another end of the belt to the Belt hole with Zip-ties .
  • Page 21 Step 18 Install LCD display LCD display assembly  Put the LCD display on the top of the Framework, M3*20mm locking with two M3*25mm screws &nuts screws Framework...

  • Page 22: Step 19 Install Power Supply

    Step 19 Install Power supply  Put Power supply on the right of the side plate , locking with three M3*14mm screws and nuts. Side plate Power supply M3*14mm screw...
  • Page 23 Step 20 Install PCBA Control Board  Install Control Board as picture , locking with Four M3*30mm screws + 4pcs Plastic pillars + 4pcs M3 nuts Side plate M3 Nuts*8 Plastic Pillars*4 Control Board M3*30m Screws *4...
  • Page 24 Step 21 Install Z-axis Limit switch  Assemble Z-axis limit switch with the holder using 2pcs M2*10mm screws & Nuts, as the picture below  Place the Z-axis limit switch to the Framework, Locking with two M3*20mm screws and nuts. Z-axis limit switch M3*20mm...

  • Page 25: Step 22 Control Board Wiring Diagram

    Step 22 Control Board Wiring Diagram  The method of connecting wire is as picture !NOTE!: The wires connected to POWER SUPPLY and HETBED must be AWG14 or thicker one.
  • Page 26 Step 23 AC Power Connector Wiring Diagram  Connect Power cable as the picture (Right) Note: There are different voltages in different country. Please select the appropriate voltage by switch before power on. As the picture below.
  • Page 27 Step 24 Assemble Filament Feeder  Separately put two Plastic Pipe holder on two Filament support frame, locking with Plastic Pipe four M3*20mm head screws & nuts.  Connect the two Filament support frames with two Fixed links , locking with four M3*20mm screws &...

  • Page 28: Installation Finished

    Installation Finished...
