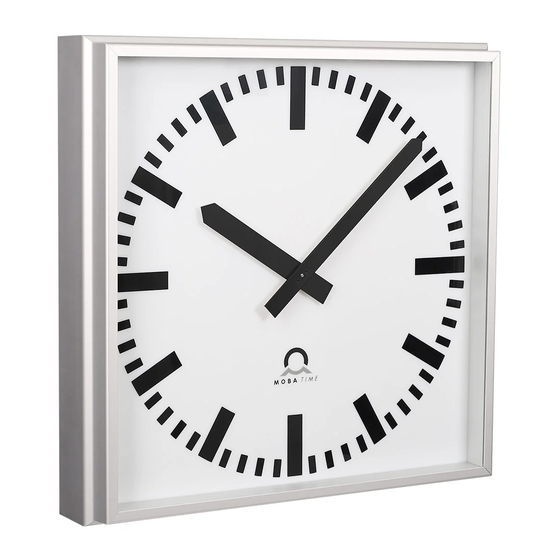

Mobatime PROFILINE QUAD Mounting Manual

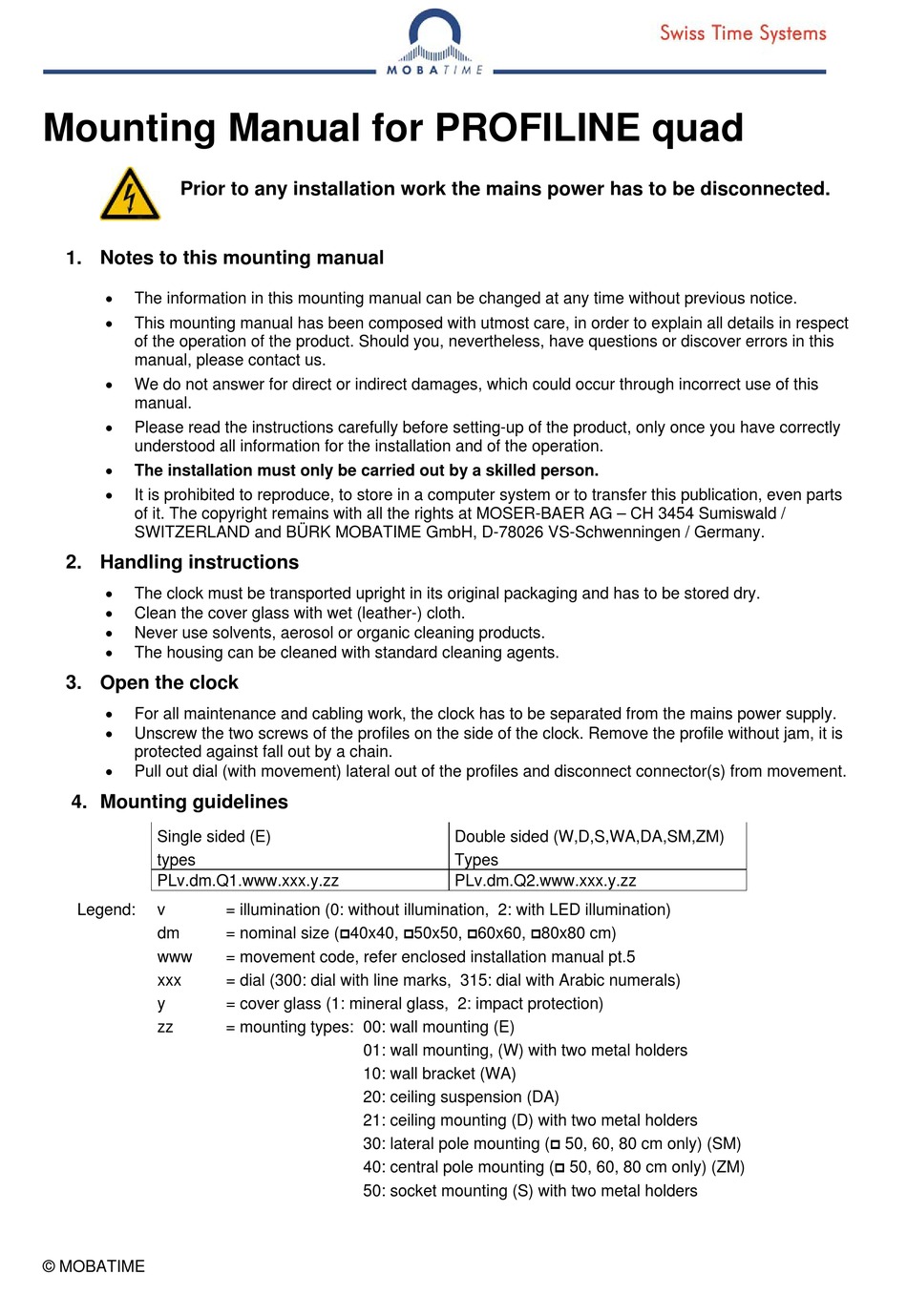

Mounting Manual for PROFILINE quad
Prior to any installation work the mains power has to be disconnected.

1. Notes to this mounting manual


The information in this mounting manual can be changed at any time without previous notice.

This mounting manual has been composed with utmost care, in order to explain all details in respect
of the operation of the product. Should you, nevertheless, have questions or discover errors in this
manual, please contact us.

We do not answer for direct or indirect damages, which could occur through incorrect use of this
manual.

Please read the instructions carefully before setting-up of the product, only once you have correctly
understood all information for the installation and of the operation.

The installation must only be carried out by a skilled person.

It is prohibited to reproduce, to store in a computer system or to transfer this publication, even parts
of it. The copyright remains with all the rights at MOSER-BAER AG – CH 3454 Sumiswald /
SWITZERLAND and BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen / Germany.

2. Handling instructions


The clock must be transported upright in its original packaging and has to be stored dry.

Clean the cover glass with wet (leather-) cloth.

Never use solvents, aerosol or organic cleaning products.

The housing can be cleaned with standard cleaning agents.

3. Open the clock


For all maintenance and cabling work, the clock has to be separated from the mains power supply.

Unscrew the two screws of the profiles on the side of the clock. Remove the profile without jam, it is
protected against fall out by a chain.

Pull out dial (with movement) lateral out of the profiles and disconnect connector(s) from movement.

4. Mounting guidelines

Single sided (E)
types
PLv.dm.Q1.www.xxx.y.zz
Legend: v
dm
www
xxx
y
zz
© MOBATIME
= illumination (0: without illumination, 2: with LED illumination)
= nominal size ( 40x40,

= movement code, refer enclosed installation manual pt.5
= dial (300: dial with line marks, 315: dial with Arabic numerals)
= cover glass (1: mineral glass, 2: impact protection)
= mounting types: 00: wall mounting (E)
01: wall mounting, (W) with two metal holders
10: wall bracket (WA)
20: ceiling suspension (DA)
21: ceiling mounting (D) with two metal holders
30: lateral pole mounting (
40: central pole mounting (
50: socket mounting (S) with two metal holders
Double sided (W,D,S,WA,DA,SM,ZM)
Types
PLv.dm.Q2.www.xxx.y.zz
50x50, 60x60, 80x80 cm)
  
50, 60, 80 cm only) (SM)

50, 60, 80 cm only) (ZM)

